XCAM0720PHA C-mount HDMI CMOS Camera

XCAM0720PHA

superior performance, HDMI

Features


  • Through standard HDMI interface to stream the video to displayer or HDTV
  • Aptina CMOS sensor
  • Easy connecting to other equipment on the production line with the C-mount interface
  • High-resolution and high frame rate, perfect color reproduction, highly integrated and compact, low failure rate and stable performance
  • 1280 × 720 (720P) resolutions to match the current high-definition displayer on the market
  • Supporting various OSD cursors which can be toggled On/Off (functions shift as users press the button). The OSDs including: scale, double horizontal line, double vertical line, double cross line, Tri-cross line
  • Function buttons including automatic white balance and exposure on/off (AEWB), saving images to SD card (SAVE), video stream and freeze on/off (FREEZE), remote image snapshot controller to reduce the vibration blur (REMOTE)
  • Meet various applications and can be widely used in industrial inspection, education and research, materials analysis, precision measurement, medical analyses etc

Tags: CMOS CamerasC-mount CamerasHDMI Cameras

Request a Quote?


Get Quote Live chat Email Phone

Aptina CMOS
Standard HDMI interface
C-mount
1280 × 720 (720P)
remote image snapshot controller

XCAM0720PHAXCAM0720PHA's Back Panel

XCAM0720PHA and its Back Panel

The XCAM0720PHA light indicator flashes about 15s after the power on. Then the XCAM0720PHA will load software, after finish loading, the system begins to work. Auto exposure and white balance are the default state now.

  • Freeze button: Toggle between the video stream mode/freeze mode(Default is video stream)
  • AEWB button: Toggle auto exposure and white balance on/off (Default is on)
  • SAVE button: Saving the current screen to the image SD card, the compression format is JPEG with a resolution of 1280x720, users can press the button or click the remote controller button to save picture

  • CURSOR button: Toggle the OSD cursor on/off (default is off).Crosshair style including: scale, double horizontal line, double vertical line, double cross line, Tri-factor cross line. Functions shift as user press the button

ScaleDefault is off

Scale Default is off

ScaleTwo Horizontal Lines

Scale Two horizontal lines

Two Vertical LinesDouble Cross Line

Two vertical lines Double cross line

Tri-factor Cross Line

Tri-factor cross line

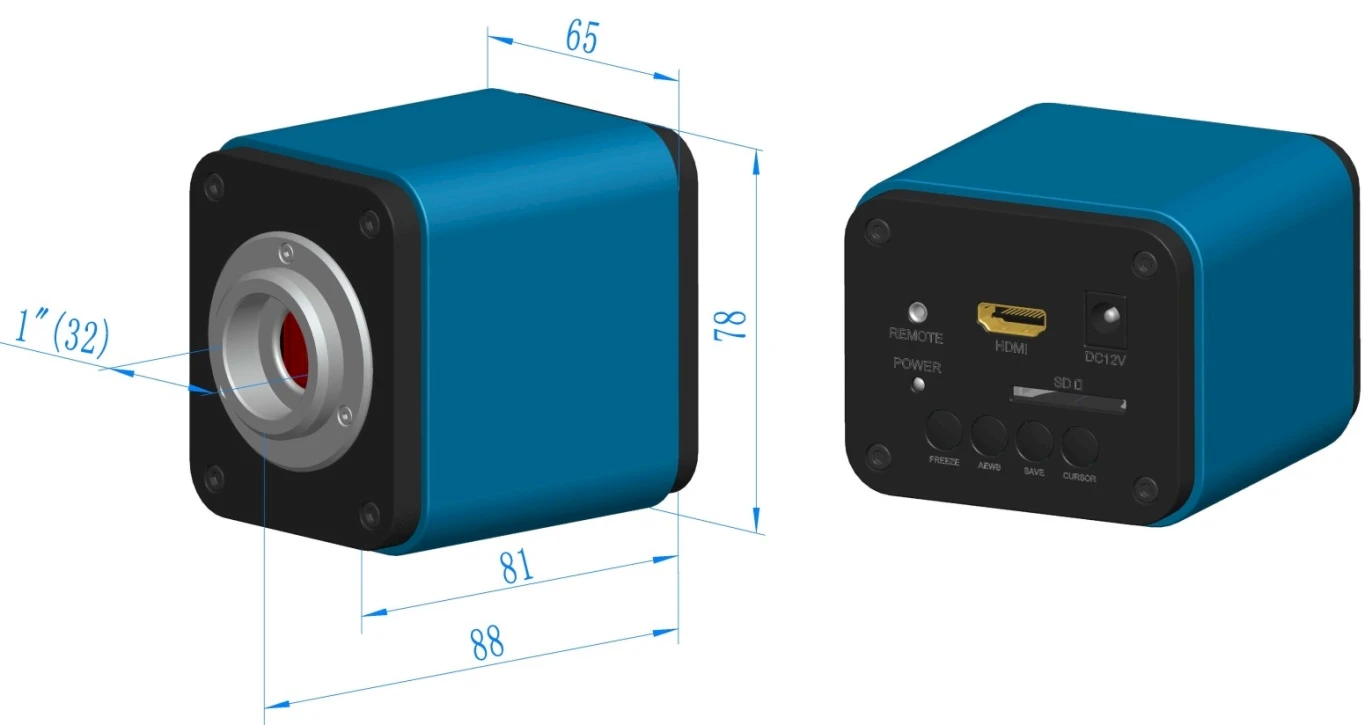

Dimension of XCAM0720PHA

Dimension of XCAM0720PHA

Dimension of XCAM0720PHA

Extension of XCAM0720PHA Camera with Microscope or Telescope Adapter

Extension


C-mount Camera

XCAM0720PHA

Machine vision; Medical imaging;
Semiconductor equipment; Test instruments;
Document scanners; 2D barcode readers;
Web camera and security video;
Microscope imaging;

Microscope Camera

Extension of XCAM0720PHA with Microscope or Telescope Adapter

Telescope Camera:

Order Code

Sensor & Size(mm)

Pixel(μm)

G Sensitivity

Dynamic range

SNRmax

FPS/Resolution

Binning

Exposure(ms)

XCAM0720PHA
XP0720A(Suspended)

720P/MT9P031 (C)
1/2.5”(5.70x4.28)

2.2x2.2

1.4 V/lux-sec

70.1dB

38.1dB

[email protected]

1x1

0.21ms~33ms

Interface & Button Functions

Button1

Video Stream/Freeze

Button2

AEWB ON/OFF

Button3

Save Image to SD Card

Button4

Cursor ON/OFF

1X HDMI Output Port

1X SD Card Slot

1X Power Input Slot

1X Remote Switch Slot

Overall Dimensions

Width X Depth X Height

68 mm (2.67”) X 68 mm (2.67”) X 92mm (3.62”)

Shipping Weight

0.25 kg (0.55 lbs)

Operating Environment

Operating Temperature(in Centidegree)

-10~ 50

Storage Temperature(in Centidegree)

-20~ 60

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 5V/1A Adapter

Optional Accessories

Lens

C-mount Lens

Cable

HDMI Cable

Memory Card

SD Card

Remote Image Save Switch

2.5mm Headphone Jack Remote Image Save Switch

Packing Information for XCAM0720PHA

Standard Packing List

A

Gift box : L:25.5cm W:17.0cm H:19.0cm (1pcs, 1.43Kg/ box)

B

XCAM0720PHA

C

Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A

American standard: Model: GS12U12-P1I 12W/12V/1A: UL/CUL/BSMI/CB/FCC

EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338

EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard

European standard:Model:GS12E12-P1I 12W/12V/1A; TUV(GS)/CB/CE/ROHS

EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338

EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard

D

HDMI Cable

E

2.5mm Headphone Jack Remote Image Save Switch

Optional Accessories

F

Adjustable lens adapter

C-Mount to Dia.23.2mm Eyepiece Tube
(Please choose 1 of them for your microscope)

108001/AMA037
108002/AMA050
108003/AMA075

C-Mount to Dia.31.75mm Eyepiece Tube
(Please choose 1 of them for your telescope)

108008/ATA037
108009/ATA050
108010/ATA075

G

Fixed lens Adapter

C-Mount to Dia.23.2mm Eyepiece Tube
(Please choose 1 of them for your microscope)

108005/FMA037
108006/FMA050
108007/FMA075

C-Mount to Dia.31.75mm Eyepiece Tube
(Please choose 1 of them for your telescope)

108011/FTA037
108012/FTA050
108013/FTA075

Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera), Jingtong engineer will help you to determine the right microscope or telescope camera adapter for your application;

H

108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube

I

108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube

J

Calibration kit

106011/TS-M1(X=0.01mm/100Div.);
106012/TS-M2(X,Y=0.01mm/100Div.);
106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)

K

SD Card(4G or 8G)
