C-mount Cameras

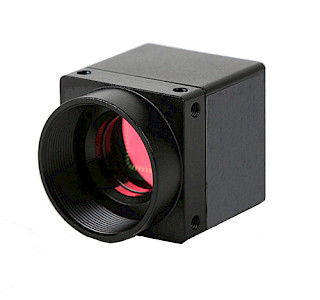

ICMOS Series Industrial C-mount USB2.0 CMOS Camera

ICMOS Series Industrial C-mount USB2.0 CMOS Camera

  • C-Mount camera with Aptina or OnSemi CMOS sensor
  • Dimensions: 29x29x29 mm excluding lens holder, without optics (metal case)
  • 8-pin Hirose HR25-7TR-8PA GPIO connector for trigger, strobe (Optional)
  • USB 2.0 interface with screw locks for camera control, data, and power
  • With advanced video & image processing application ToupView
  • Providing Windows/Linux/Mac OS multiple platforms SDK
  • Native C/C++, C#/VB.NET, DirectShow, Twain Control API

WUCAM Series C-mount WiFi+USB CMOS Camera

WUCAM Series C-mount WiFi+USB CMOS Camera

  • C-Mount camera has 25.4 mm or 1 inch diameter with 32 threads per inch
  • Scientific research grade camera with Aptina CMOS sensor
  • Switchable USB+WiFi data intaface
  • Send MJPEG encodec high-resolution images from camera to WiFi-enabled smartphones, computers, and tablets with iOS, Android, and Windows operating systems
  • Streams images to several devices simultaneously
  • Send MJPEG encodec high-resolution images from camera to USB-enabled computer with UVC standard protocal
  • Ultra-Fine color engine with perfect color reproduction capability
  • With advanced video & image processing application ToupView(only support simple video viewing capturing for IOS/ android system)
  • Custom programmable with SDK provided(Windows/Linux/OS)(WiFi)

WCAM Series C-mount WiFi CMOS Camera

WCAM Series C-mount WiFi CMOS Camera

  • C-Mount camera has 25.4 mm or 1 inch diameter with 32 threads per inch
  • Scientific research grade camera with Aptina CMOS sensor
  • Sends H.264 encodec high-resolution images from a microscope to WiFi-enabled smartphones, computers, and tablets with iOS, Android, and Windows operating systems
  • Streams images to several devices simultaneously
  • Integrated zinc aluminum alloy housing
  • Ultra-FineTM color engine with perfect color reproduction capability
  • With advanced video & image processing application ToupView(only support simple video viewing capturing for IOS/ android system)
  • Custom programmable with SDK provided(Windows/Linux/OS)

UCMOS Series C-mount USB2.0 CMOS Camera

UCMOS Series C-mount USB2.0 CMOS Camera

  • Standard C-Mount with Aptina CMOS sensor
  • With hardware resolution among 0.35M to 14M
  • Integrated zinc aluminum alloy housing
  • USB2.0 interface ensuring high speed data transmission
  • Ultra-FineTM color engine with perfect color reproduction capability

UA Series C-mount USB2.0 CMOS Camera

UA Series C-mount USB2.0 CMOS Camera

  • Standard C-Mount with Aptina/Panasonic CMOS sensor
  • With hardware resolution among 1.3M to 16M
  • USB2.0 interface ensuring high speed data transmission
  • Ultra-FineTM color engine with perfect color reproduction capability
  • External dedicated on-board buffer to achieve maximum performance of USB2.0
  • Compatible with most of the old and new CPU PC
  • Aluminum alloy CNC housing which is the same as that of UCMOS series

LCMOS Series C-mount USB2.0 CMOS Camera

LCMOS Series C-mount USB2.0 CMOS Camera

  • Stand C-Mount camera with Aptina CMOS sensor
  • With hardware resolution among 1.2M to 14M
  • On-board memory for perfect synchronization´╝îhigher frame rate and stable performance
  • High performance cooling structure, ensures low image noise
  • USB2.0 interface ensuring high speed data transmission
  • Ultra-FineTM color engine with perfect color reproduction capability

ECMOS Series C-mount USB2.0 CMOS Camera

ECMOS Series C-mount USB2.0 CMOS Camera

  • SONY Exmor, Exmor R(Back-illuminated), Exmor RS CMOS sensor with USB2.0 interface
  • Real-time 8/12/14/16bit depth switch(depending on sensor)
  • Super high sensitivity up to 2040mV(IMX224)
  • Ultra low noise and low power dissipation by using column-parallel A/D conversion
  • With hardware resolution among 1.2M to 8.3M
  • Rolling Shutter
  • Standard C-Mount camera
  • CNC aluminum alloy housing
  • USB2.0 interface ensuring high speed data transmission
  • With advanced video & image processing application ToupView
  • Providing Windows/Linux/Mac OS multiple platforms SDK
  • Native C/C++, C#/VB.Net, DirectShow, Twain

U3CMOS Series C-mount USB3.0 CMOS Camera

U3CMOS Series C-mount USB3.0 CMOS Camera

  • Standard C-Mount camera with Aptina CMOS sensor
  • With hardware resolution among 3.0M to 18M
  • Integrated zinc aluminum alloy housing
  • USB3.0 5 Gbps interface ensuring high frame rate

L3CMOS Series C-mount USB3.0 CMOS Camera

L3CMOS Series C-mount USB3.0 CMOS Camera

  • C-Mount camera has 25.4 mm or 1 inch diameter with 32 threads per inch
  • Scientific research grade camera with Aptina CMOS sensor
  • With hardware resolution among 1.2M to 14M
  • On-board memory for perfect synchronization´╝îhigher frame rate and stable performance
  • High performance cooling structure, ensures low image noise
  • USB3.0 5 Gbps interface ensuring high frame rate
  • Ultra-FineTM color engine with perfect color reproduction capability
  • With advanced video & image processing application ToupView
  • Providing Windows/Linux/Mac OS multiple platforms SDK
  • Native C/C++, C#/VB.NET, DirectShow, Twain Control API

U3ISPM Series C-mount USB3.0 CMOS Camera with Hardware ISP and Video Pipeline Inside

U3ISPM Series C-mount USB3.0 CMOS Camera with Hardware ISP and Video Pipeline Inside

  • Standard C-Mount camera with Aptina or Panasonic CMOS sensor
  • With hardware resolution among 16M to 18M
  • Ultra-fineTM HISP VP and USB3.0 5 Gbps interface ensuring high frame rates(Up to 13 frames for 18M Resolution)
  • CNC aluminum alloy housing
  • USB3.0 5 Gbps interface ensuring high frame rate
  • With advanced video & image processing application ToupView
  • Providing Windows/Linux/Mac OS multiple platforms SDK
  • Native C/C++, C#/VB.NET, DirectShow, Twain Control API

E3CMOS Series C-mount USB3.0 CMOS Camera

E3CMOS Series C-mount USB3.0 CMOS Camera

  • SONY Exmor, Exmor R(Back-illuminated), Exmor RS CMOS sensor with USB3.0 interface
  • Real-time 8/12/14/16bit depth switch(depending on sensor)
  • Super high sensitivity up to 1120mV(IMX185)
  • Ultra low noise and low power dissipation by using column-parallel A/D conversion
  • With hardware resolution among 0.4M to 20M
  • Rolling Shutter or Global Shutter
  • Standard C-Mount camera
  • CNC aluminum alloy housing
  • USB3.0 5 Gbps interface ensuring high frame rates
  • With advanced video & image processing application ToupView
  • Providing Windows/Linux/Mac OS multiple platforms SDK
  • Native C/C++, C#/VB.Net, DirectShow, Twain, LabView

E3ISPM Series C-mount USB3.0 CMOS Camera with Hardware ISP and Video Pipeline

E3ISPM Series C-mount USB3.0 CMOS Camera with Hardware ISP and Video Pipeline

  • SONY Exmor, Exmor R(Back-illuminated), Exmor RS CMOS sensor with USB3.0 interface
  • Real-time 8/12bit depth switch(depending on sensor)
  • Ultra-fineTM HISP VP and USB3.0 5 Gbps interface ensuring high frame rates(Up to 15 frames for 20M Resolution)
  • Super high sensitivity up to 1120mV(IMX264)
  • Ultra low noise and low power dissipation by using column-parallel A/D conversion
  • With hardware resolution among 3.1M to 20M
  • Rolling Shutter or Global Shutter
  • Standard C-Mount camera
  • CNC aluminum alloy housing
  • With advanced video & image processing application ToupView
  • Providing Windows/Linux/Mac OS multiple platforms SDK
  • Native C/C++, C#/VB.Net, DirectShow, Twain, LabView
