ALPHA1080 Series C-mount HDMI+USB CMOS Camera

Sony CMOS

HDMI+USB

For HDMI output:

All in 1( HDMI+USB+SD card) C-mount camera with Sony high sensitivity CMOS sensor
Simultaneous HDMI & USB output
Built-in mouse control
Built-in image capture & video record to SD card
Built-in camera control panel, including exposure(manual/auto)/gain, white balance(lockable), color adjustment, sharpness control
Built-in video and image measurement
Built-in toolbar including zoom, mirror, comparison, freeze, cross, browser functions
Built-in image & video browsing, display & play
Real time clock(RTC)

For USB Video mode:

Ultra-Fine color engine with perfect color reproduction capability(USB)
With advanced video & image processing application, which including professional image processing such as 2D measurement, HDR, image stitching, EDF(Extended Depth of Focus), image segmentation & count, image stacking, color composite and denoising(USB)
Support standard UVC protocol for Windows/Linux/Mac(USB)
CNC precision machining shell

The possible applications of ALPHA1080 series are as follows:

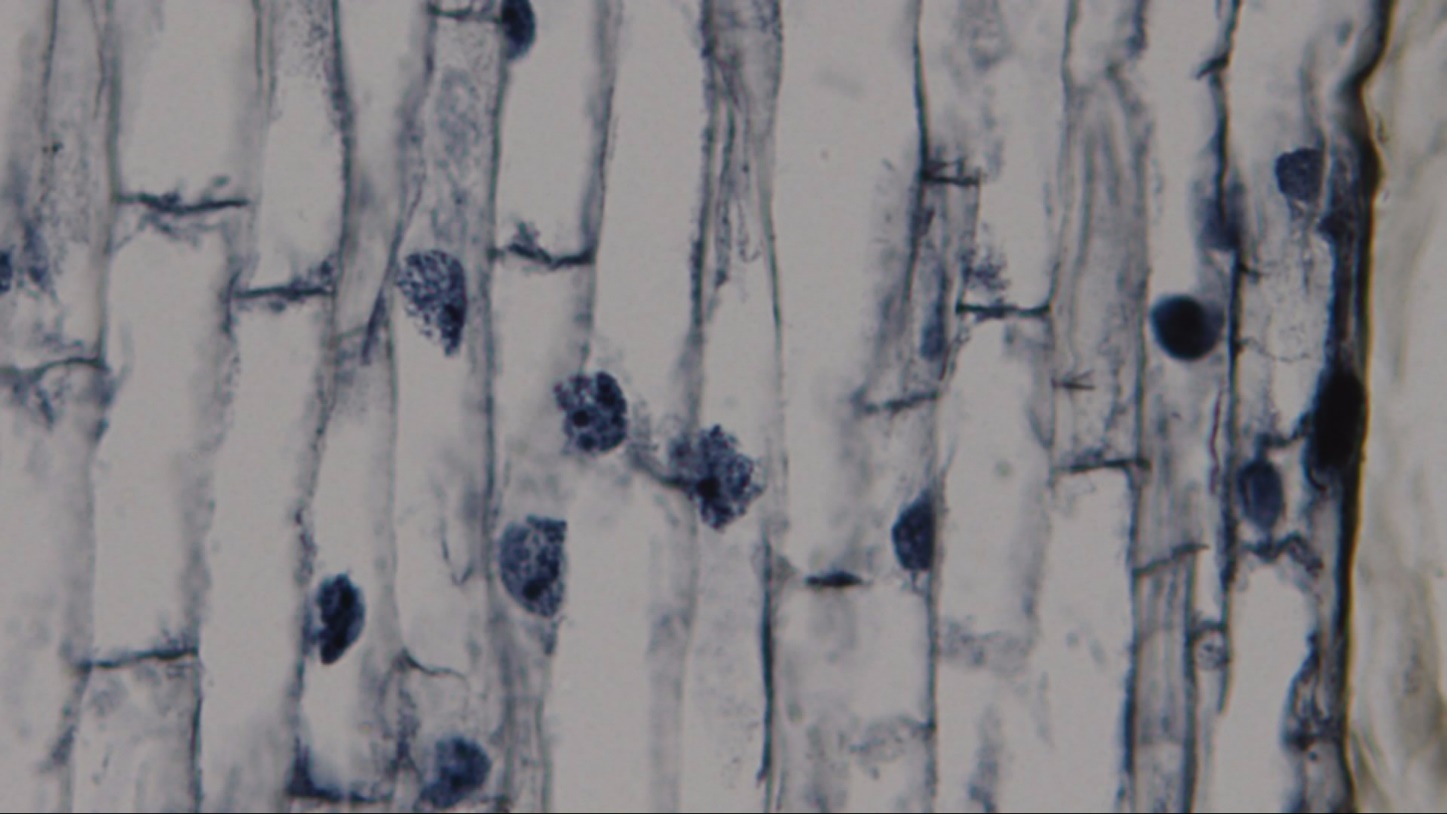

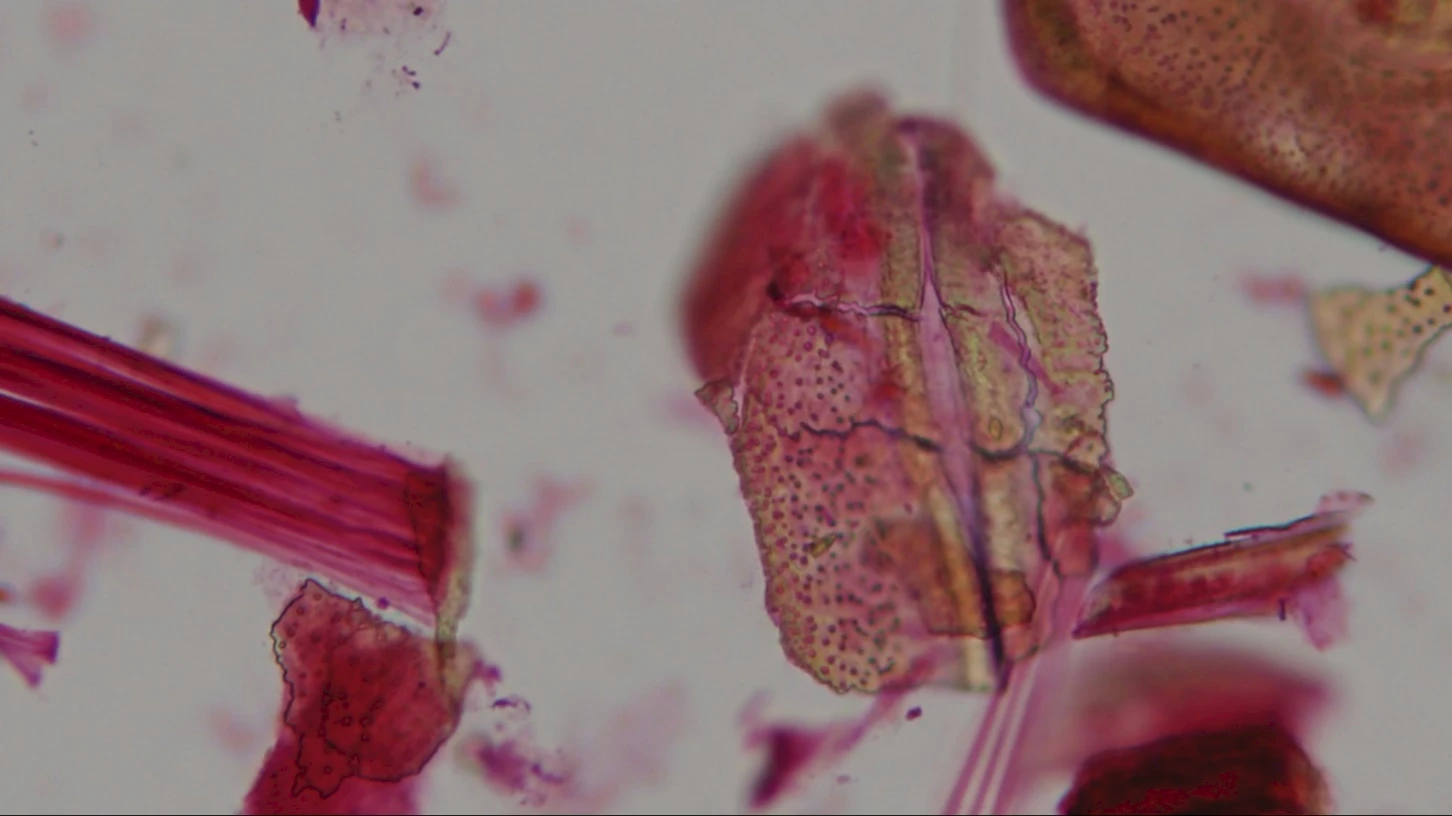

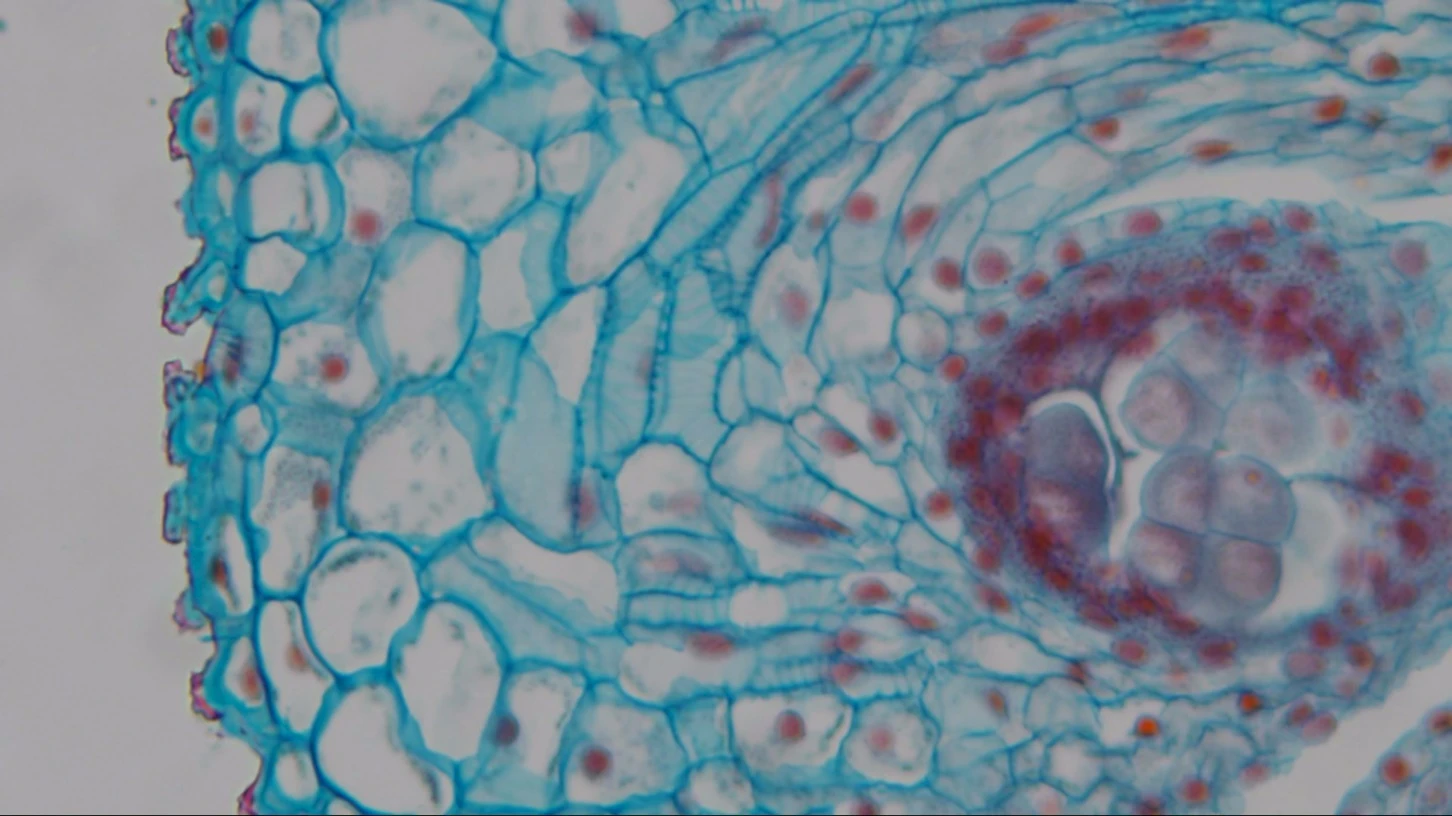

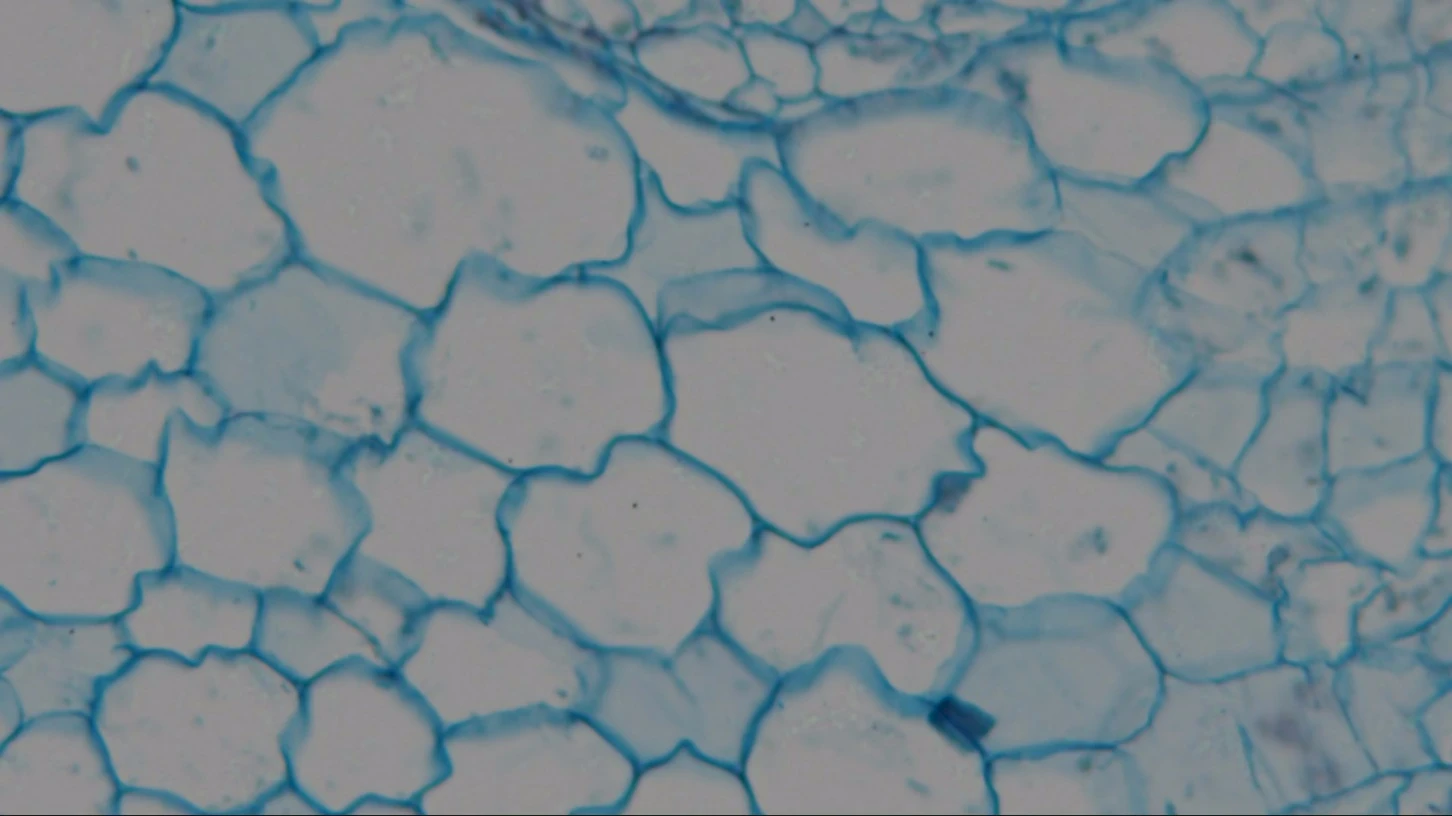

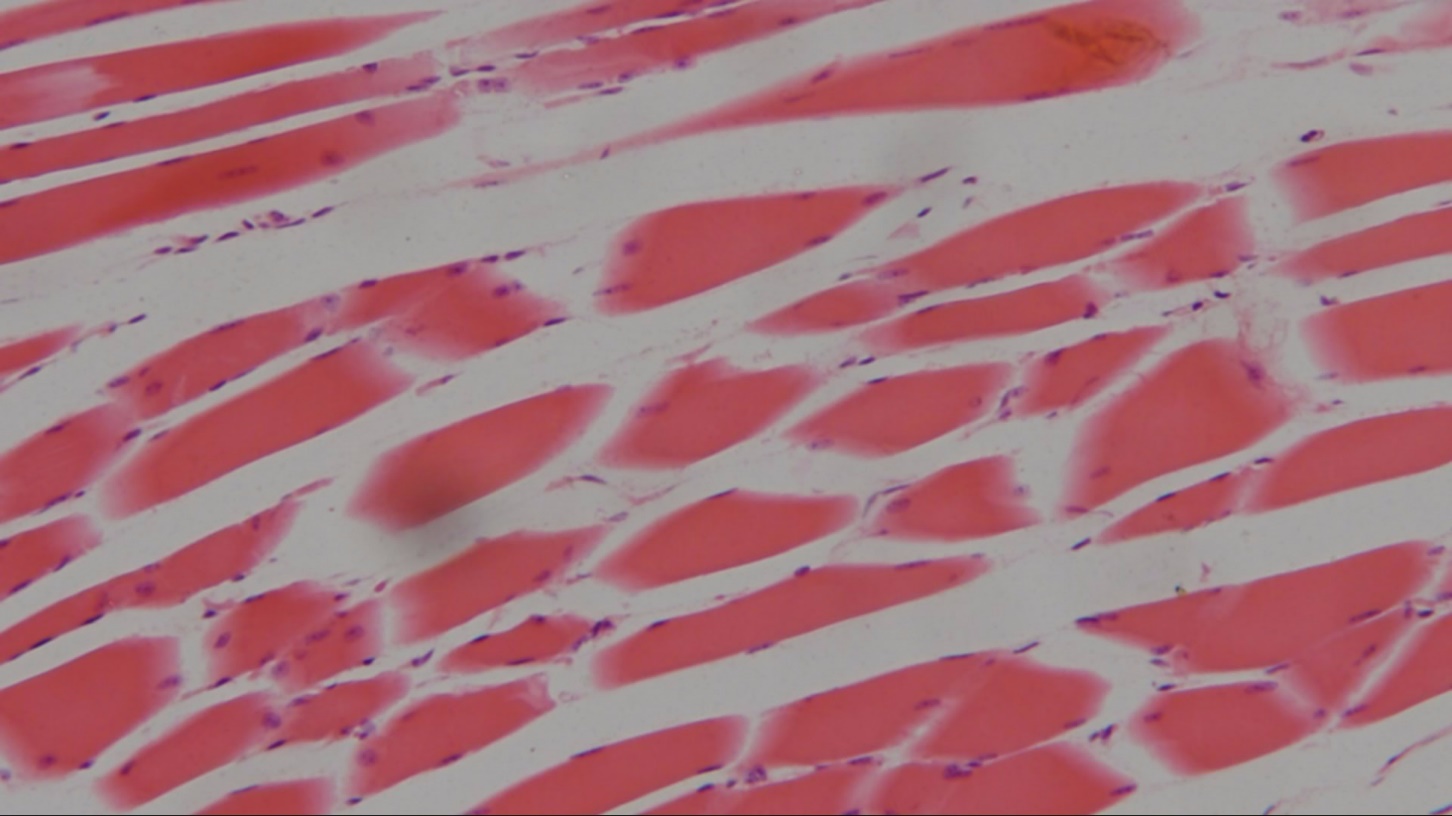

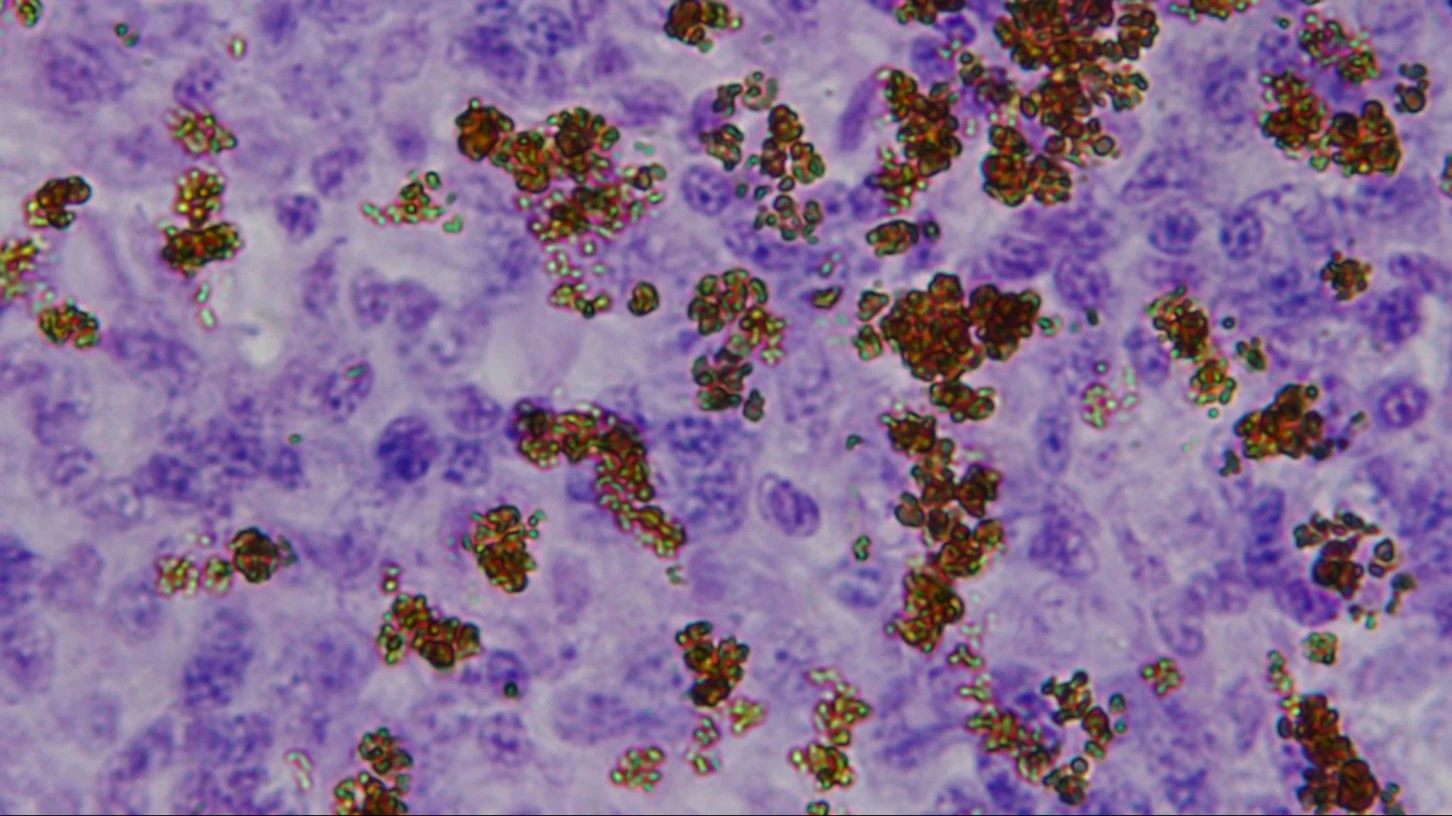

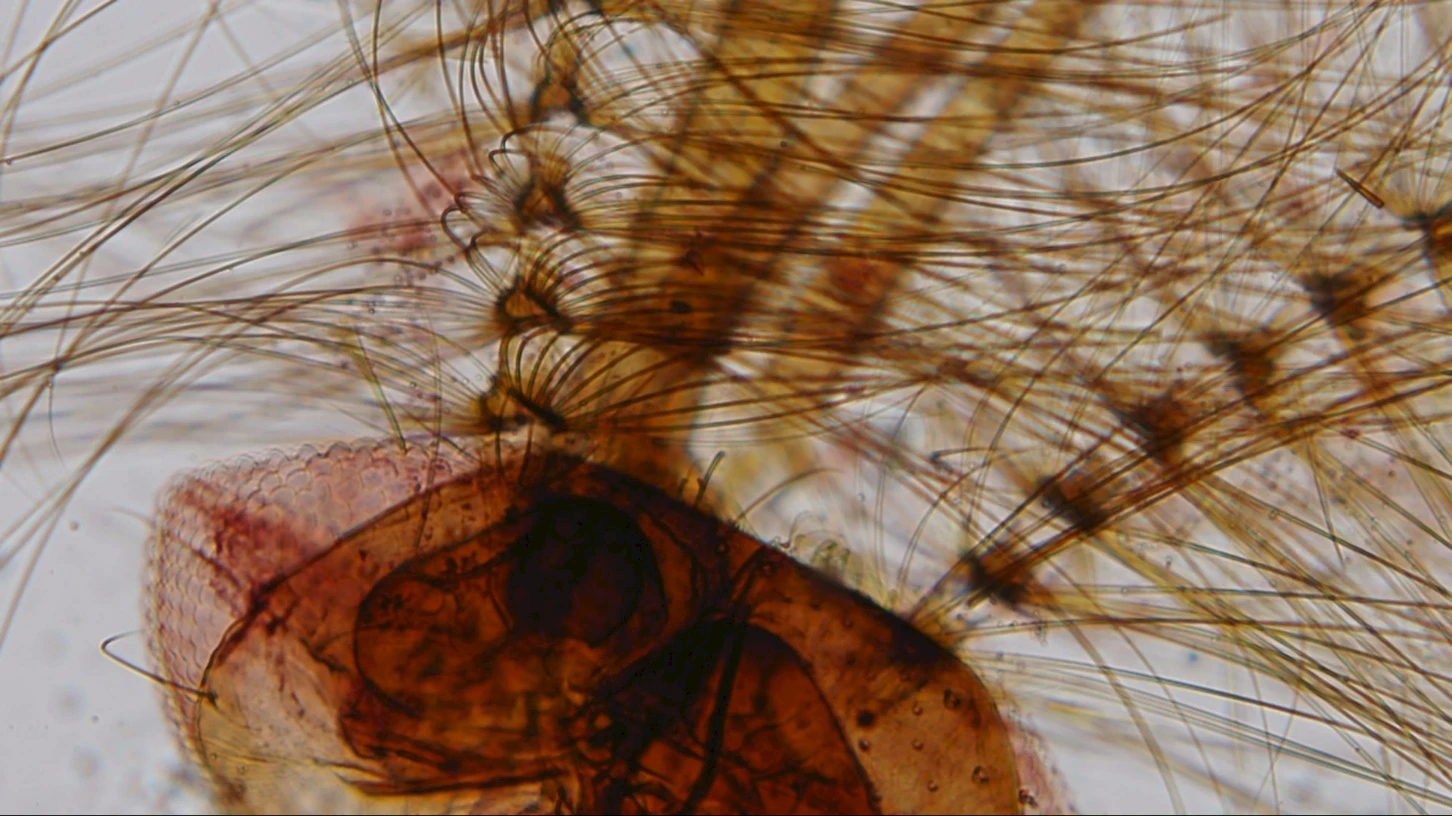

Scientific research, education (teaching, demonstration and academic exchanges)
Digital laboratory, medical research
Industrial visual (PCB examination, IC quality control, mechanical part measurement)

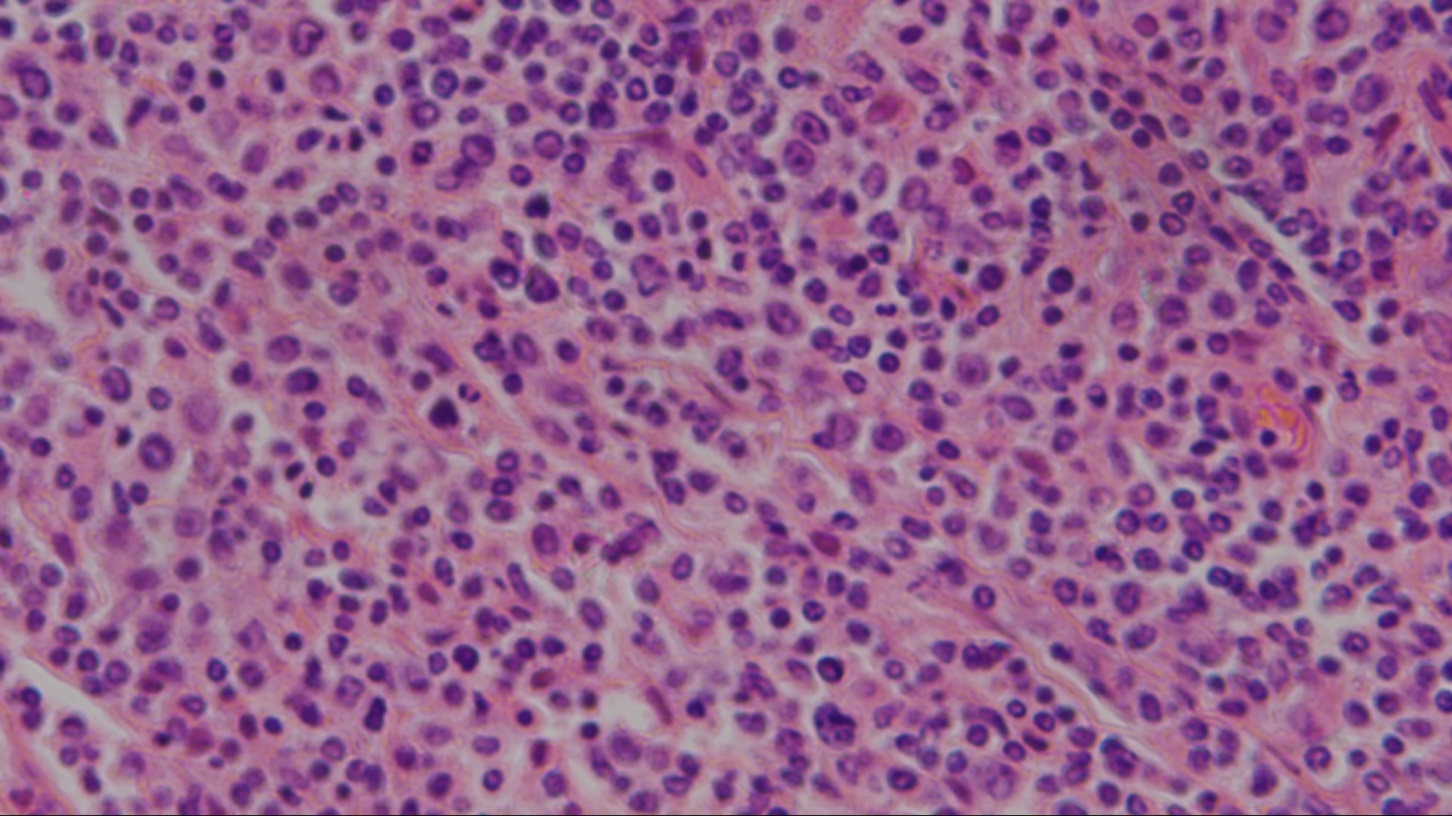

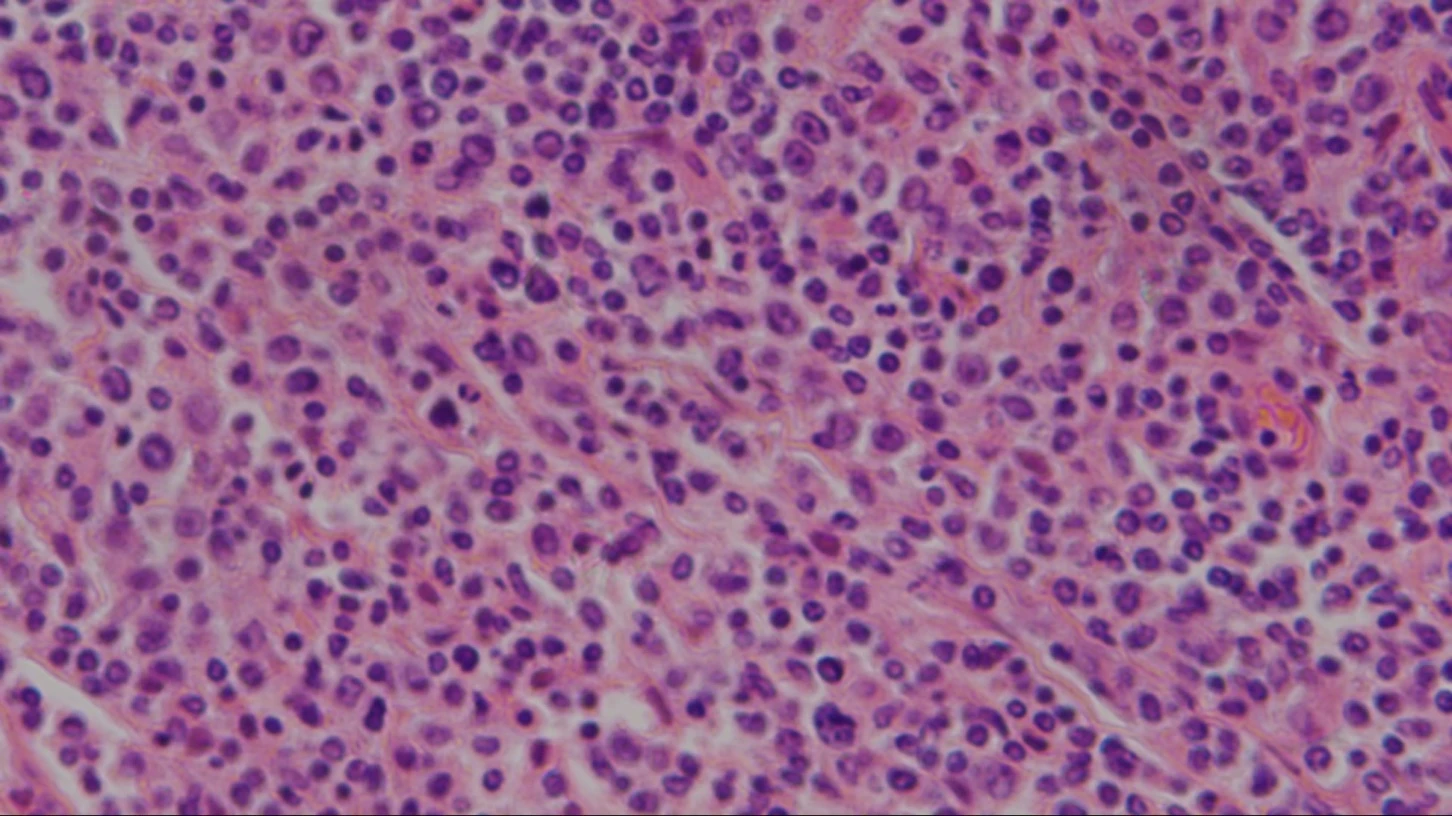

Medical treatment (pathological observation)
Food (microbial colony observation and counting)
Aerospace, military (high sophisticated weapons)

ALPHA1080 series is a multiple interfaces (HDMI+USB2.0+SD card) CMOS camera and it adopts ultra-high performance Sony CMOS sensor as the image-picking device. HDMI+USB2.0 are used as the data transfer interface to HDMI display or computer.

For HDMI camera mode, The XCamView will be loaded and the Camera Control Panel+ Measurement Toolbar and Synthesis Camera Control Toolbar are overlaid on the HDMI screen when the mouse move to the related region, in this case, the USB mouse can be used to set the camera, browse and compare the captured image, play the video and perform the measurement ital.

For USB Video camera mode, plug in the micro USB host cable to the camera's USB Video port and computer USB port, then the video stream can be transfer to computer with the advanced software. With software, you can control the camera, process the video and image as other USB series camera.

ALPHA1080 Series and Microscope

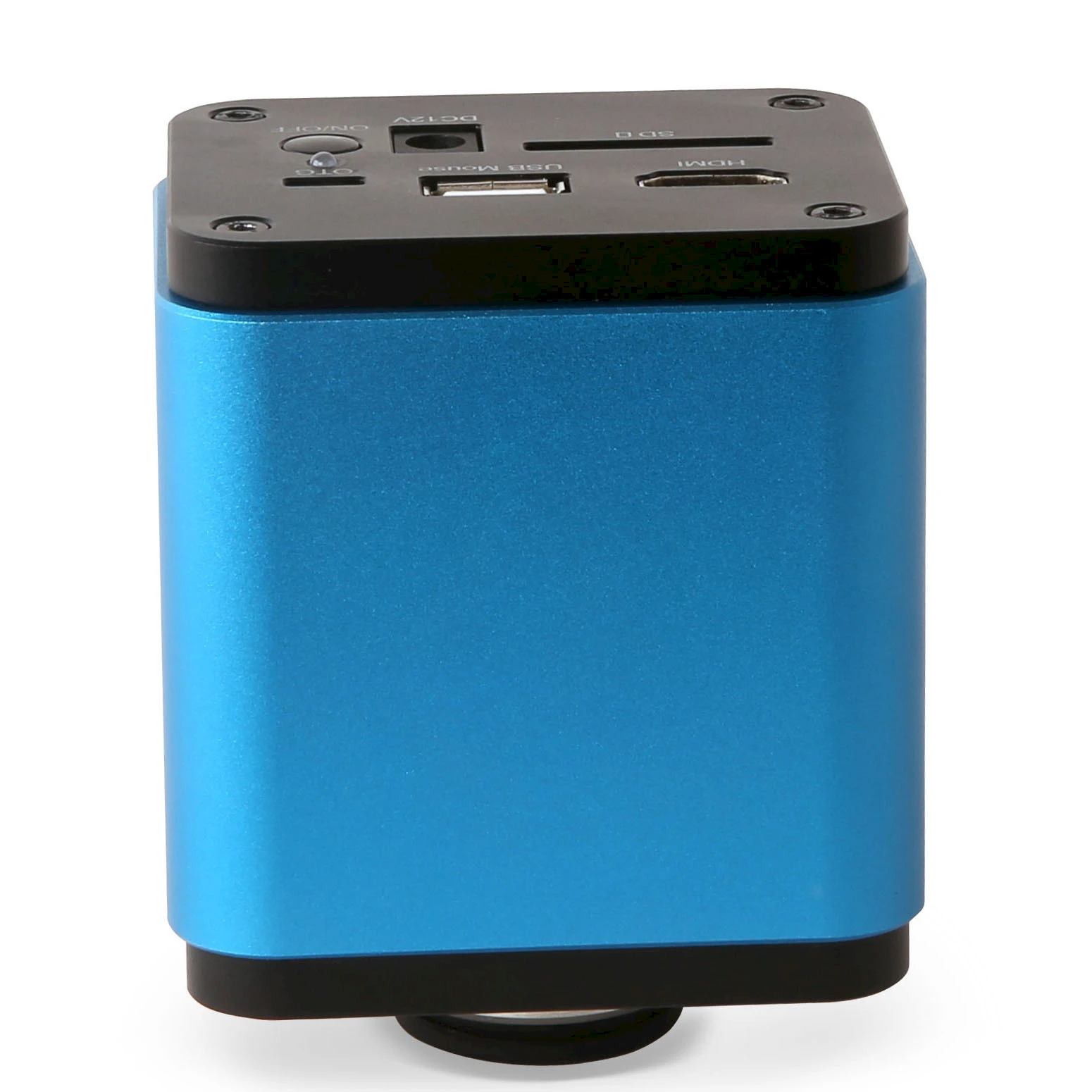

ALPHA1080 Series ALPHA1080 Series's Back Panel

ALPHA1080 Series and Its Back Panel

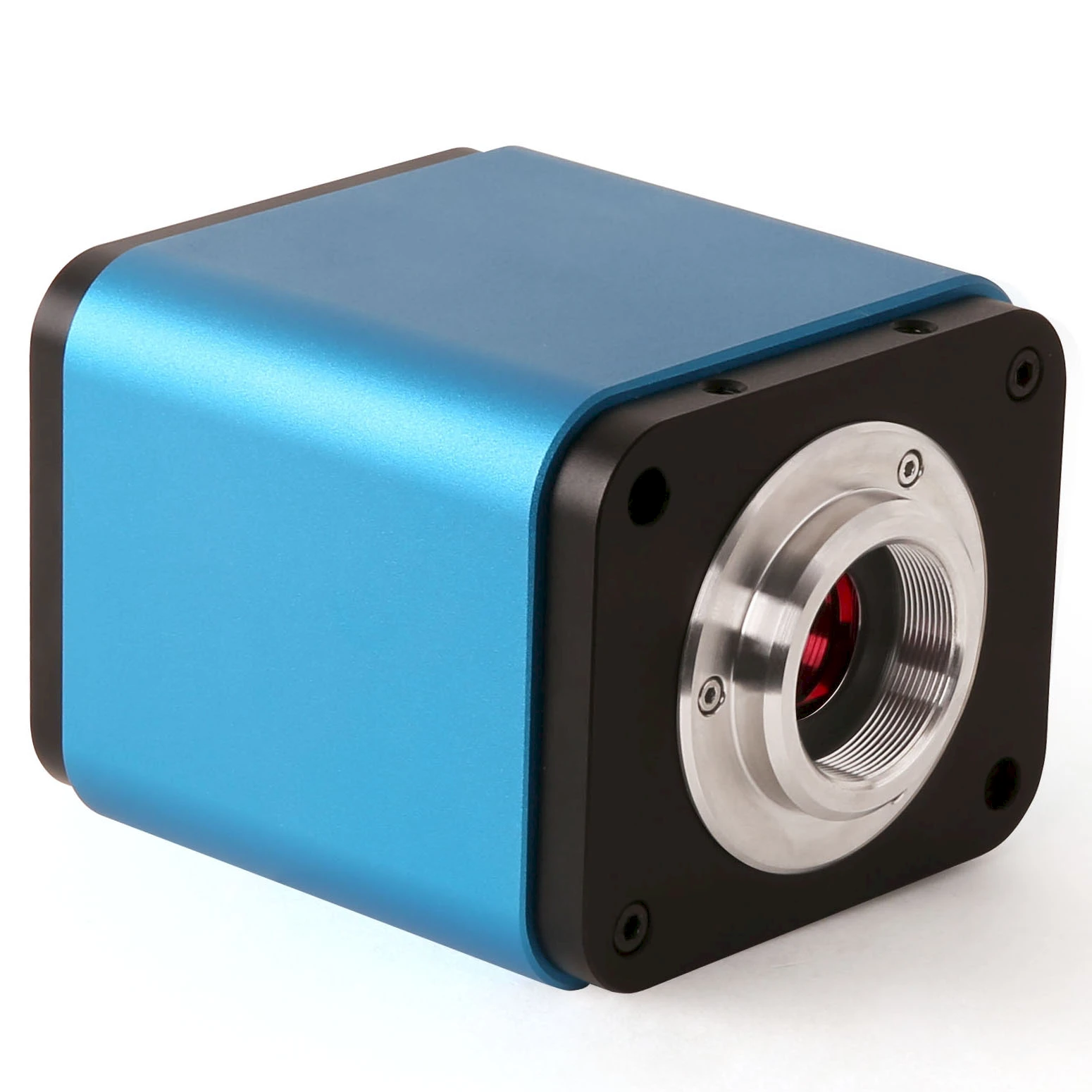

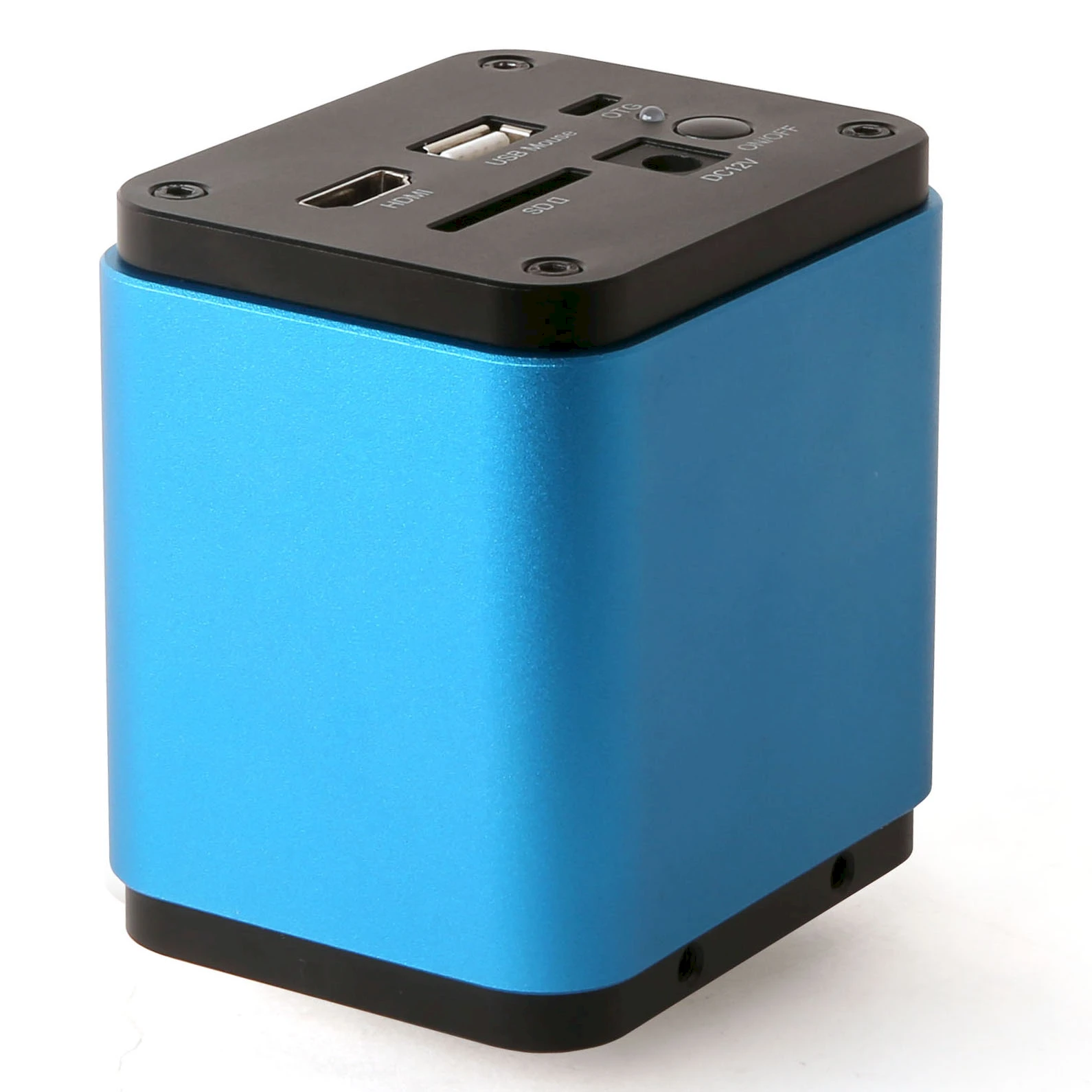

Different View of ALPHA1080 Series

Different Views of ALPHA1080 Series

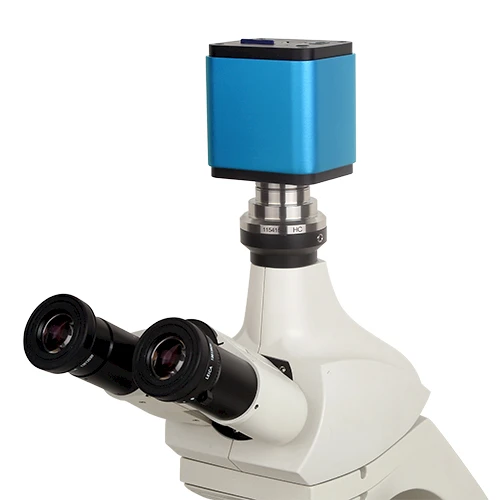

ALPHA1080 Series and Microscope

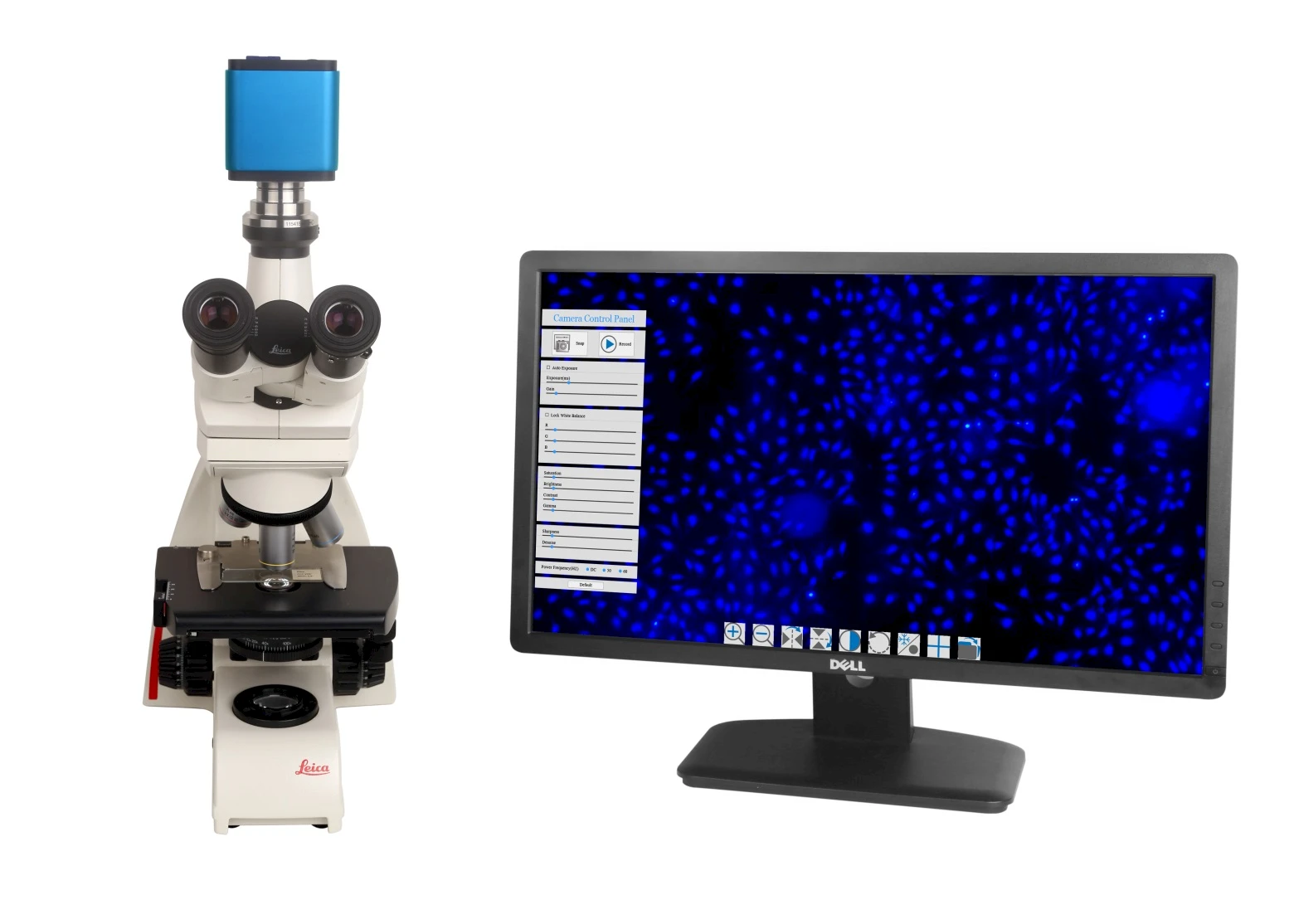

ALPHA1080 Series+ Microscope+Display

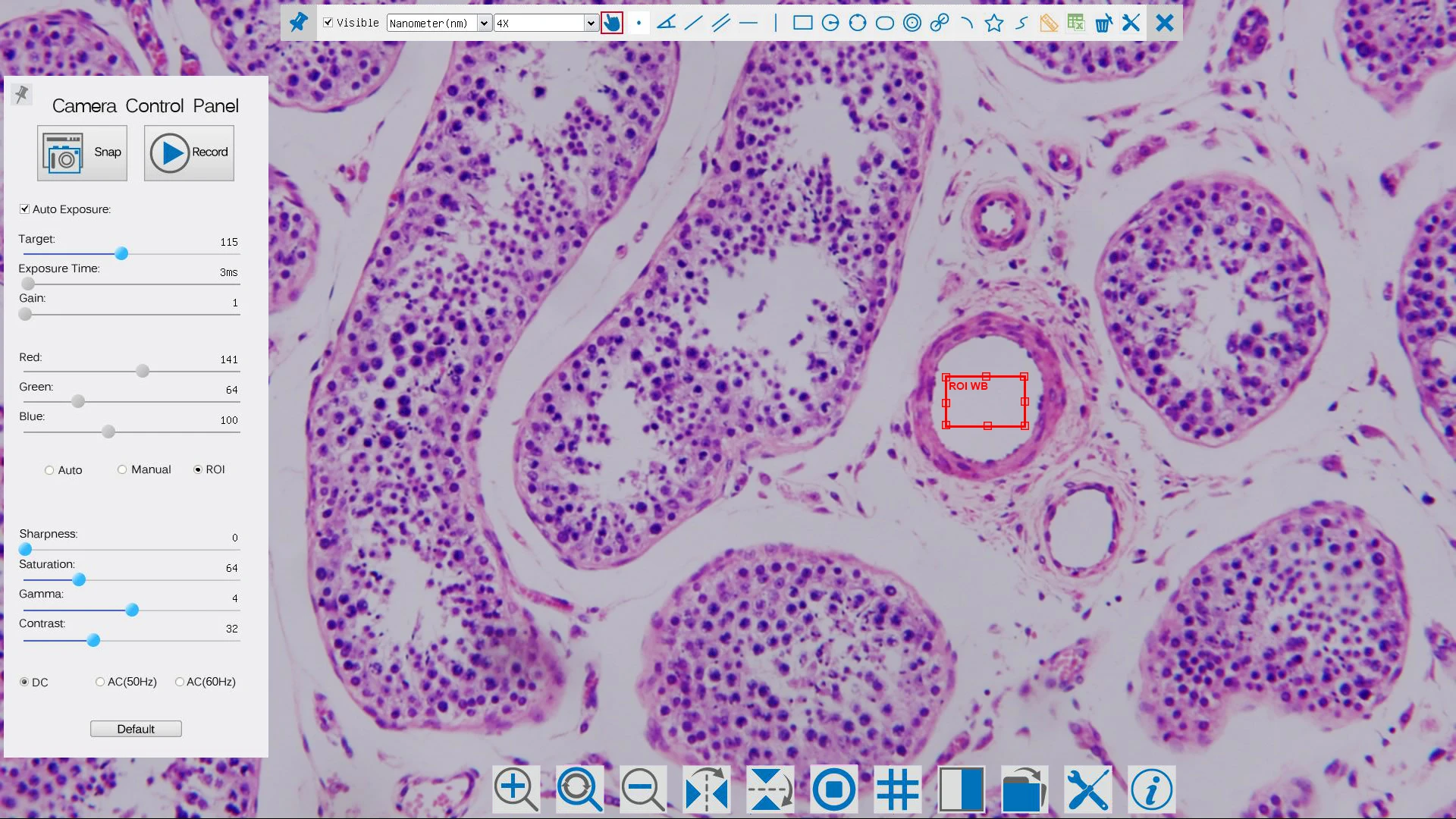

ALPHA1080 XCamView UI for Mouse Control

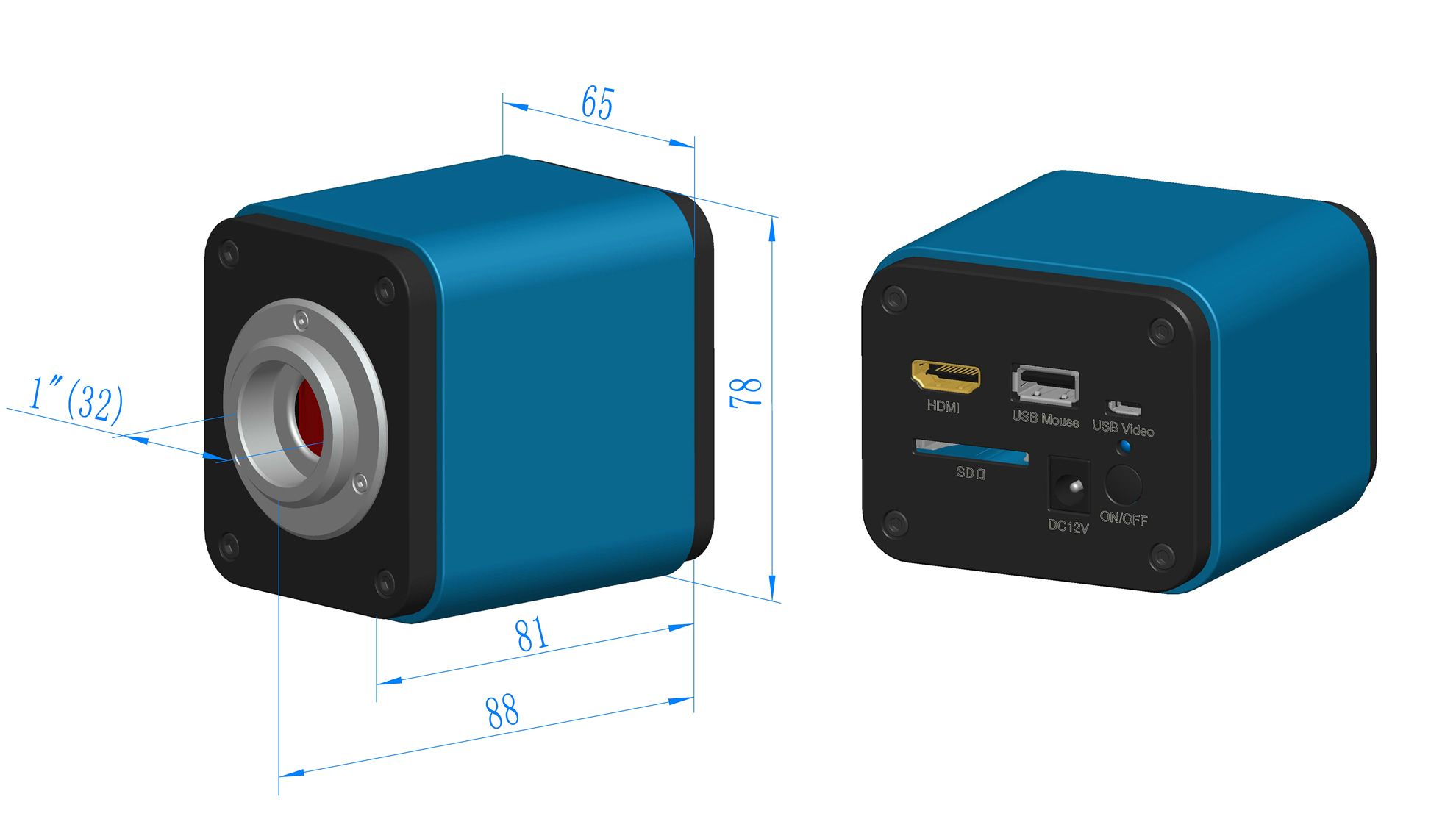

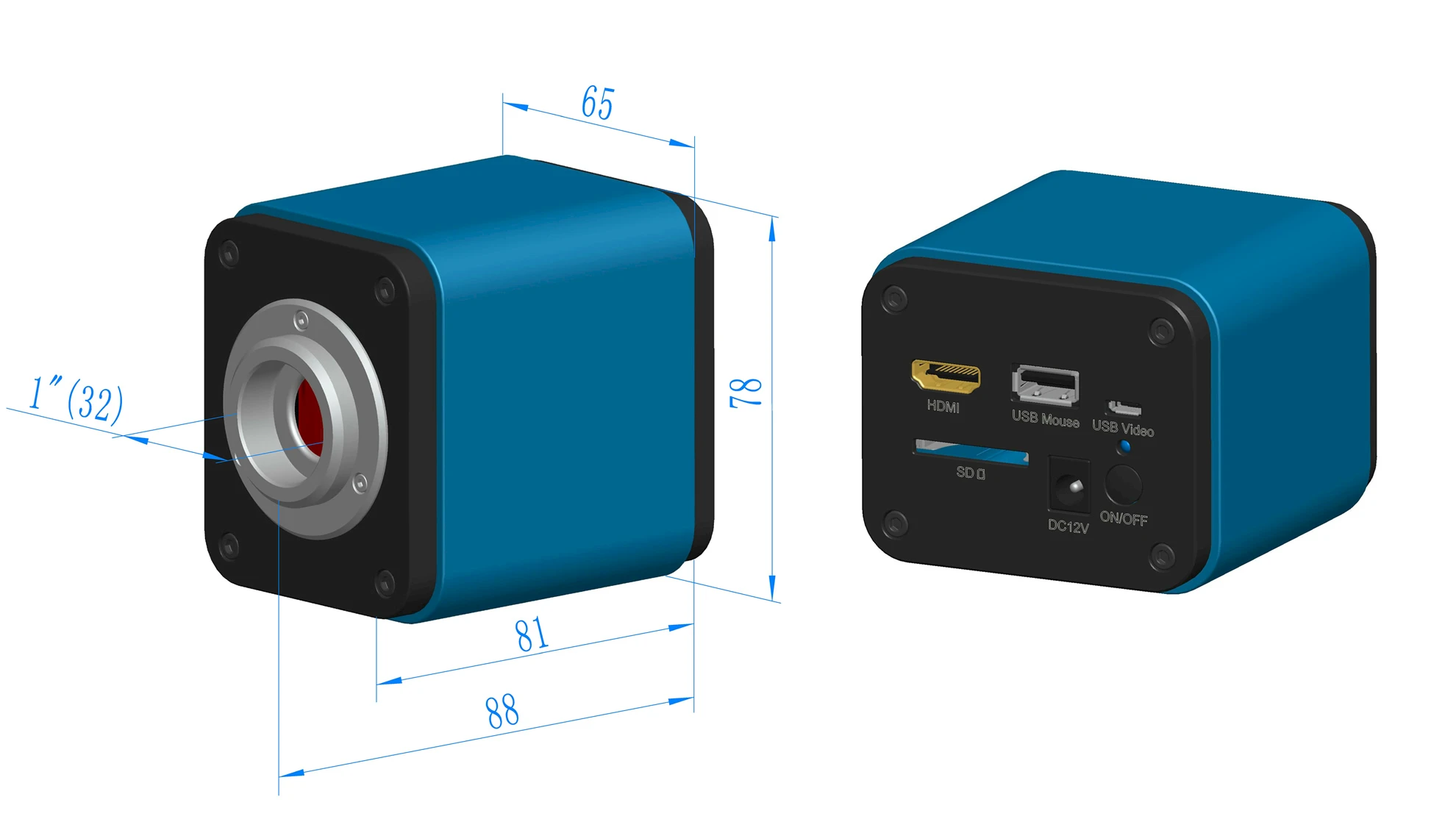

Dimension of ALPHA1080 Series

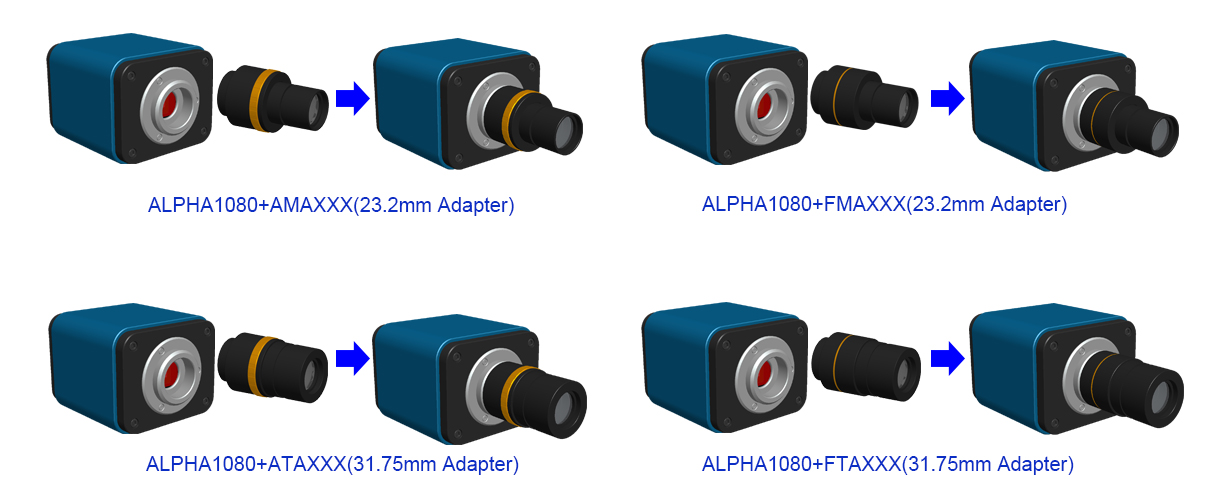

Extension of ALPHA1080 Series with Microscope or Telescope Adapter

Extension	Picture
C-mount camera		Machine vision; Medical imaging; Semiconductor equipment; Test instruments; Document scanners; 2D barcode readers; Microscope imaging;
Microscope Camera
Telescope Camera

Order Code	Sensor & Size(mm)	Pixel(μm)	G Sensitivity Dark Signal	FPS/Resolution	Binning	Exposure
ALPHA1080A AL1080A	1080P/Sony IMX290 1/2.8”(5.57x4.13)	2.9x2.9	1300mv with 1/30s 0.15 mv with 1/30s	60@1920X1080P (HDMI) 26@1920X1080 (USB)	1x1	0.036ms~8s
ALPHA1080B AL1080B	1080P/Sony IMX185 1/1.9”(7.20x4.50)	3.75x3.75	1120mv with 1/30s 0.15 mv with 1/30s	60@1920X1080P (HDMI) 26@1920X1080 (USB)	1x1	0.34ms~4s

Order Code

Sensor & Size(mm)

Pixel(μm)

G Sensitivity

Dark Signal

FPS/Resolution

Binning

Exposure

ALPHA1080A
AL1080A

1080P/Sony IMX290
1/2.8”(5.57x4.13)

2.9x2.9

1300mv with 1/30s

0.15 mv with 1/30s

60@1920X1080P
(HDMI)
26@1920X1080
(USB)

1x1

0.036ms~8s

ALPHA1080B
AL1080B

1080P/Sony IMX185
1/1.9”(7.20x4.50)

3.75x3.75

1120mv with 1/30s

0.15 mv with 1/30s

60@1920X1080P
(HDMI)
26@1920X1080
(USB)

1x1

0.34ms~4s

C: Color; M: Monochrome;

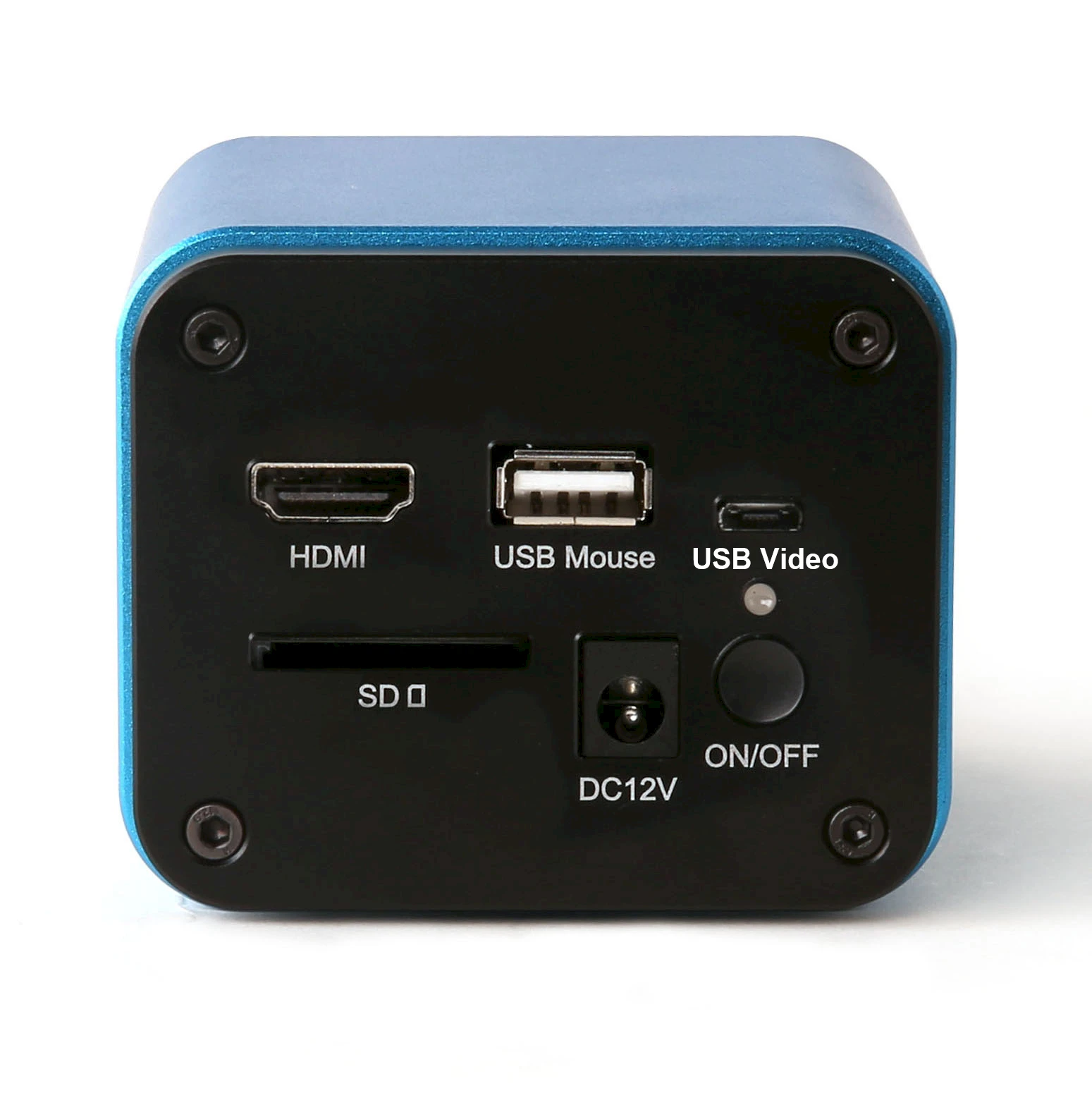

Interface & Button Functions
			HDMI	HDMI Output
			USB Mouse	USB Mouse for the Control of the HDMI Mode
			USB Video	USB Video for the PC
			SD	SD Card Slot
			DC12V	12V/1A Power in
			ON/OFF	Power ON/OFF Switch
Other Specification for HDMI Output
UI Operation		With USB Mouse for HDMI Mode
Image Capture		High Speed in SD Card(8G)
Video Record		1080P 26fps in SD Card(8G)(AVI Format in SD Card)
Camera Control Panel		Including Exposure, Gain, White Balance, Color Adjustment and Sharpness Control
Toolbar		Including Zoom, Mirror, Comparison, Freeze, Cross, Browser Function
Other Specification for USB Output
White Balance	Auto White Balance, Manual White Balance, ROI White Balance
Color Technique	Ultra-FineTM Color Engine (USB2.0)
Capture/Control API	Standard UVC for Windows(USB2.0)
Recording System	Still Picture or Movie (HDMI or USB)
Software Environment (for USB2.0 Connection)
Operating System	Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 /10(32 & 64 bit) OSx(Mac OS X) Linux
PC Requirements	CPU: Equal to Intel Core2 2.8GHz or Higher
	Memory:4GB or More
	USB Port:USB2.0 High-speed Port
	Display:19” or Larger
	CD-ROM
Operating Environment
Operating Temperature(in Centidegree)	-10~ 50
Storage Temperature(in Centidegree)	-20~ 60
Operating Humidity	30~80%RH
Storage Humidity	10~60%RH
Power Supply	DC 12V/1A Adapter

Packing Information for ALPHA1080

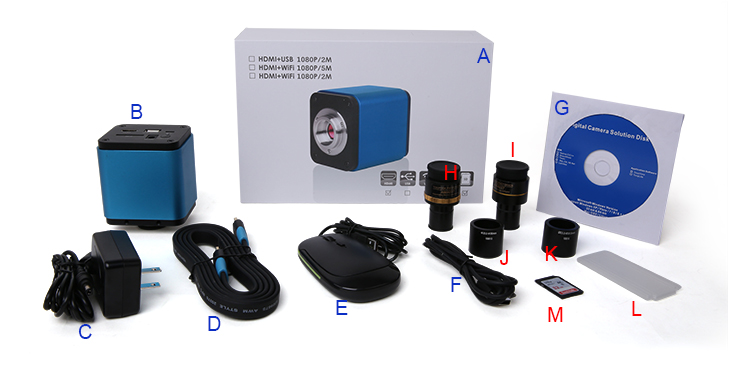

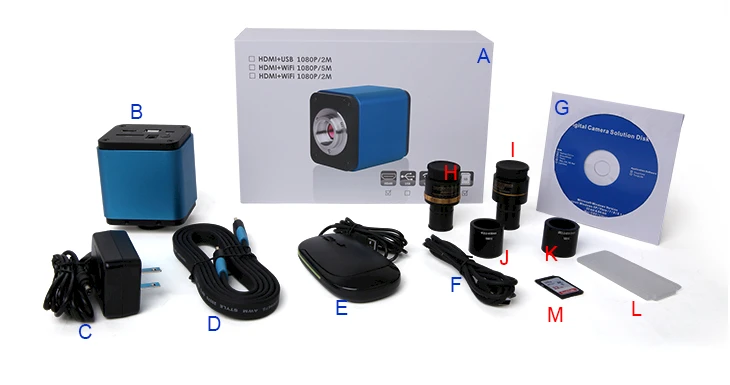

Standard Packing List
A	Gift box : L:25.5cm W:17.0cm H:19.0cm (1pcs, 1.55kg/ box)
B	ALPHA1080 Series camera
C	Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A American standard: Model: GS12U12-P1I 12W/12V/1A: UL/CUL/BSMI/CB/FCC EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338 EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard European standard:Model:GS12E12-P1I 12W/12V/1A; TUV(GS)/CB/CE/ROHS EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338 EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard
D	HDMI Cable
E	USB Mouse
F	Micro USB2.0 cable /2.0m
G	CD (Driver & utilities software, Ø12cm)
Optional Accessory
H		Adjustable lens adapter	C-Mount to Dia.23.2mm Eyepiece Tube (Please choose 1 of them for your microscope)	108001/AMA037 108002/AMA050 108003/AMA075
H		Adjustable lens adapter	C-Mount to Dia.31.75mm Eyepiece Tube (Please choose 1 of them for your telescope)	108008/ATA037 108009/ATA050 108010/ATA075
I		Fixed lens Adapter	C-Mount to Dia.23.2mm Eyepiece Tube (Please choose 1 of them for your microscope)	108005/FMA037 108006/FMA050 108007/FMA075
		Fixed lens Adapter	C-Mount to Dia.31.75mm Eyepiece Tube (Please choose 1 of them for your telescope)	108011/FTA037 108012/FTA050 108013/FTA075
		Note: For H and I optional items, please specify your camera type(C-mount, microscope camera or telescope camera), Jingtong engineer will help you to determine the right microscope or telescope camera adapter for your application;
J		108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube
K		108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube
L		Calibration kit	106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
M		SD Card(4G,8G,16G)
