XCAM1080PHA C-mount HDMI+USB CMOS Camera

XCAM1080PHA

HDMI+USB, connect to HDMI display & computer simultaneously,intelligent image processing

Features


  • All in 1( HDMI+USB+SD card) C-mount camera with Sony high sensitivity CMOS sensor
  • Simultaneous HDMI & USB output
  • CNC precision machining shell
  • Built-in mouse control
  • Built-in image capture & video record to SD card
  • Built-in camera control panel, including exposure(manual/auto)/gain, white balance(lockable), color adjustment, sharpness and denoising control
  • Built-in toolbar including zoom, mirror, comparison, freeze, cross, browser functions
  • Built-in image & video browsing, display & play
  • Ultra-Fine color engine with perfect color reproduction capability(USB)
  • With advanced video & image processing application ToupView, which including professional image processing such as 2D measurement, HDR, image stitching, EDF(Extended Depth of Focus), image segmentation & count, image stacking, color composite and denoising(USB)
  • Support standard UVC for Windows/Linux/Mac(USB)

Tags: CMOS CamerasC-mount CamerasHDMI CamerasUSB Cameras

Request a Quote?


Get Quote Live chat Email Phone

HDMI+USB+SD card
Simultaneous HDMI & USB output
CNC precision machining shell

The possible applications of XCAM1080PHA are as follows:

  • Scientific research, education (teaching, demonstration and academic exchanges)
  • Digital laboratory, medical research
  • Industrial visual (PCB examination, IC quality control)
  • Medical treatment (pathological observation)
  • Food (microbial colony observation and counting)
  • Aerospace, military (high sophisticated weapons)

XCAM1080PHA is a multiple interfaces (HDMI+USB2.0+SD card, so X here means multiple interfaces) CMOS camera and it adopts ultra-high performance Sony IMX236 CMOS sensor as the image-picking device. HDMI+USB2.0 are used as the data transfer interface to HDMI display or computer.

For HDMI output, The XCamView will be loaded and a camera control panel and toolbar are overlaid on the HDMI screen, in this case, the USB mouse can be used to set the camera, browse and compare the captured image, play the video ital.

For USB2.0 output, unplug the mouse and plug in the USB2.0 cable to the camera and computer, then the video stream can be transfer to computer with the advanced software ToupView. With ToupView, you can control the camera, process the image as Jingtong's other USB series camera.

XCAM1080PHA and Microscope

XCAM1080PHAXCAM1080PHA's Back Panel

XCAM1080PHA and Its Back Panel

Different View of XCAM1080PHADifferent View of XCAM1080PHA

Different Views of XCAM1080PHA

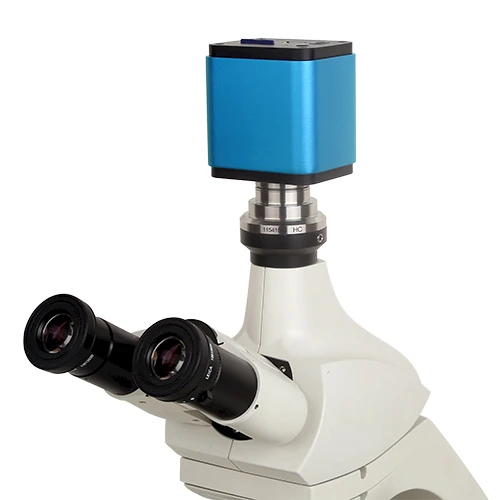

XCAM1080PHA and Microscope

XCAM1080PHA and Microscope

XCAM1080PHA+ Microscope+Display

XCAM1080PHA+ Microscope+Display

XCamView UI for Mouse Control

XCamView UI for Mouse Control

Dimension of XCAM1080PHA

Dimension of XCAM1080PHA

Dimension of XCAM1080PHA

Extension of XCAM1080PHA with Microscope or Telescope Adapter

Extension


C-mount Camera

XCAM1080PHA

Machine vision; Medical imaging;
Semiconductor equipment; Test instruments;
Document scanners; 2D barcode readers;
Web camera and security video;
Microscope imaging;

Microscope Camera

Extension of XCAM1080PHA with Microscope or Telescope Adapter

Telescope Camera:

Order Code

Sensor & Size(mm)

Pixel(μm)

G Sensitivity

Dark Signal

FPS/Resolution

Binning

Exposure

XCAM1080PHA
XP1080A

1080P/Sony IMX236
1/2.8”(5.38x3.02)

2.8x2.8

510 mv with 1/30s

0.15 mv with 1/30s

[email protected]
(HDMI)
[email protected]
(USB)

1x1

0.1ms~999ms

C: Color; M: Monochrome;

Interface & Button Functions

USB

USB Camera or USB Mouse

HDMI

HDMI Output

DC12V

12V Power in

SD

SD Card Slot

ON/OFF

Power On/off Switch

Other Specification for HDMI Output

UI Operation

With USB Mouse

Image Capture

High Speed in SD Card(8G)

Video Record

1080P 30fps in SD Card(8G)

Camera Control Panel

Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control

Toolbar

Including Zoom, Mirror, Comparison, Freeze, Cross, Browser Function

Other Specification for USB Output

White Balance

Auto White Balance

Color Technique

Ultra-FineTM Color Engine (USB)

Capture/Control API

Standard UVC for Windows/Linux/Mac(USB)

Recording System

Still Picture or Movie (USB)

Software Environment (for USB2.0 Connection)

Operating System

Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 /10(32 & 64 bit)

OSx(Mac OS X)

Linux

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory:4GB or More

USB Port:USB2.0 High-speed Port

Display:19” or Larger

CD-ROM

Operating Environment

Operating Temperature(in Centidegree)

-10~ 50

Storage Temperature(in Centidegree)

-20~ 60

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 12V/1A Adapter

Packing Information for XCAM1080PHA

Standard Packing List

A

Gift box : L:25.5cm W:17.0cm H:19.0cm (1pcs, 1.55kg/ box)

B

XCAM1080PHA camera

C

Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A

American standard: Model: GS12U12-P1I 12W/12V/1A: UL/CUL/BSMI/CB/FCC

EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338

EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard

European standard:Model:GS12E12-P1I 12W/12V/1A; TUV(GS)/CB/CE/ROHS

EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338

EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard

D

HDMI Cable

E

USB Mouse

F

High-speed USB2.0 A male to A male gold-plated connectors cable /2.0m

G

CD (Driver & utilities software, Ø12cm)

Optional Accessory

H

Adjustable lens adapter

C-Mount to Dia.23.2mm Eyepiece Tube
(Please choose 1 of them for your microscope)

108001/AMA037
108002/AMA050
108003/AMA075

C-Mount to Dia.31.75mm Eyepiece Tube
(Please choose 1 of them for your telescope)

108008/ATA037
108009/ATA050
108010/ATA075

I

Fixed lens Adapter

C-Mount to Dia.23.2mm Eyepiece Tube
(Please choose 1 of them for your microscope)

108005/FMA037
108006/FMA050
108007/FMA075

C-Mount to Dia.31.75mm Eyepiece Tube
(Please choose 1 of them for your telescope)

108011/FTA037
108012/FTA050
108013/FTA075

Note: For H and I optional items, please specify your camera type(C-mount, microscope camera or telescope camera), Jingtong engineer will help you to determine the right microscope or telescope camera adapter for your application;

J

108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube

K

108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube

L

Calibration kit

106011/TS-M1(X=0.01mm/100Div.);
106012/TS-M2(X,Y=0.01mm/100Div.);
106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)

M

SD Card(4G or 8G)
