UHCCD Series C-mount USB2.0 CCD Camera

UHCCD Series

USB2.0, high-speed transmission, professional image processing

Features


  • Standard C-Mount camera with SONY Super HAD CCD 0.8~5.2M sensor
  • USB2.0 interface ensuring high speed data transmission
  • Ultra-Fine color engine with perfect color reproduction capability
  • With advanced video & image processing application ToupView
  • Providing Windows/Linux/Mac OS multiple platforms SDK
  • Native C/C++, C#/VB.NET, DirectShow, Twain Control API

Tags: CCD CamerasC-mount CamerasUSB2.0 Cameras

Request a Quote?


Get Quote Live chat Email Phone

SONY CCD
Standard C-Mount
USB2.0 interface
Ultra-Fine color engine

UHCCD is an ultra-high performance Super HAD CCD camera. The camera adopts Sony Super HAD CCD sensor as the image-picking device; The Super HAD CCD is a version of Sony's high performance CCD HAD (Hole-Accumulation Diode) sensor with sharply improved sensitivity by the incorporation of a new semiconductor technology developed by Sony Corporation. USB2.0 is used as the data transfer interface.

UHCCD comes with advanced video & image processing application; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;

The UHCCD can be widely used in bright field light environment and microscope image capture and analysis.

UHCCD Series

UHCCD Series

Dimension of UHCCD

The UHCCD body, made from tough, zinc alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

Dimension of UHCCD Series

Dimension of UHCCD

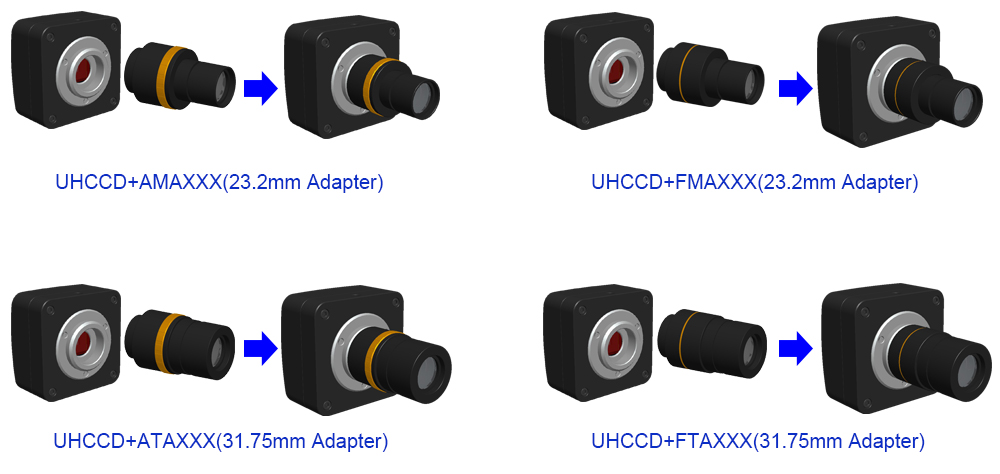

Extension of UHCCD with Microscope or Telescope Adapter

Extension


C-mount Camera

UHCCD Series

Machine vision; Medical imaging;
Semiconductor equipment; Test instruments;
Document scanners; 2D barcode readers;
Web camera and security video;
Microscope imaging;

Microscope Camera

Extension of UHCCD Series with Microscope or Telescope Adapter

Telescope Camera

Order Code

Sensor & Size(mm)

Pixel(μm)

G Sensitivity

Dark Signal

FPS/Resolution

Binning

Exposure

UHCCD05200KPA
TP705200A

5.2M/ICX655AQ(C)
2/3“ (8.44x7.07)

3.45x3.45

420mv with 1/30s

4mv with 1/30s

[email protected]
[email protected]

1x1

0.22ms~60s

UHCCD05100KPA
TP705100A

5.1M/ICX452AQ(C)
1/1.8“ (7.19x5.39)

2.775x2.775

260mv with 1/30s

16mv with 1/30s

[email protected]
[email protected]

1x1, 2x2

0.212ms~77ms

UHCCD05000KPA
TP705000A

5.0M/ICX282AQ(C)
2/3“ (8.70x6.53)

3.40x3.40

280mv with 1/30s

16mv with 1/30s

[email protected]
[email protected]

1x1, 2x2

0.203ms~60s

UHCCD03100KPB
TP703100B

3.1M/ICX252AQ(C)
1/1.8“ (7.06x5.30)

3.45x3.45

270mv with 1/30s

12mv with 1/30s

[email protected]
[email protected]

1x1,2x2

0.178ms~77ms,

UHCCD02000KPA
TP702000A

2.0M/ICX274AQ(C)
1/1.8“ (7.04x5.28)

4.40x4.40

420mv with 1/30s

8mv with 1/30s

[email protected]

1x1

0.135ms~60s

UHCCD01400KPA
TP701400A

1.4M/ICX205AK(C)
1/2“ (6.32x4.76)

4.65x4.65

400mv with 1/30s

16mv with 1/30s

[email protected]

1x1

0.227ms~60s

UHCCD01400KPB
TP701400B

1.4M/ICX205AK(C)
1/2“ (6.32x4.76)

4.65x4.65

400mv with 1/30s

16mv with 1/30s

[email protected]

1x1

0.127ms~60s

UHCCD01400KMB
TM701400B

1.4M/ICX205AL(M)
1/2“ (6.32x4.76)

4.65x4.65

450mv with 1/30s

16mv with 1/30s

[email protected]

1x1

0.127ms~60s

UHCCD00800KPA
TP700800A

0.8M/ICX204AK(C)
1/3“ (4.76x3.57)

4.65x4.65

400mv with 1/30s

6mv with 1/30s

[email protected]

1x1

0.16ms~60s

C:Color; M:Monochrome;

Other Specification for UHCCD

Spectral Range

380-650nm (with IR-cut Filter)

White Balance

ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor

Color Technique

Ultra-FineTM Color Engine/NA for Monochromatic Sensor

Capture/Control API

Native C/C++, C#/VB.NET, DirectShow, Twain and Labview

Recording System

Still Picture and Movie

Cooling System*

Natural

Operating Environment

Operating Temperature(in Centidegree)

-10~ 50

Storage Temperature(in Centidegree)

-20~ 60

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 5V over PC USB Port

Software Environment

Operating System

Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit)

OSx(Mac OS X)

Linux

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory:2GB or More

USB Port:USB2.0 High-speed Port

Display:17” or Larger

CD-ROM

Sample Images Captured with UHCCD Camera(UHCCD05100KPA)

The microscope slide images are captured with TPS002015 slide package and with UHCCD05100KPA camera.

Salt Crystals W.M.Comparative Hairs
Bacteria Three Types SmearYeast Smear
Chlamydomonas W.M.Fern Prothallus W.M.
Pine Leaf C.S.Corn Root Tip L.S.
Potato Sec.Paramecium W.M.
Butterfly Mounth Parts W.M.Grasshopper Wing W.M.
Epithelia Cell W.M.Human Blood Smear
Human Sperm Smear

Packing Information for UHCCD

Standard Camera Packing List

A

Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo

B

Gift box L:15cm W:15cm H:10cm (0.67~0.8Kg/ box)

C

UHCCD series camera

D

High-speed USB2.0 A male to B male gold-plated connectors cable /2.0m

E

CD (Driver & utilities software, Ø12cm)

Optional Accessory

F

Adjustable lens adapter

C-mount to Dia.23.2mm eyepiece tube
(Please choose 1 of them for your microscope)

108001/AMA037
108002/AMA050
108003/AMA075

C-mount to Dia.31.75mm eyepiece tube
(Please choose 1 of them for your telescope)

108008/ATA037
108009/ATA050
108010/ATA075

G

Fixed lens Adapter

C-mount to Dia.23.2mm eyepiece tube
(Please choose 1 of them for your microscope)

108005/FMA037
108006/FMA050
108007/FMA075

C-mount to Dia.31.75mm eyepiece tube
(Please choose 1 of them for your telescope)

108011/FTA037
108012/FTA050
108013/FTA075

Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera) , Jingtong engineer will help you to determine the right microscope or telescope camera adapter for your application;

H

108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube

I

108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube

J

108017(Dia.23.2mm to 31.75mm Ring)/ Adapter rings for 31.75mm eyepiece tube

K

Calibration kit

106011/TS-M1(X=0.01mm/100Div.);
106012/TS-M2(X,Y=0.01mm/100Div.);
106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
