MTR3CMOS Series TE-Cooling Digital C-mount USB3.0 CMOS Camera

  1. Microscope X
  2. Microscope Cameras
  3. MTR3CMOS Series
MTR3CMOS Series

high-speed transmission, USB3.0, advanced image & video processing

Features

  • Standard C-Mount camera with SONY Exmor CMOS sensors from 1.7M to 20M
  • Two-stage TE-cooling with controllable electric fan
  • Sensor chip cooling up to 42°C below ambient temperature
  • Working temperature can be regulated to specified temperature in 5 minutes
  • Smart structure to assure the heat radiation efficiency and avoid the moisture problem
  • IR-CUT/AR coated windows
  • Up to 1 hour long time exposure
  • USB3.0 5Gbit/second interface ensuring high speed data transmission
  • Ultra-FineTM color engine with perfect color reproduction capability
  • With advanced video & image processing application ToupView
  • Support both video and trigger modes
  • Providing Windows/Linux/Mac OS multiple platforms SDK
  • Native C/C++, C#/VB.NET, DirectShow, Twain control API

Tags: CMOS CamerasC-mount CamerasUSB3.0 CamerasCooled Cameras

Request a Quote?

Get Quote Live chat Email Phone
SONY CMOS
Standard C-Mount
Two-stage TE-cooling
IR-CUT/AR coated windows
Up to 1 hour long time exposure
Ultra-FineTM color engine
USB3.0 5Gbit/second interface

MTR3CMOScamera adopts SONY Exmor CMOS sensor as the image-picking device and USB3.0 is used as the transfer interface to increase the frame rate.

With the two-stage peltier cooling sensor chip to -42 degree below ambient temperature. This will greatly increase the signal to noise ratio and decrease the image noise. Smart structure is designed to assure the heat radiation efficiency and avoid the moisture problem. Electric fan is used to increase the heat radiation speed.

USB3.0 is used as the data transfer interface to increase the frame rate.

MTR3CMOS comes with advanced video & image processing application; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;

The MTR3CMOS can be widely used in low light environment and microscope fluorescence image capture and analysis, as well as the astronomy deep sky application.

MTR3CMOS Series

MTR3CMOS Series

MTR3CMOS Dimension

The MTR3CMOS body, made from tough, alloy with CNC technique, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT or AR to block the IR light or protect the camera sensor. The fan's vibration is minimized to the low level to eliminate the vibration caused imaging blur. This design ensures a rugged, robust solution with an increased lifespan when compared to the other industrial camera solutions.

Dimension of MTR3CMOS Series

Dimension of MTR3CMOS

Extension of MTR3CMOS with Microscope Adapter

Extension of MTR3CMOS with Microscope Adapter

Sample Photos Captured with MTR3CMOS Camera

Hot noise for the MTR3CMOS at Gain 20 , 600 second, 15 Centidegree

Hot noise for the MTR3CMOS at Gain 20 , 600 second, 15 Centidegree

Hot noise for the MTR3CMOS Gain 20 , 600 second, minus 15 Centidegree

Hot noise for the MTR3CMOS Gain 20 , 600 second, minus 15 Centidegree

Order Code

Sensor & Size(mm)

Pixel(μm)

G Sensitivity

Dark Signal

FPS/Resolution

Binning

Exposure

MTR3CMOS20000KPA
MTRP120000A(New)

20M/IMX183(C)
1 “(13.056x8.755)

2.4 x2.4

462mv with 1/30s
0.21mv with 1/30s

5@5440x3648

10@4096x2160

15@2736x1824

30@1824x1216

1x1,
1x1,
2x2,
3x3

0.1ms~3600s

MTR3CMOS20000KMA
MTRM120000A(New)

20M/IMX183(M)
1 “(13.056x8.755)

2.4 x2.4

388mv with 1/30s
0.21mv with 1/30s

(F8.0)

17.8@5440x3648

41@4096x2160

51@2736x1824

64@1824x1216

1x1,
1x1,
2x2,
3x3

0.1ms~3600s

MTR3CMOS16000KPA
MTRP116000A（New）

16M/MN34230PLJ(C)
4/3“ (17.6x13.3)

3.8x3.8

2413LSB
89.1LSB
(Gain = 0dB)

6@4640x3506
20@2304x1750
48@1536x1160

1x1
2x2
3x3

0.15ms~3600s

MTR3CMOS16000KMA
MTRM116000A（New）

16M/MN34230ALJ(M)
4/3“ (17.6x13.3)

3.8x3.8

2650LSB
89.1LSB
(Gain = 0dB)

22.5@4648x3506
43.0@2304x1750
48.0@1536x1168

1x1
2x2
3x3

0.15ms~3600s

MTR3CMOS10300KPA
MTRP110300A（New）

10.3M/IMX294(C)
4/3 “(17.47x12.86)

4.63 x4.63

419mv with 1/30s
0.12mv with 1/30s

7.5@3704x2778
10 @4096x2160
60 @2048x1080
96@1360x720

1x1,
1x1,
2x2,
3x3

0.15ms~3600s

MTR3CMOS07100KPA
MTRP107100A(New)

7.0M/IMX428(C)
1.1 “(14.4x9.9)

4.5 x4.5

2058mv with 1/30s
0.15mv with 1/30s

12@3200x2200

33@1600x1100

1x1

1x1

0.1ms~3600s

MTR3CMOS07100KMA
MTRM107100A(New)

7.0M/IMX428(M)
1.1 “(14.4x9.9)

4.5 x4.5

3354mv with 1/30s
0.15mv with 1/30s

51@3200x2200
133@1600x1100

1x1

2x2

0.1ms~3600s

MTR3CMOS01700KPA
MTRP101700A(New)

1.7M/IMX432(C)
1.1 “(14.4x9.9)

9.0 x9.0

4910mv with 1/30s
0.3mv with 1/30s

33@1600x1100

1x1

0.1ms~3600s

MTR3CMOS01700KMA
MTRM101700A(New)

1.7M/IMX432(M)
1.1 “(14.4x9.9)

9.0 x9.0

8100mv with 1/30s
0.3mv with 1/30s

94@1600x1100

1x1

0.1ms~3600s

C:Color; M:Monochrome;

Other Specification for MTR3CMOS Cameras

Spectral Range

380-650nm (with IR-cut Filter)

White Balance

ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor

Color Technique

Ultra-FineTM Color Engine/NA for Monochromatic Sensor

Capture/Control API

Native C/C++, C#/VB.NET, DirectShow, Twain and Labview

Recording System

Still Picture and Movie

Cooling System*

Two-stage TE-cooling System -45 °C below Camera Body Temperature

Operating Environment

Operating Temperature(in Centidegree)

-10~ 50

Storage Temperature(in Centidegree)

-20~ 60

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 5V over PC USB Port

External Power Adapter for Cooling System, DC12V, 3A

Software Environment

Operating System

Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit)

OSx(Mac OS X)

Linux

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory:2GB or More

USB Port:USB3.0 High-speed Port

Display:17” or Larger

CD-ROM

Image Captured with MTR3CMOS

RGB Image Captured with MTR3CMOS Camera

Red Fluorescent Image

Green Fluorescent Image

Blue Fluorescent Image

Fused Fluorescent Image

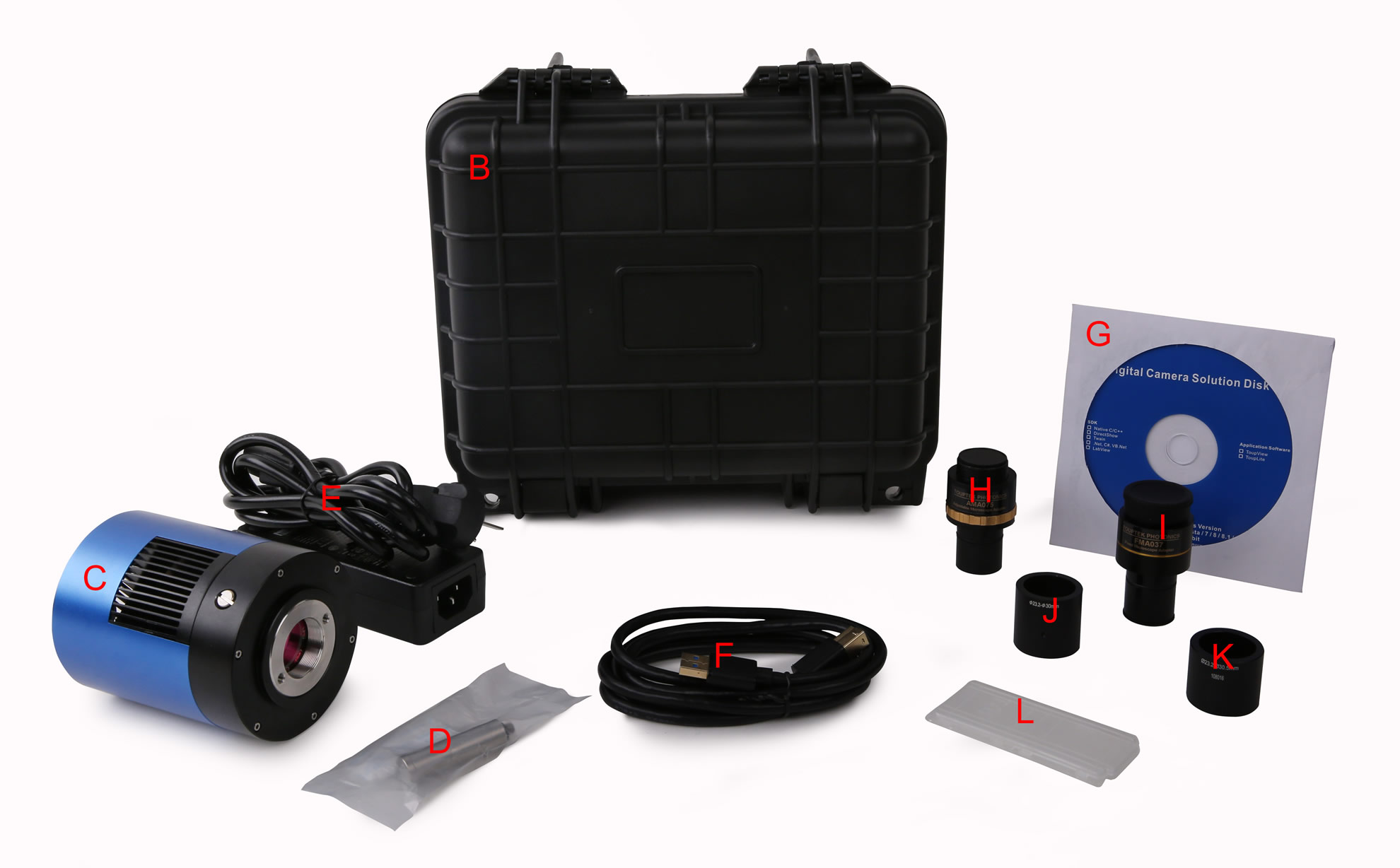

Packing Information for MTR3CMOS Camera

Packing Information for MTR3CMOS Camera

Standard Package

A

Carton L:50cm W:30cm H:30cm (20pcs, 12~17Kg/ carton), not shown in the photo(TBD)

B

3-A safety equipment case: L:28cm W:23cm H:15cm (1pcs, 2.8Kg/ box); Carton size:L:28.2cm W:25.2cm H:16.7cm(TBD)

C

MTR3CMOS camera(C-mount)

D

Drying tube and desiccant

E

Power adapter: input: AC 100~240V 50Hz/60Hz, output: DC12 V 3A

F

High-Speed USB3.0 A male to B male gold-plated connectors cable /1.5m

G

CD (Driver & utilities software, Ø12cm)

Optional Accessory

H

Adjustable lens adapter

C-mount to Dia.23.2mm eyepiece tube
(Please choose 1 of them for your microscope)

108001/AMA037
108002/AMA050
108003/AMA075

108004/AMA100

C-Mount to Dia.31.75mm eyepiece tube
(Please choose 1 of them for your telescope)

108008/ATA037
108009/ATA050
108010/ATA075

108011/ATA100

I

Fixed lens Adapter

C-mount to Dia.23.2mm eyepiece tube
(Please choose 1 of them for your microscope)

108005/FMA037
108006/FMA050
108007/FMA075

108008/FMA100

C-mount to Dia.31.75mm eyepiece tube
(Please choose 1 of them for your telescope)

108011/FTA037
108012/FTA050
108013/FTA075

108014/FTA100

Note: For H and I optional items, please specify your camera type(C-mount, microscope camera or telescope camera), Jingtong engineer will help you to determine the right microscope or telescope camera adapter for your application;

J

108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube

K

108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube

L

Calibration kit

106011/TS-M1(X=0.01mm/100Div.);
106012/TS-M2(X,Y=0.01mm/100Div.);
106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
