U3CMOS Series C-mount USB3.0 CMOS Camera

  1. Microscope X
  2. Microscope Cameras
  3. U3CMOS Series
U3CMOS Series

ultra-high performance, high-speed transmission, geometrical measurement, USB3.0, facilitate operation

Features

  • Standard C-Mount camera with Aptina CMOS sensor
  • With hardware resolution among 3.0M to 18M
  • Integrated zinc aluminum alloy housing
  • USB3.0 5 Gbps interface ensuring high frame rate

Tags: CMOS CamerasC-mount CamerasUSB3.0 Cameras

Request a Quote?

Get Quote Live chat Email Phone
Hardware resolution
3.0M to 18M
Standard C-Mount
Zinc aluminum alloy housing
USB3.0

U3CMOS is an ultra-high performance USB3.0 CMOS camera and it adopts ultra-high performance CMOS sensor as the image-picking device and USB3.0 is used as the data transfer interface.

U3CMOS hardware resolutions range from 3.0M to 14M and come with the integrated zinc aluminum alloy compact housing.

U3CMOS comes with advanced video & image processing application; Providing Windows/Linux/ OSX multiple platforms SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;

The U3CMOS can be widely used in bright field light environment and microscope image capture and analysis with higher frame rate.

U3CMOS Series

U3CMOS Series

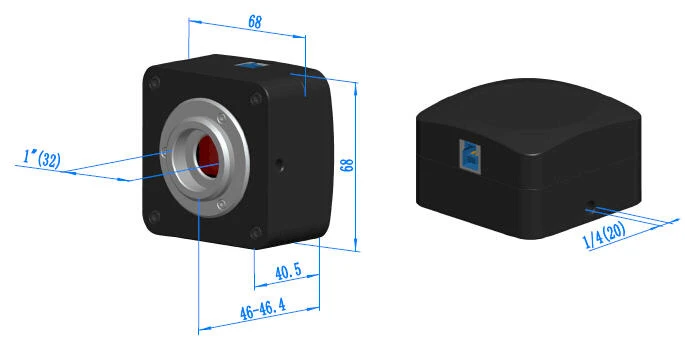

Dimension of U3CMOS

The U3CMOS body, made from tough, zinc alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

Dimension of U3CMOS

Dimension of U3CMOS

Extension of U3CMOS with Microscope or Telescope Adapter

Extension


C-mount Camera

U3CMOS Series

Machine vision; Medical imaging;
Semiconductor equipment; Test instruments;
Document scanners; 2D barcode readers;
Web camera and security video;
Microscope imaging;

Microscope Camera

Extension of U3CMOS with Microscope or Telescope Adapter

Telescope Camera

Order Code

Sensor & Size

Pixel(μm)

G Sensitivity

Dynamic range

SNRmax

FPS/Resolution

Binning

Exposure

U3CMOS18000KPA

TP118000A(New)

18M/AR1820(C)
1/2.3"(6.14x4.61)

1.25x1.25

0.62 V/lux-sec
65.8dB

36.3

5.6@4912x3684
18.1@2456x1842
32.2@1228x922

1x1,2x2,4x4

0.1ms~2000ms

U3CMOS16000KPA
TP116000A(New)

16M/MN34120(C)
1/2.33“(6.18x4.66)

1.335x1.335

R: 2453LSB

Gr: 2444LSB

Gb: 1054LSB

B: 996LSB

6.0@4632x3488
15.0@2320x1740
26.0@1536x1160

1x1, 2x2,3x3

0.2ms~2000ms

U3CMOS16000KPB
TP116000B(New)

16M/MN34230PLJ(C)
4/3“ (17.60x13.30)

3.8x3.8

R: 1315LSB

Gr: 2413LSB

Gb: 2413LSB

B: 1042LSB

(Gain = 0dB)

6.0@4648x3506
15.0@2304x1750
30.0@1536x1168

1x1,2x2,3x3

0.06ms~15s

U3CMOS16000KMB
TM116000B(New)

16M/MN34230ALJ(M)
4/3“ (17.60x13.30)

3.8x3.8

A: 2650LSB

B: 2650LSB

C: 2650LSB

D: 2650LSB

(Gain = 0dB)

22@4640x3506

36@3840x2160

43@2304x1750

43@1920x1080

49@1536x1168

1x1,
1x1,
2x2,
2x2,
3x3

0.224ms~15s

U3CMOS14000KPA
TP114000A

14M/MT9F002(C)
1/2.3“(5.73x4.60)

1.4x1.4

0.724v/lux-sec

65.3dB

35.5dB

6.2@4096x3286
20.8@2048x1644
53.3@1024x822

1x1,
2x2,

0.224ms~2000ms

U3CMOS10000KPA
TP110000A

10M/MT9J003(C)
1/2.3“ (5.98x4.58)

1.67x1.67

0.31v/lux-sec

65.2dB

34dB

7.2@3584x2746
24.5@1792x1372

1x1,2x2,4x4

0.4ms~2000ms

U3CMOS10000KMA
TM110000A

10M/MT9J003(M)
1/2.3“(5.98x4.58)

1.67x1.67

0.4v/lux-sec

65.2dB

34dB

7.2@3584x2746
24.5@1792x1372

1x1,2x2,4x4

0.4ms~2000ms

U3CMOS08500KPA
TP108500A

8.5M/Special(C)
1/2.4“(5.56x4.26)

1.67x1.67

0.31v/lux-sec

65.2dB

34dB

8.3@3328x2548
26.2@1664x1272

1x1,2x2,4x4

0.1ms~2000ms

U3CMOS05100KPA
TP105100A

5.1M/MT9P006(C)
1/2.5“ (5.70x4.28)

2.2x2.2

1.76v/lux-sec

67.74dB

38.5dB

14.2@2560x1922
38.3@1280x960
101.2@640x480

1x1,2x2,4x4

0.1ms~2000ms

U3CMOS03100KPA
TP103100A

3.1M/AR0330(C)
1/3“ (4.51x3.38)

2.2x2.2

1.9v/lux-sec

100dB

39dB

27.3@2048x1534
53.3@1024x770

1x1, 2x2

0.1ms~2000ms

C: Color; M: Monochrome;

Other Specification for U3CMOS Camera

Spectral Range

380-650nm (with IR-cut Filter)

White Balance

ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor

Color Technique

Ultra-FineTM Color Engine/NA for Monochromatic Sensor

Capture/Control API

Native C/C++, C#/VB.NET, DirectShow, Twain and Labview

Recording System

Still Picture and Movie

Cooling System*

Natural

Operating Environment

Operating Temperature(in Centidegree)

-10~ 50

Storage Temperature(in Centidegree)

-20~ 60

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 5V over PC USB Port

Software Environment

Operating System

Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit)

OSx(Mac OS X)

Linux

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory:2GB or More

USB Port:USB3..0 High-speed Port

Display:17” or Larger

CD-ROM

Packing Information for U3CMOS

Standard Camera Packing List

A

Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo

B

Gift box L:15cm W:15cm H:10cm (0.67~0.7Kg/ box)

C

U3CMOS series USB3.0 C-mount CMOS camera

D

High-speed USB3.0 A male to B male gold-plated connectors cable /2.0m

E

CD (Driver & utilities software, Ø12cm)

Optional Accessory

F

Adjustable lens adapter

C-mount to Dia.23.2mm eyepiece tube
(Please choose 1 of them for your microscope)

108001/AMA037
108002/AMA050
108003/AMA075

C-mount to Dia.31.75mm eyepiece tube
(Please choose 1 of them for your telescope)

108008/ATA037
108009/ATA050
108010/ATA075

G

Fixed lens Adapter

C-mount to Dia.23.2mm eyepiece tube
(Please choose 1 of them for your microscope)

108005/FMA037
108006/FMA050
108007/FMA075

C-Mount to Dia.31.75mm Eyepiece Tube
(Please choose 1 of them for your telescope)

108011/FTA037
108012/FTA050
108013/FTA075

Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera) , Jingtong engineer will help you to determine the right microscope or telescope camera adapter for your application;

H

108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube

I

108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube

J

108017(Dia.23.2mm to 31.75mm Ring)/ Adapter rings for 31.75mm eyepiece tube

K

Calibration kit

106011/TS-M1(X=0.01mm/100Div.);
106012/TS-M2(X,Y=0.01mm/100Div.);
106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
