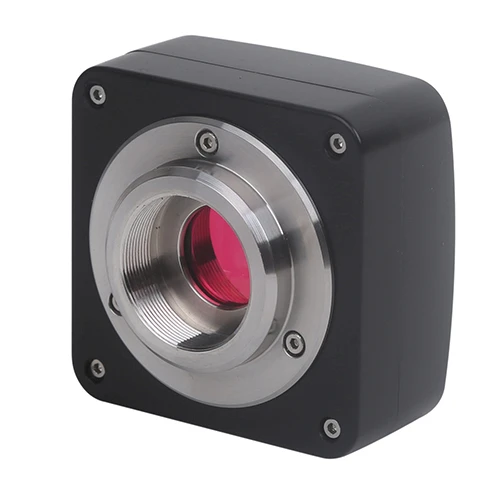

ECMOS Series C-mount USB2.0 CMOS Camera

ECMOS Series

high-speed transmission, USB, excellent color restoration

Features


  • SONY Exmor, Exmor R(Back-illuminated), Exmor RS CMOS sensor with USB2.0 interface
  • Real-time 8/12/14/16bit depth switch(depending on sensor)
  • Super high sensitivity up to 2040mV(IMX224)
  • Ultra low noise and low power dissipation by using column-parallel A/D conversion
  • With hardware resolution among 1.2M to 8.3M
  • Rolling Shutter
  • Standard C-Mount camera
  • CNC aluminum alloy housing
  • USB2.0 interface ensuring high speed data transmission
  • With advanced video & image processing application ToupView
  • Providing Windows/Linux/Mac OS multiple platforms SDK
  • Native C/C++, C#/VB.Net, DirectShow, Twain

Tags: CMOS CamerasC-mount CamerasUSB2.0 Cameras

Request a Quote?


Get Quote Live chat Email Phone

Super high sensitivity
up to 2040mV (IMX224)
Hardware resolution
1.2M to 8.3M
Rolling Shutter
Standard C-Mount camera
CNC aluminum alloy housing
USB2.0 interface

ECMOS adopt SONY ExmorCMOS sensor as the image-picking device and USB2.0 is used as the data transfer interface.

ECMOS hardware resolutions range from 1.2M to 8.3M and come with the integrated CNC aluminum alloy compact housing.

ECMOS comes with advanced video & image processing application; Providing Windows/Linux/ OSX multiple platforms SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;

The ECMOS can be widely used in bright field light environment and microscope image capture and analysis with higher frame rate.

ECMOS Series

ECMOS Series

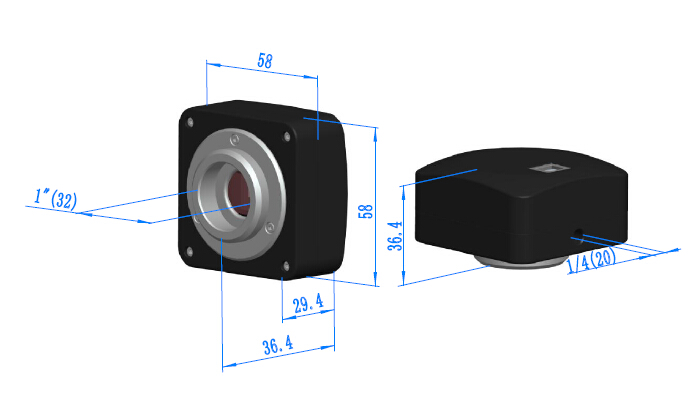

Dimension of ECMOS

The ECMOS body, made from tough, CNC aluminum alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

Dimension of ECMOS

Dimension of ECMOS

Extension of ECMOS with Microscope or Telescope Adapter

Extension


C-mount Camera

ECMOS Series

Machine vision; Medical imaging;
Semiconductor equipment; Test instruments;
Document scanners; 2D barcode readers;
Web camera and security video;
Microscope imaging;

Microscope Camera

Extension of ECMOS with Microscope or Telescope Adapter

Telescope Camera

Order Code

Sensor & Size(mm)

Pixel(μm)

G Sensitivity

Dark Signal

FPS/Resolution

Binning

Exposure

ECMOS08300KPA

EP608300A(New)

8.3M/IMX274(C)

1/2.5”(6.22x3.50)

1.62x1.62

236mv with 1/30s

0.1mv with 1/30s

[email protected]

[email protected]

1x1

2x2

0.244ms~15s

ECMOS06600KPA

EP606600A(New)

6.6M/IMX326(C)

1/2.9”(4.98x3.50)

1.62x1.62

236mv with 1/30s

0.1mv with 1/30s

[email protected]

[email protected]

[email protected]

[email protected]

1x1

1x1

1x1

1x1

0.244ms~15s

ECMOS05300KPA

EP605300A

5.3M/IMX178(C)

1/1.9“ (7.37x4.15)

2.4x2.4

425mv with 1/30s

0.15mv with 1/30s

[email protected] x1728
[email protected]

1x1,

2x2

0.105ms~15s

ECMOS05000KPA

EP605000A(New)

5.0M/IMX335(C)

1/2.8“ (5.18x3.89)

2.0x2.0

505mv with 1/30s

0.13mv with 1/30s

[email protected] x1944
[email protected]

1x1,

2x2

0.1ms~15s

ECMOS03100KPA

EP603100A

3.1M/IMX123(C)

1/2.8“ (5.12x3.84)

2.5x2.5

600mv with 1/30s

0.15mv with 1/30s

[email protected]
[email protected]

1x1

0.105ms~15s

ECMOS02000KPA

EP602000A

2.0M/IMX290(C)

1/2.8“(5.56x3.13)

2.9 x2.9

1300mv with 1/30s

0.15mv with 1/30s

[email protected]

1x1

0.105ms~15s

ECMOS01200KPA

EP601200A

1.2M/IMX224(C)

1/3“(4.80x3.60)

3.75 x3.75

2040mv with 1/30s

0.15mv with 1/30s

[email protected]

[email protected]

1x1,

2x2

0.105ms~15s

C: Color; M: Monochrome;

Other Specification for ECMOS Camera

Spectral Range

380-650nm (with IR-cut Filter)

White Balance

ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor

Color Technique

Ultra-FineTM Color Engine/NA for Monochromatic Sensor

Capture/Control API

Native C/C++, C# /VB.Net, DirectShow, Twain

Recording System

Still Picture and Movie

Cooling System*

Natural

Operating Environment

Operating Temperature(in Centidegree)

-10~ 50

Storage Temperature(in Centidegree)

-20~ 60

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 5V over PC USB Port

Software Environment

Operating System

Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit)

OSx(Mac OS X)

Linux

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory: 2GB or More

USB Port: USB2.0 Port

Display: 17” or Larger

CD-ROM

Packing Information for ECMOS

Standard Camera Packing List

A

Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo

B

Gift box L:15cm W:15cm H:10cm (0.5~0.55Kg/ box)

C

ECMOS series USB2.0 C-mount CMOS camera

D

High-speed USB2.0 A male to B male gold-plated connectors cable /2.0m

E

CD (Driver & utilities software, Ø12cm)

Optional Accessory

F

Adjustable lens adapter

C-mount to Dia.23.2mm eyepiece tube
(Please choose 1 of them for your microscope)

108001/AMA037
108002/AMA050
108003/AMA075

C-mount to Dia.31.75mm eyepiece tube
(Please choose 1 of them for your telescope)

108008/ATA037
108009/ATA050
108010/ATA075

G

Fixed lens Adapter

C-mount to Dia.23.2mm eyepiece tube
(Please choose 1 of them for your microscope)

108005/FMA037
108006/FMA050
108007/FMA075

C-Mount to Dia.31.75mm Eyepiece Tube
(Please choose 1 of them for your telescope)

108011/FTA037
108012/FTA050
108013/FTA075

Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera) , Jingtong engineer will help you to determine the right microscope or telescope camera adapter for your application;

H

108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube

I

108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube

J

108017(Dia.23.2mm to 31.75mm Ring)/ Adapter rings for 31.75mm eyepiece tube

K

Calibration kit

106011/TS-M1(X=0.01mm/100Div.);
106012/TS-M2(X,Y=0.01mm/100Div.);
106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
