LCMOS Series C-mount USB2.0 CMOS Camera

LCMOS Series

stable performance, USB

Features


  • Stand C-Mount camera with Aptina CMOS sensor
  • With hardware resolution among 1.2M to 14M
  • On-board memory for perfect synchronization,higher frame rate and stable performance
  • High performance cooling structure, ensures low image noise
  • USB2.0 interface ensuring high speed data transmission
  • Ultra-FineTM color engine with perfect color reproduction capability

Tags: CMOS CamerasC-mount CamerasUSB2.0 Cameras

Request a Quote?


Get Quote Live chat Email Phone

Hardware resolution
1.2M to 14M
Stand C-Mount
On-board memory
Cooling structure
Low image noise
Ultra-FineTM color engine
USB2.0

LCMOS is luxurious USB2.0 CMOS camera with frame buffers and it adopts ultra-high performance CMOS sensor as the image-picking device, and USB2.0 is used as the data transfer interface.

LCMOS comes with advanced video & image processing application; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;

The LCMOS can be widely used in bright field environment and microscope image capture and analysis with moderate speed.

LCMOS Series

LCMOS Series

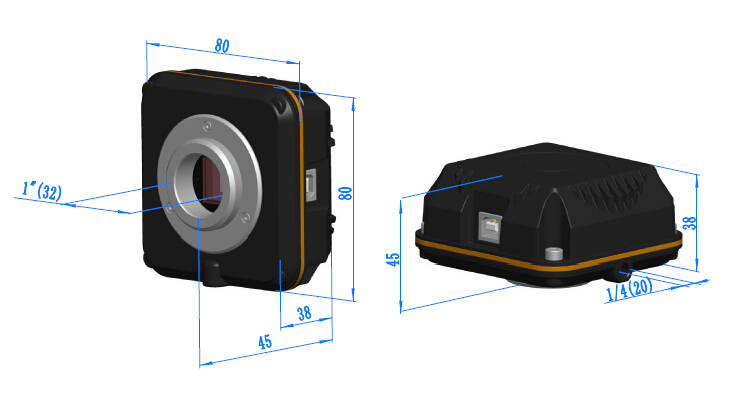

Dimension of LCMOS

The LCMOS body, made from tough, aluminum alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

Dimension of LCMOS

Dimension of LCMOS

Extension of LCMOS with Microscope or Telescope Adapter

Extension


C-mount Camera

LCMOS Series

Machine vision; Medical imaging;
Semiconductor equipment; Test instruments;
Document scanners; 2D barcode readers;
Web camera and security video;
Microscope imaging;

Microscope Camera

Extension of LCMOS with Microscope or Telescope Adapter

Telescope Camera

Order Code

Sensor & Size(mm)

Pixel(μm)

G Sensitivity

Dynamic range

SNRmax

FPS/Resolution

Binning

Exposure

LCMOS14000KPA

LP614000A

14M/MT9F002(C)

1/2.3”(5.73x4.60)

1.4x1.4

0.724v/lux-sec

65.3dB

35.5dB

[email protected]

[email protected]

[email protected] x822

1x1, 2x2, 4x4

0.4ms~2000ms

LCMOS10000KPA

LP610000A

10M/MT9J003(C)

1/2.3“ (5.98x4.59)

1.67x1.67

0.31v/lux-sec

65.2dB

34dB

[email protected]

[email protected]

[email protected] x684

1x1, 2x2, 4x4

0.4ms~2000ms

LCMOS09000KPB

LP609000B

9M/Special(C)

1/2.4“(5.83x4.37)

1.67x1.67

0.31v/lux-sec

65.2dB

34dB

[email protected]

[email protected]

[email protected] x654

1x1, 2x2, 4x4

0.4ms~2000ms

LCMOS08000KPB

LP608000B

8M/Special(C)

1/2.5“(5.45x4.09)

1.67x1.67

0.31v/lux-sec

65.2dB

34dB

[email protected]

[email protected]

[email protected]

1x1, 2x2, 4x4

0.4ms~2000ms

LCMOS05100KPA

LP605100A

5.1M/MT9P001(C)

1/2.5“(5.70x4.28)

2.2x2.2

0.53 V/lux-sec

66.5dB

40.5dB

[email protected]

[email protected]

[email protected]

1x1, 2x2, 4x4

0.294ms~2000ms

LCMOS03100KPA

LP603100A

3.1M/MT9T001(C)

1/2“(6.55x4.92)

3.2x3.2

1.0 V/lux-sec

61dB

43dB

[email protected]

[email protected]

[email protected]

1x1, 2x2, 3x3

0.244ms~2000ms

LCMOS03100KPB

LP603100B

3.1M/IMX036(C)

1/2.8"(5.12x3.84)

2.5x2.5

200mv with 1/30s

0.5mv with 1/30s

[email protected]

[email protected]

[email protected]

1x1,2x2,3x3

0.244ms~2000ms

LCMOS02000KPB

LP602000B

2.0M/Special(C)

1/2.6“(5.12x3.84)

3.2x3.2

1.0 V/lux-sec

61dB

43dB

[email protected]

[email protected]

1x1, 2x2

0.244ms~2000ms

LCMOS01300KPA

LP601300A

1.3M/MT9M111(C)

1/3“(4.60x3.70)

3.6x3.6

2.1V/lux-sec

68.2dB

45dB

[email protected]

[email protected]

[email protected]

1x1, 2x2, 4x4

0.14ms~2000ms

LCMOS01200KPB

LP601200B

1.2M/AR0130(C)

1/3“(4.80x3.60)

3.75 x3.75

5.5v/lux-sec

85.3dB

44dB

[email protected]

[email protected]

1x1, 2x2

0.4ms~2000ms

C: Color; M: Monochrome;

Other Specification for LCMOS Cameras

Spectral Range

380-650nm (with IR-cut Filter)

White Balance

ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor

Color Technique

Ultra-FineTM Color Engine/NA for Monochromatic Sensor

Capture/Control API

Native C/C++, C#/VB.NET, DirectShow, Twain and Labview

Recording System

Still Picture and Movie

Cooling System*

Natural with High Performance Cooling Structure

Operating Environment

Operating Temperature(in Centidegree)

-10~ 50

Storage Temperature(in Centidegree)

-20~ 60

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 5V over PC USB Port

Software Environment

Operating System

Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit),OSx(Mac OS X),Linux

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory:2GB or More

USB Port:USB2.0 High-speed Port

Display:17” or Larger

CD-ROM

Packing Information for LCMOS

Standard Camera Packing List

A

Carton L:40cm W:36cm H:36cm (16pcs, 12~17Kg/ carton), not shown in the photo

B

Gift box L:16.4cm W:16.4cm H:9.6cm (0.7~0.8Kg/ box)

C

LCMOS series USB2.0 C-mount CMOS camera

D

High-speed USB2.0 A male to B male gold-plated connectors cable /2.0m

E

CD (Driver & utilities software, Ø12cm)

Optional Accessory

F

Adjustable lens adapter

C-mount to Dia.23.2mm eyepiece tube
(Please choose 1 of them for your microscope)

108001/AMA037
108002/AMA050
108003/AMA075

C-mount to Dia.31.75mm eyepiece tube
(Please choose 1 of them for your telescope)

108008/ATA037
108009/ATA050
108010/ATA075

G

Fixed lens Adapter

C-mount to Dia.23.2mm eyepiece tube
(Please choose 1 of them for your microscope)

108005/FMA037
108006/FMA050
108007/FMA075

C-mount to Dia.31.75mm eyepiece tube
(Please choose 1 of them for your telescope)

108011/FTA037
108012/FTA050
108013/FTA075

Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera) , Jingtong engineer will help you to determine the right microscope or telescope camera adapter for your application;

H

108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube

I

108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube

J

108017(Dia.23.2mm to 31.75mm Ring)/ Adapter rings for 31.75mm eyepiece tube

K

Calibration kit

106011/TS-M1(X=0.01mm/100Div.);
106012/TS-M2(X,Y=0.01mm/100Div.);
106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
