WCAM Series C-mount WiFi CMOS Camera

WCAM Series

simultaneous multiple matches, stable & convenient operation

Features


  • C-Mount camera has 25.4 mm or 1 inch diameter with 32 threads per inch
  • Scientific research grade camera with Aptina CMOS sensor
  • Sends H.264 encodec high-resolution images from a microscope to WiFi-enabled smartphones, computers, and tablets with iOS, Android, and Windows operating systems
  • Streams images to several devices simultaneously
  • Integrated zinc aluminum alloy housing
  • Ultra-FineTM color engine with perfect color reproduction capability
  • With advanced video & image processing application ToupView(only support simple video viewing capturing for IOS/ android system)
  • Custom programmable with SDK provided(Windows/Linux/OS)

Tags: CMOS CamerasC-mount CamerasWIFI Cameras

Request a Quote?


Get Quote Live chat Email Phone

Streams images to
several devices
Scientific research grade
simultaneously
Zinc aluminum alloy housing
Ultra-FineTM color engine

WCAM is WiFi camera and it adopts ultra-high performance CMOS sensor as the image-picking device. WiFi is used as the data transfer interface.

When the WCAM is attached to the eyepiece of a microscope and started, it will and generates a WiFi signal for sending high-resolution images from a microscope to WiFi-enabled devices such as smartphones, tablets, and computers with iOS, Android, OS X, Linux and Windows operating systems, streaming images to up to six devices simultaneously.

The camera includes images software for quantifying, measuring, and annotating images and for using with an interactive white board. It also works with the free, downloadable Toupviewt app for viewing, capturing, and editing images.

WCAM SeriesWCAM Series and Microscope

WCAM Series and Microscope

Dimension of WCAM

The WCAM body, made from tough, zinc alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

Dimension of WCAM

Dimension of WCAM

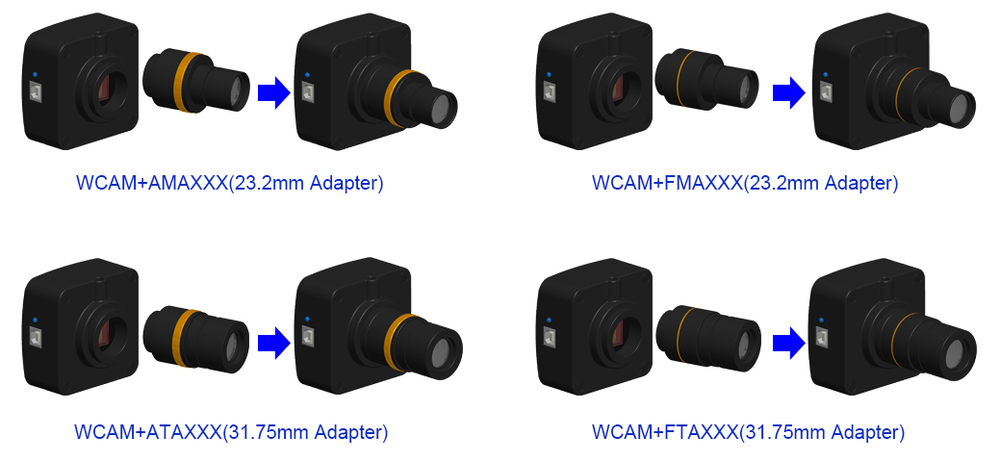

Extension of WCAM with Microscope or Telescope Adapter

Extension


C-mount Camera

WCAM Series

Machine vision; Medical imaging;
Semiconductor equipment; Test instruments;
Document scanners; 2D barcode readers;
Web camera and security video;
Microscope imaging;

Microscope Camera

Extension of WCAM with Microscope or Telescope Adapter

Telescope Camera

Order Code

Sensor Size(mm)

Pixel(μm)

G Sensitivity

Dynamic range

SNRmax

FPS/Resolution

Binning

Exposure(ms)

WCAM1080PA
WP601080A

1080P/IMX222 (C)
1/2.8“ (5.38x3.02)

2.8x2.8

510mV with 1/30s
0.15mv with 1/30s

[email protected]

1x1

0.059ms~1941ms

WCAM0720PA
WP600720A(Suspended)

720P/MT9P001 (C)
1/2.5“ (5.63x3.17)

2.2x2.2

1.0 V/lux-sec

61dB

43dB

[email protected]

2x2

0.21ms~200ms

WCAM0720PB
WP600720B

720P/MT9P001 (C)
1/2.5“ (5.63x3.17))

2.2x2.2

1.0 V/lux-sec

61dB

43dB

[email protected]

2x2

Auto Exposure

WCAM0300KPA
WP600300KA

0.3M/MT9V011 (C)
1/4“ (3.58 x 2.69)

5.6x5.6

1.9V/lux-sec

60dB

45dB

[email protected]

1x1

Auto Exposure

C: Color; M: Monochrome;

Other Specification for WCAM Camera

Spectral Range

380-650nm (with IR-cut Filter)

White Balance

Whole Area White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor

Color Technique

Ultra-FineTM Color Engine/NA for Monochromatic Sensor

Capture/Control API

Native C/C++, C#/VB.NET, DirectShow, Twain and Labview

Recording System

Still Picture and Movie

Cooling System*

Natural

Maximum Connected Devices

<=3

Operating Environment

Operating Temperature(in Centidegree)

-10~ 50

Storage Temperature(in Centidegree)

-20~ 60

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

USB Charger, Not Recommend PC USB Port

Software Environment

Operating System

Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit)

IOS IPAD or IPhone, Android PAD and Phone

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory:2GB or More

WiFi Adapter with DHCP Enabled

Display:17” or Larger

CD-ROM

PAD

IPAD or PAD with Android System

Mobile Phone

IPhone or Smart Phone with Android System

Packing Information for WCAM

Standard Camera Packing List

A

Carton L:52cm W:32cm H:33cm (20pcs, 11.4~14Kg/ carton), not shown in the photo

B

Gift box L:15cm W:15cm H:10cm (0.57~0.58Kg/ box)

C

WCAM series USB2.0 C-mount CMOS camera

D

High-speed USB2.0 A male to B male gold-plated connectors cable /2.0m(for PC power only) or with USB charger

E

CD (Driver & utilities software, Ø12cm)

Optional Accessory

F

Adjustable lens adapter

C-mount to Dia.23.2mm eyepiece tube
(Please choose 1 of them for your microscope)

108001/AMA037
108002/AMA050
108003/AMA075

C-mount to Dia.31.75mm eyepiece tube
(Please choose 1 of them for your telescope)

108008/ATA037
108009/ATA050
108010/ATA075

G

Fixed lens Adapter

C-mount to Dia.23.2mm eyepiece Tube
(Please choose 1 of them for your microscope)

108005/FMA037
108006/FMA050
108007/FMA075

C-mount to Dia.31.75mm eyepiece Tube
(Please choose 1 of them for your telescope)

108011/FTA037
108012/FTA050
108013/FTA075

Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera), Jingtong engineer will help you to determine the right microscope or telescope camera adapter for your application;

H

108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube

I

108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube

J

108017(Dia.23.2mm to 31.75mm Ring)/ Adapter rings for 31.75mm eyepiece tube

K

Calibration kit

106011/TS-M1(X=0.01mm/100Div.);
106012/TS-M2(X,Y=0.01mm/100Div.);
106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
