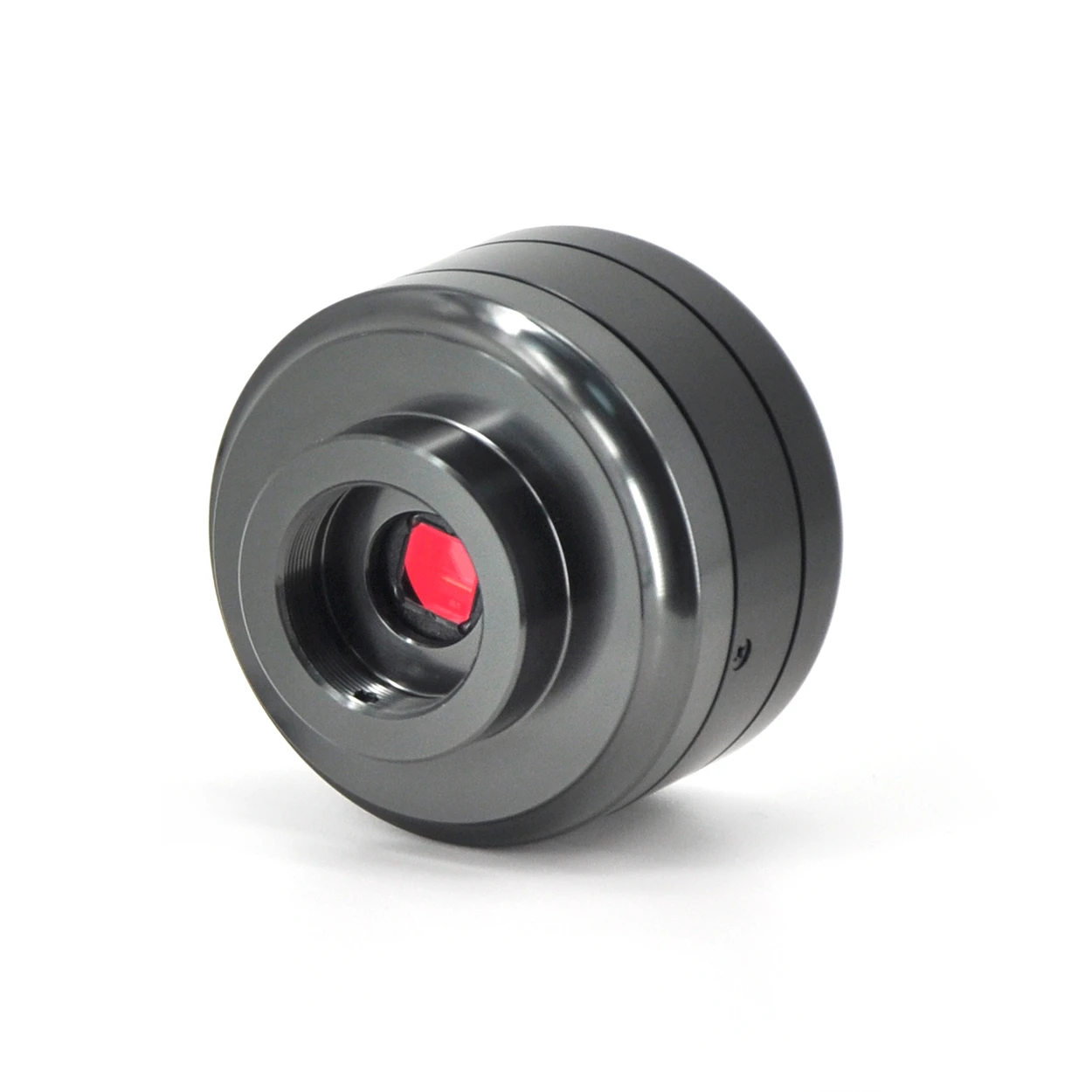

DM210 HDMI Digital Eyepiece Camera (Biological Microscope)

DM210

match for biological microscope, excellent performance, HDMI 1080P

Features


  • Super wide dynamic , super low intensity of illumination
  • HDMI 1080P 60fps preview 30fps record
  • Multi modes are provided on exposure and white balance
  • User defined crop selected cross line
  • TF card slot Maximum support 128G, support hot plug
  • 4X digital zoom
  • Extra-hard wear-resistant aluminum alloy housing

Tags: Digital Eyepiece CamerasHDMI CamerasCMOS Cameras

Request a Quote?


Get Quote Live chat Email Phone

TF card
128G
HDMI 1080P
support hot plug
4X digital zoom
  • Super wide dynamic , super low intensity of illumination
  • HDMI 1080P 60fps preview 30fps record
  • Multi modes are provided on exposure and white balance
  • User defined crop selected cross line
  • TF card slot Maximum support 128G, support hot plug
  • 4X digital zoom
  • Extra-hard wear-resistant aluminum alloy housing

DM210DM210s Back Panel

DM210 and its Back Panel

Different View of DM210Different View of DM210

Different Views of DM210

Different View of DM210Different View of DM210
Different Views of DM210

DM210 and its Biological Microscope + Display

DM210 and its Biological Microscope + Display

Hardware Configuration

Image Sensor

SONY CMOS IMX291 super wide dynamic CMOS Sensor

Expose mode

Rolling shutter

Maximum Resolution

1920 x 1080(2,073,600 pixels)

Sensor Optical Format

1/2.8'' (6.058mm(H) x 4.415mm(V))

Pixel Size

2.9μm x 2.9μm

Dynamic Range

128dB

SNRmax

30dB

Spectral Charactristics

380-650nm

Exposure Capability

Real-time auto, Single auto, Manual adjustment

White Balance

Real-time auto, Single auto, Manual adjust R G B seperately

HDMI Output Resolution

1920X1080P60,1920X1080P50,1920X1080P30,1920X1080P25,1920X1080I60,

1920X1080I50,1280X720P60,1280X720P50,640X480P60

(Auto adjust according to displayer)

Record format

Snapshot

Picture Format:JPG

Resolution:1920x1080

Record

Video Format:MOV

Resolution:1920X1080P30,1280x720P120,1280x720P60

Record Route

TF card(Maximum support 128G,support hot plug)

Interface Parameter

Camera Interface

C mount thread(1"×1/32)

Wired picture interface

HDMI TYPE C Mini HDMI

Charger interface

Micro USB,DC5.0V (Maximum current 1A)

Software Environment

Displayer

Recommend 16:9 , at least 1080P HD displayer

Operating Environment

Operating Temperature

0℃~ 40℃

Storage Temperature

-20℃~ 60℃

Operating Humidity

30~60%RH

Storage Humidity

10~80%RH

Sample Photos Captured with DM210

Human Skin Sweat Gland sec.

4X Objective

10X Objective

40X Objective

Dog Ileum c.s.

4X Objective

10X Objective

40X Objective
