DM210 HDMI Digital Eyepiece Camera (Stereo Microscope)

DM210

match for stereo microscope, HDMI 1080P

Features


  • Super wide dynamic , super low intensity of illumination
  • HDMI 1080P 60fps preview 30fps record
  • Multi modes are provided on exposure and white balance
  • User defined crop selected cross line
  • TF card slot Maximum support 128G, support hot plug
  • 4X digital zoom
  • Extra-hard wear-resistant aluminum alloy housing

Tags: Digital Eyepiece CamerasHDMI CamerasCMOS Cameras

Request a Quote?


Get Quote Live chat Email Phone

HDMI 1080P
4X digital zoom
aluminum alloy housing
SONY CMOS
  • Super wide dynamic , super low intensity of illumination
  • HDMI 1080P 60fps preview 30fps record
  • Multi modes are provided on exposure and white balance
  • User defined crop selected cross line
  • TF card slot Maximum support 128G, support hot plug
  • 4X digital zoom
  • Extra-hard wear-resistant aluminum alloy housing

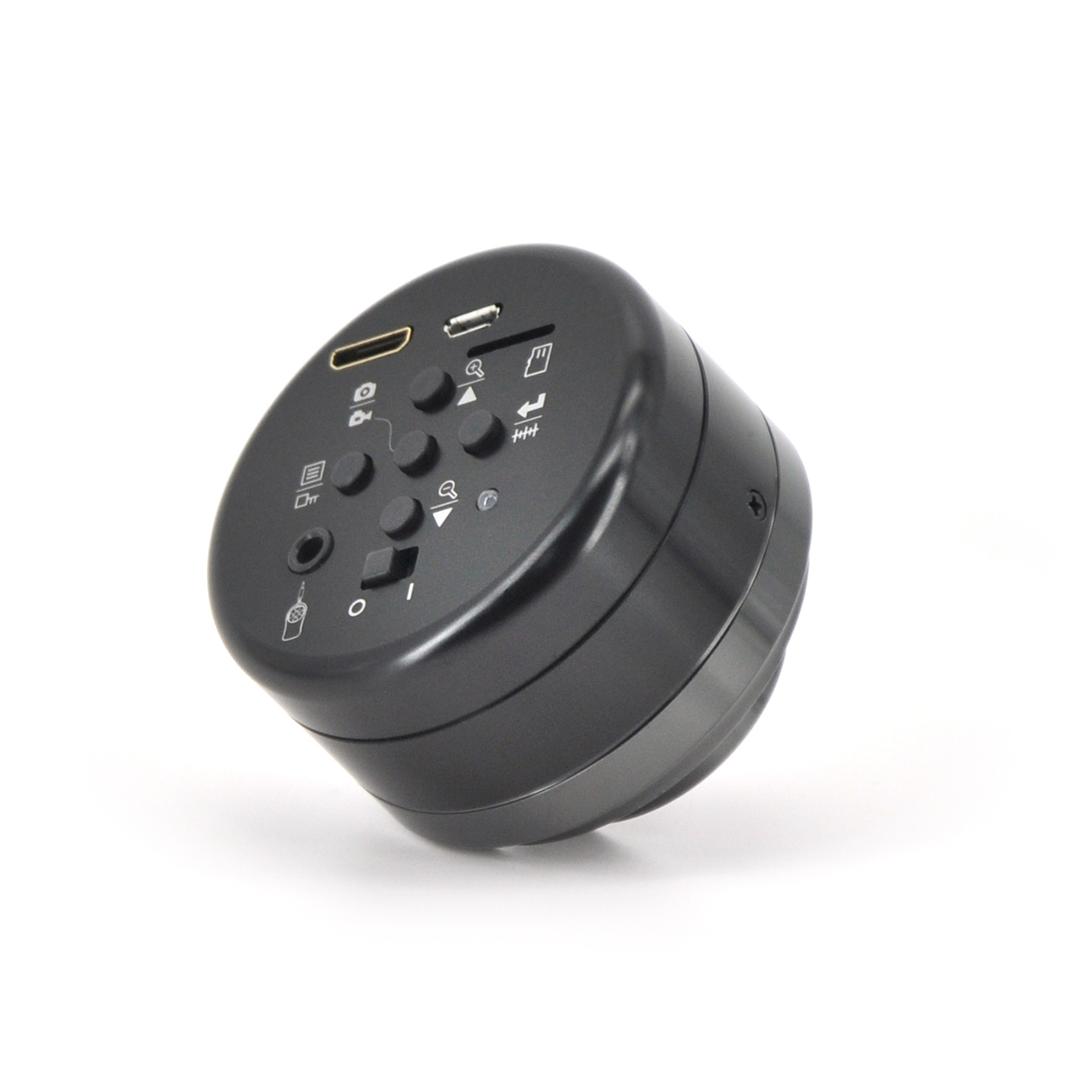

DM210DM210's Back Panel

DM210 and its Back Panel

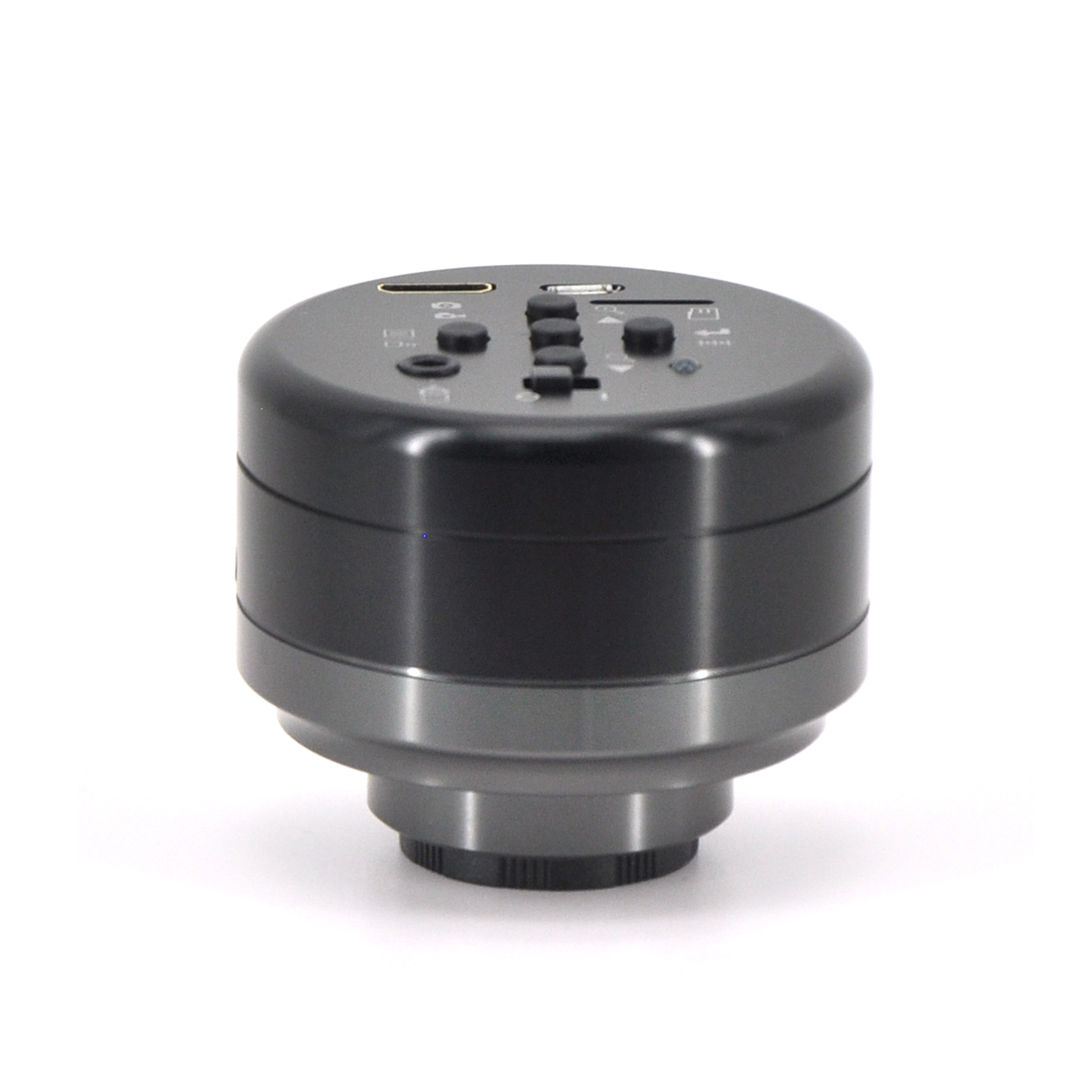

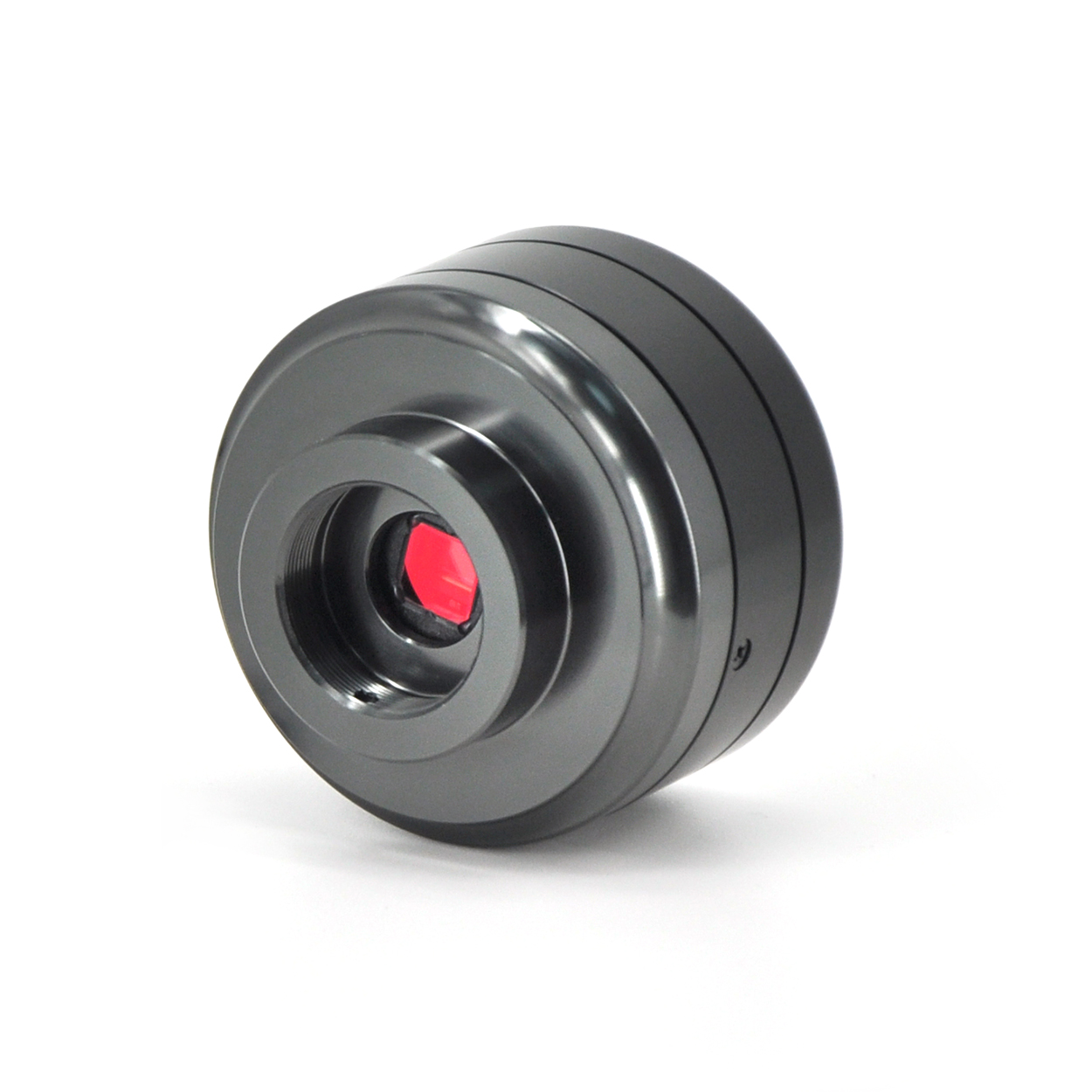

Different View of DM210Different View of DM210

Different Views of DM210

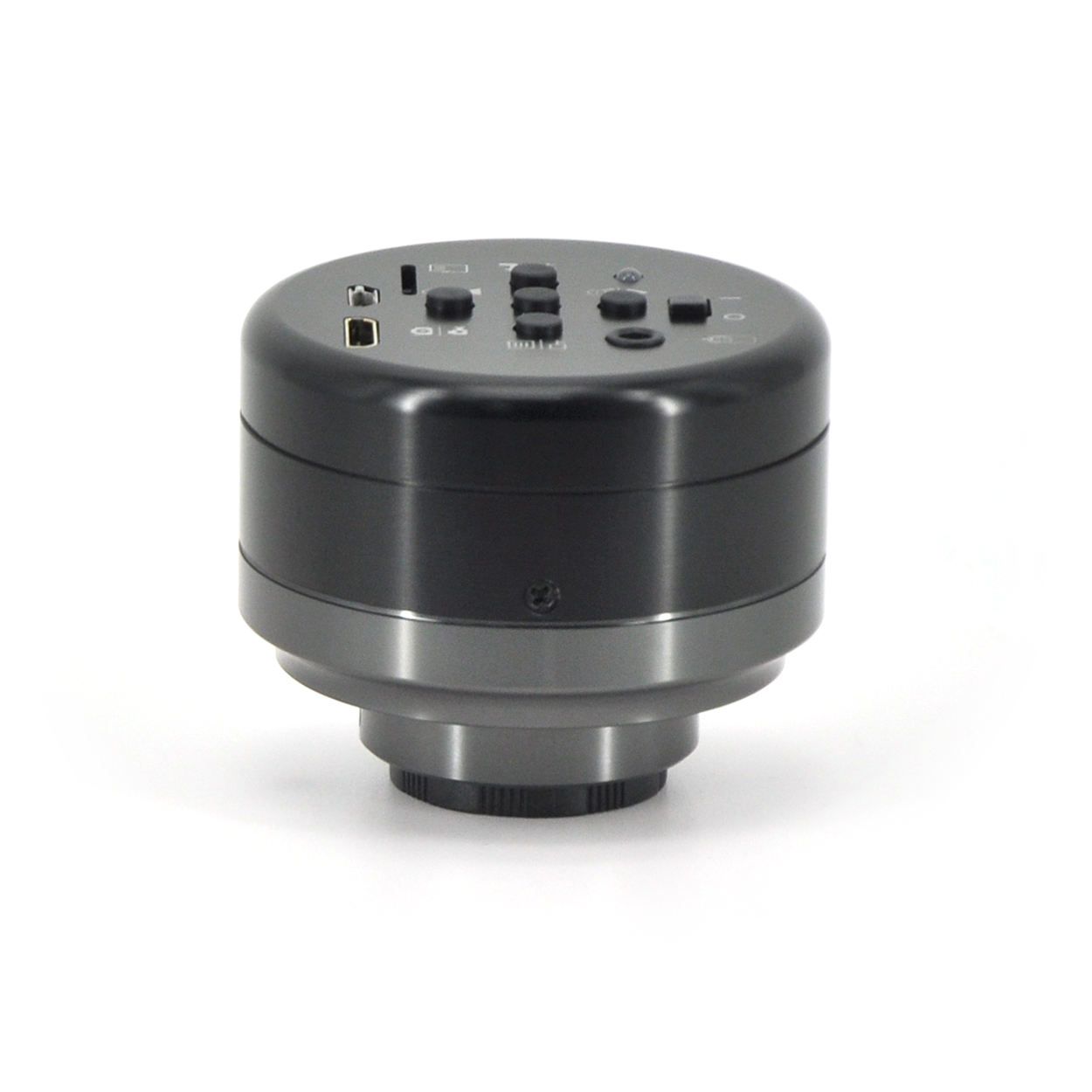

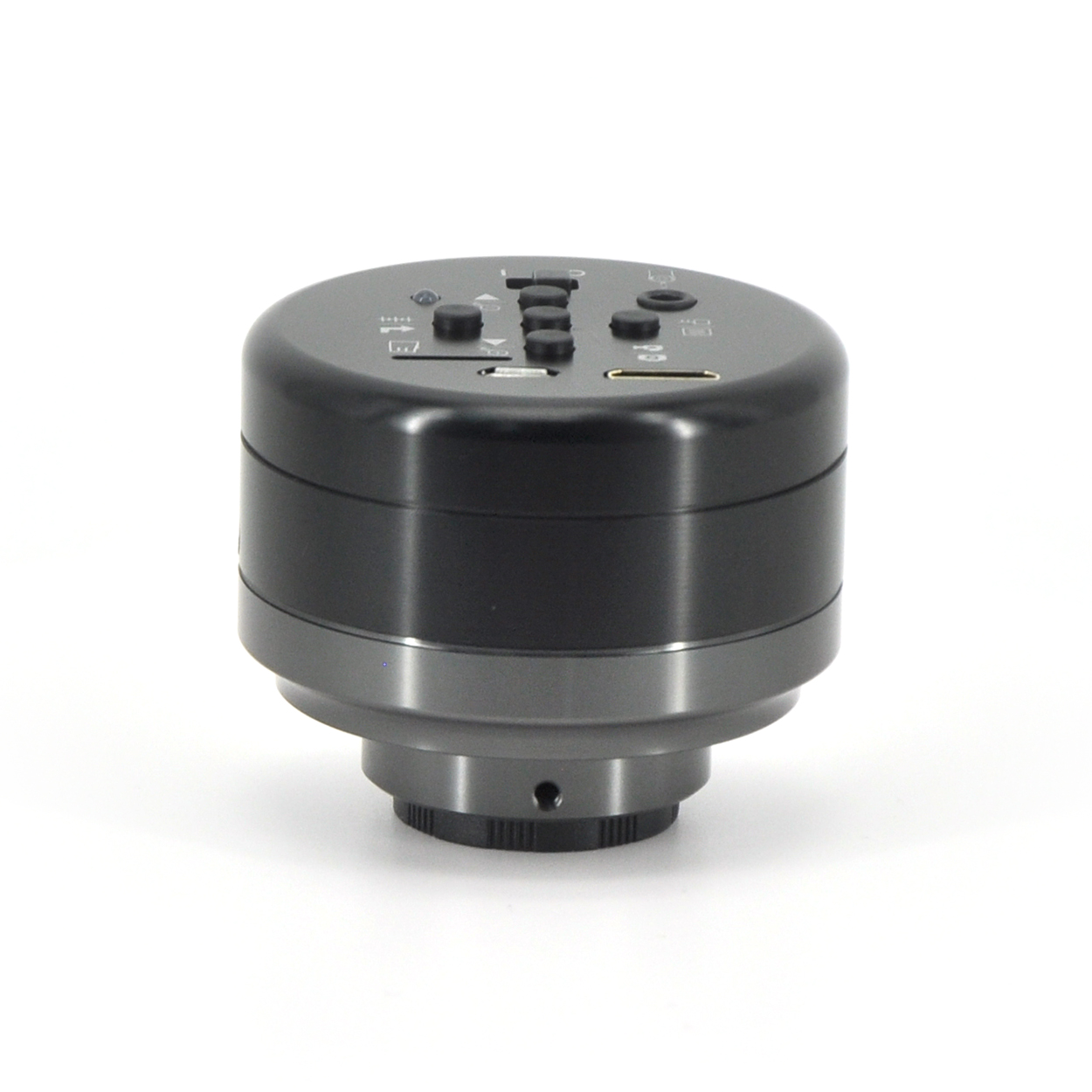

Different View of DM210Different View of DM210

Different Views of DM210

DM210 and its Stereo Microscope + Display

DM210 and its Stereo Microscope + Display

Hardware Configuration

Image Sensor

SONY CMOS IMX291 CMOS Sensor

Scan Mode

Scan line by line

Maximum Resolution

1920 x 1080(2,073,600 pixels)

Sensor Optical Format

1/2.8'' (6.058mm(H) x 4.415mm(V))

Pixel Size

2.9μm x 2.9μm

Dynamic Range

128dB

SNRmax

30dB

Spectral Charactristics

380-650nm

HDMI Output Resolution

Maximum 1920X1080P60 (Auto adjust according to displayer)

Exposure Capability

Real-time auto, Single auto, Manual adjustment

White Balance

Real-time auto, Single auto, Manual adjust R G B seperately

Capture Modes


Resolution:1920x1080

Format:JPG

Video

Resolution:1920X1080P60,1920X1080P30,1280x720P120,1280x720P60

Format:MOV

Record Route

The local and TF card(Maximum support 128G,support hot plug)

Interface Parameter

Camera Interface

C mount thread(1"×1/32)

Wired picture interface

HDMI TYPE C Mini HDMI

Charger interface

Micro USB,DC5.0V (Maximum current 1A)

Software Environment

HDMI mode

Displayer: Recommend 16:9 , at least 1080P HD displayer

Operating Environment

Operating Temperature

0℃~ 40℃

Storage Temperature

-20℃~ 60℃

Operating Humidity

30~60%RH

Storage Humidity

10~80%RH

Sample Photos Captured with DM210

Camera Image

Camera Image

Camera Image

Camera Image
