MC4K USB Microscope Digital Camera

Different View of MC4K

stereoscopic and biological microscopes, professional image processing

Features


  • 8.0MP HD Live image
  • 30FPS 3840x2160
  • Full 4K record
  • Standard C-mount High-end metal housing
  • Perfect match for both stereoscopic and biological microscopes, as well as LED and halogen lamps
  • Professional image software: Capture/Record, Edit/Annotation, Dynamic/Static, Image/Settings, Export to Word, Excel, Outlook, Printer with one button

Tags: Digital CamerasUSB2.0 CamerasCMOS Cameras

Request a Quote?


Get Quote Live chat Email Phone

8.0MP
SONY CMOS
Full 4K record
Standard C-mount
  • 8.0MP HD Live image
  • 30FPS 3840x2160
  • Full 4K record
  • Standard C-mount High-end metal housing
  • Perfect match for both stereoscopic and biological microscopes, as well as LED and halogen lamps
  • Professional image software: Capture/Record, Edit/Annotation, Dynamic/Static, Image/Settings, Export to Word, Excel, Outlook, Printer with one button

Different View of MC4KDifferent View of MC4K

Different Views of MC4K

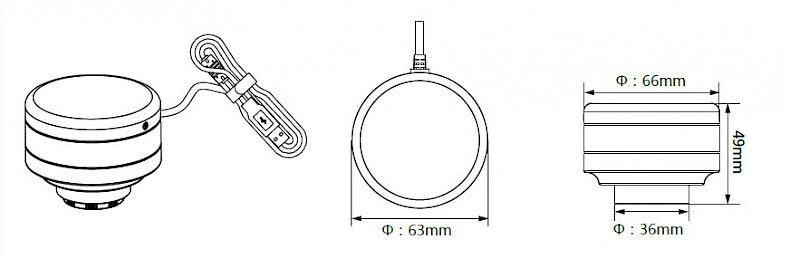

Dimension of MC4K Camera

Dimension of MC4K Camera

Dimension of MC4K Camera

Hardware Configuration

Image Sensor

SONY IMX334 CMOS Sensor

Expose mode

Rolling shutter

Maximum Resolution

3840x2160 (8,294,400 pixels)

Sensor Optical Format

1/1.8''

Pixel Size

2.0μm x 2.0μm

Dynamic Range

72db(non-HDR mode)

SNRmax

<0.64lx

Spectral Characteristics

380~650nm

Exposure Capability

Automatic and manual

White Balance

Automatic and manual

Preview Modes

[email protected],2592x1944,1920x1080,1024x768,

640x480

Record format

Snapshot

Picture Format:JPG, BMP,PNG,TIFF,PDF

Resolution:3840x2160 ,2592x1944,1920x1080,1024x768, 640x480

Record

Video Format:MJPG format AVI file

Resolution:3840x2160 ,2592x1944,1920x1080,1024x768,

640x480

Software Environment

Windows System Demand

Microsoft® Windows® XP / 7 / 8 /8.1/10(32 & 64 bit)

CPU: equal or more than the second generation Intel core 2.8GHz

Memory :2G or more

USB port:USB2.0 or compatible port

Displayer :suggest 17 inches or larger

Operating Environment

Operating Temperature

0℃~40℃

Storage Temperature

-20℃~60℃

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

Direct-current 5V, supply by USB port
