intelligent and professional image processing, 5.0MP
Tags: Digital CamerasMicroscope CamerasUSB2.0 Cameras

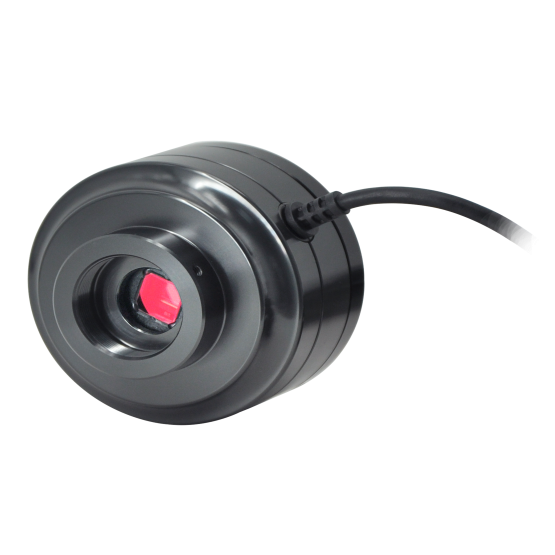

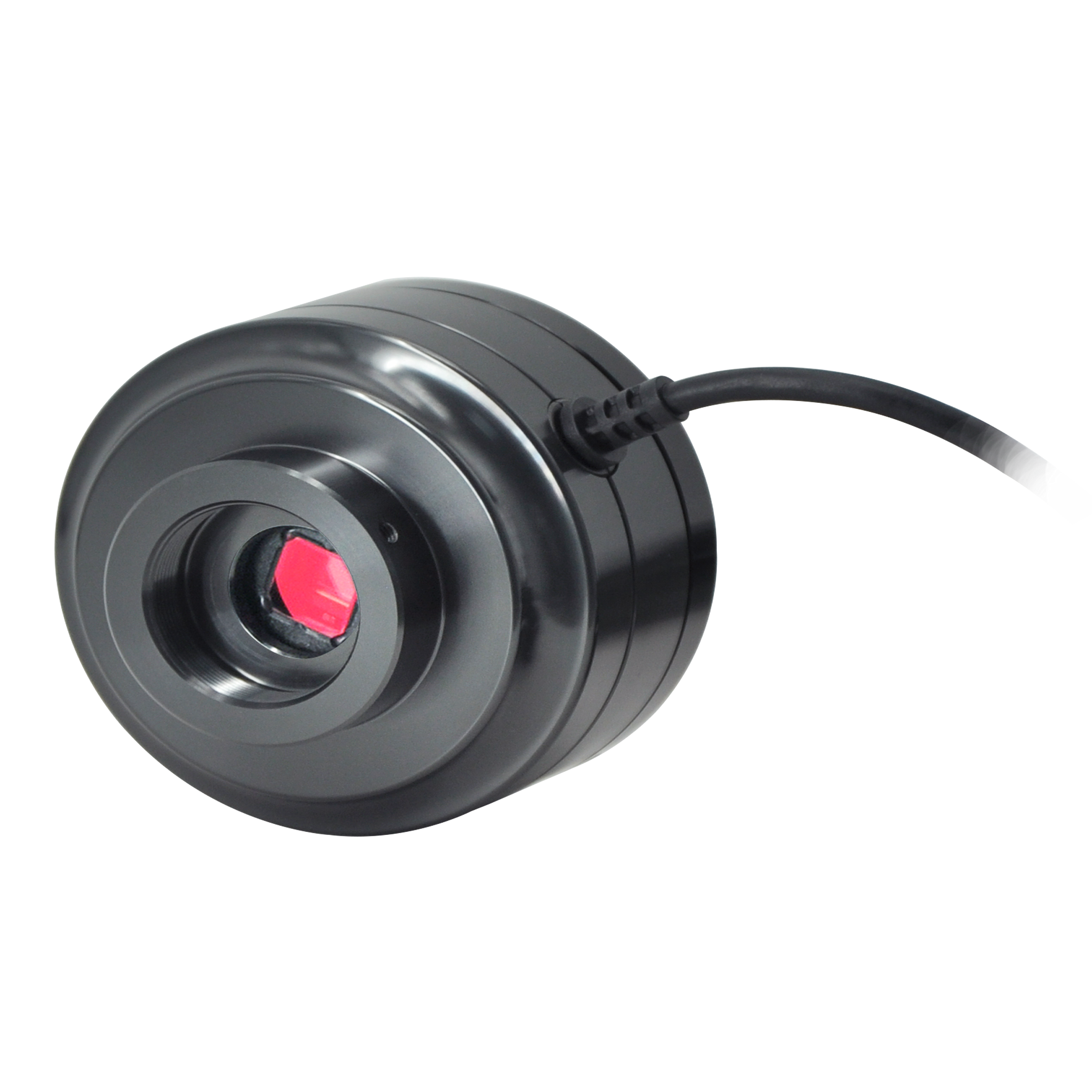

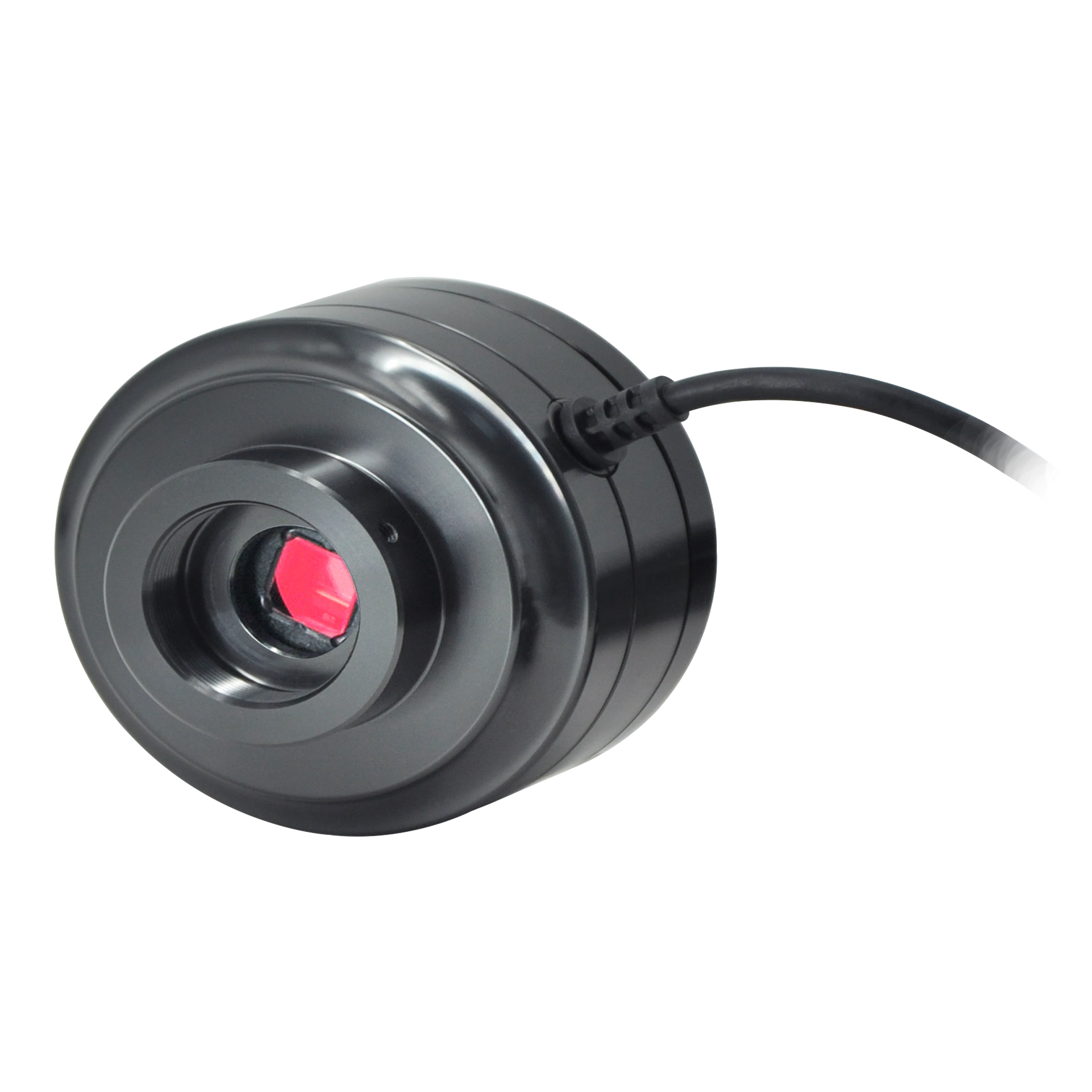

Different Views of MC500-G3
MC500-G3 and its Microscopes

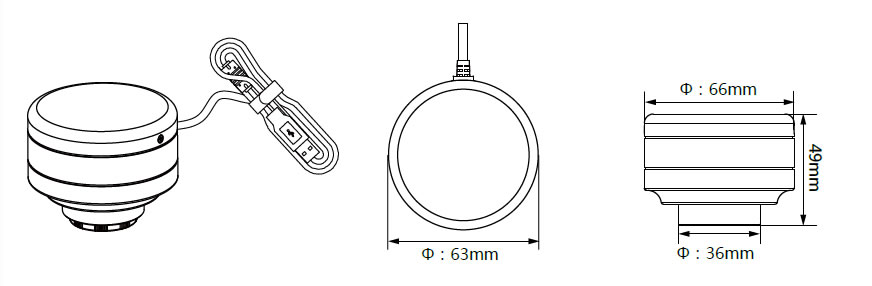

Dimension of MC500-G3
Hardware Configuration | |
---|---|
Image Sensor | Color |
Expose mode | Rolling shutter |
Maximum Resolution | 2592x1944 (5,038,848 pixels) |
Sensor Optical Format | 1/2.5'' (5.70mm(H) x 4.28mm(V), Diagonal 7.13mm) |
Pixel Size | 2.2μm x 2.2μm(BSI) |
Dynamic Range | 74.3dB Linear, more than 96 dB (Interleaved) |
SNRmax | 40dB |
Spectral Characteristics | 380~650nm |
Exposure Capability | 3.9ms-320ms, Automatic and manual |
White Balance | Automatic and manual |
Preview Modes | [email protected], 1920x1080, 1024x768, 640x480 |
Record format | Snapshot Picture Format:JPG, BMP,PNG,TIFF,PDF Resolution:2592x1944, 1920x1080, 1024x768, 640x480 Record Video Format:MJPG format AVI file Resolution:1920x1080, 1024x768, 640x480 |
Software Environment | |
Windows System Demand | Microsoft® Windows® XP / 7 / 8 /8.1/10(32 & 64 bit) |
CPU: equal or more than the second generation Intel core 2.8GHz | |
Memory :2G or more | |
USB port:USB2.0 or compatible port | |
Displayer :suggest 17 inches or larger | |
Operating Environment | |
Operating Temperature | 0℃~40℃ |
Storage Temperature | -20℃~60℃ |
Operating Humidity | 30~80%RH |
Storage Humidity | 10~60%RH |
Power Supply | Direct-current 5V, supply by USB port |
