intelligent image processing, WIFI/USB 8.0MP, high-speed transmission
Tags: Digital CamerasMicroscope CamerasWIFI CamerasUSB2.0 CamerasCMOS Cameras
MC4KW-G1

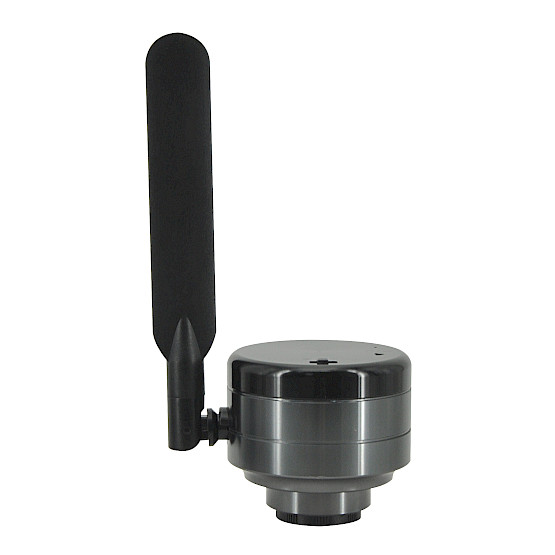

Different Views of MC4KW-G1
Hardware Configuration | ||
---|---|---|
Image Sensor | SONY IMX334 CMOS Sensor | |
Expose mode | Rolling shutter | |
Maximum Resolution | 3840x2160 (8,294,400 pixels) | |
Sensor Optical Format | 1/1.8'' | |
Pixel Size | 2.0μm x 2.0μm | |
Dynamic Range | 72db(non-HDR mode) | |
SNRmax | <0.64lx | |
Spectral Characteristics | 380~650nm | |
Exposure Capability | Automatic and manual | |
White Balance | Automatic and manual | |
Record format | Snapshot Picture Format:JPG,BMP,PNG,TIFF,PDF Resolution:3840x2160 ,2592x1944,1920x1080,1024x768,640x480 Record Video Format:MJPG format AVI file Resolution:3840x2160 ,2592x1944,1920x1080,1024x768,640x480 | |
Micro USB interface | Wired picture USB2.0 DC 5.0V 500mA | |
Camera Interface | C Port | |
Wireless Parameter | ||
Standard | 2.4G: IEEE 802.11n | |
5G: IEEE 802.11n/ac | ||
Operating Frequency Range | 2.4G: 2.400-2.4835GHz | |
5G: 5.180-5.825GHz | ||
Software Environment | ||
Windows System Demand | Microsoft® Windows® XP / 7 / 8 /8.1/10(32 & 64 bit) | |
CPU: Dual-core 3.0 GHz or more CPU | ||
Memory :4G or more | ||
At least 10 GB available hard disk space | ||
Wireless network card (support IEEE 802.11n/ac) | ||
iOS System Demand | iPhone X/ 8/ 8 Plus/7/ 7 Plus/6s/6s Plus/ 6/6 Plus iPad Pro (12.9-inch 2nd generation)/(12.9-inch 1st generation)/(10.5-inch)/(9.7-inch) iPad Air 2/iPad mini 4 | |
iOS11.0 or higher | ||
Android5.0 or higher | Android5.0 or higher | |
CPU: dual-core 1.7GHz or higher | ||
RAM memory:1G or more | ||
Storage ROM:suggest 8G or larger |
*In the wireless working status, you can switch to 2.4G WiFi or 5G WiFi mode. Please confirm that the hardware of the smart device supports 5G WiFi IEE 802.11ac/n protocol; otherwise, images cannot be obtained normally in 5G WiFi mode.
