BD1601 Comparison Microscope

The comparison microscope BD1601 is built by the police college trace identification experts and technical experts with more than 20 years of experience in optical industrial. It incorporates the practical experience of many years of trace identification and breaks through the old-fashioned use of traditional comparison microscopes. It adopts high-magnification dual-lens, dual-channel ultra-high-definition cameras and ultra-high-definition image display on computer , and relies on the latest AI intelligent image algorithm to fully process the image in time and cooperate with the newly optimized mechanical sup- port platform and multiple color light source, objects observation are easy and convenient. Through the use of powerful software, users can quickly obtain high-definition real contrast images, gain higher work efficiency and accuracy.

The camera uses SONY IMX274 8.0MP HD CMOS sensor which features with ultra-wide dynamic range (＞80dB) and ultra-low illumination (0.001Lux). The frame rate output is 25 fps in full output, easy to capture high dynamic range video with more detail.

0.83X~10X continuous zoom, full-range HD optical lens. Special coating technology for excellent achromatic effects while ensuring a clear, bright and flat image.

Super-hard alloy design, independent adjustment mechanism, can adjust the XYZR axis for personal use habits, use scene and the characteristics of the detector, make the operation more comfortable and more humanized. A variety of fixture matching solutions, whether it is moving, rotating, tilting, positioning observations, to meet various observation and measurement needs.

BD1601 is equipped with the external coaxial light, which can uniformly illuminate the surface of the plane and the shiny surface, and enhance the features of marking, recessing or embossing. It can highlight the uneven surface of the object, overcome the interference caused by the reflection of the surface, and highlight more details that cannot be displayed by traditional microscopes.

Unique multiple color light, users can choose different wavelengths of light to observe according to different observation characteristics or applications. With low voltage, ultra low energy c onsumption, safe, stable, long life, high brightness, low light decay and other characteristics. Whether it is trace comparison, text comparison or seal comparison, it is easy to use.

Exclusively comparison software, bringing unprecedented efficiency and precision to users by many years of practical experience and software developers' hard work.

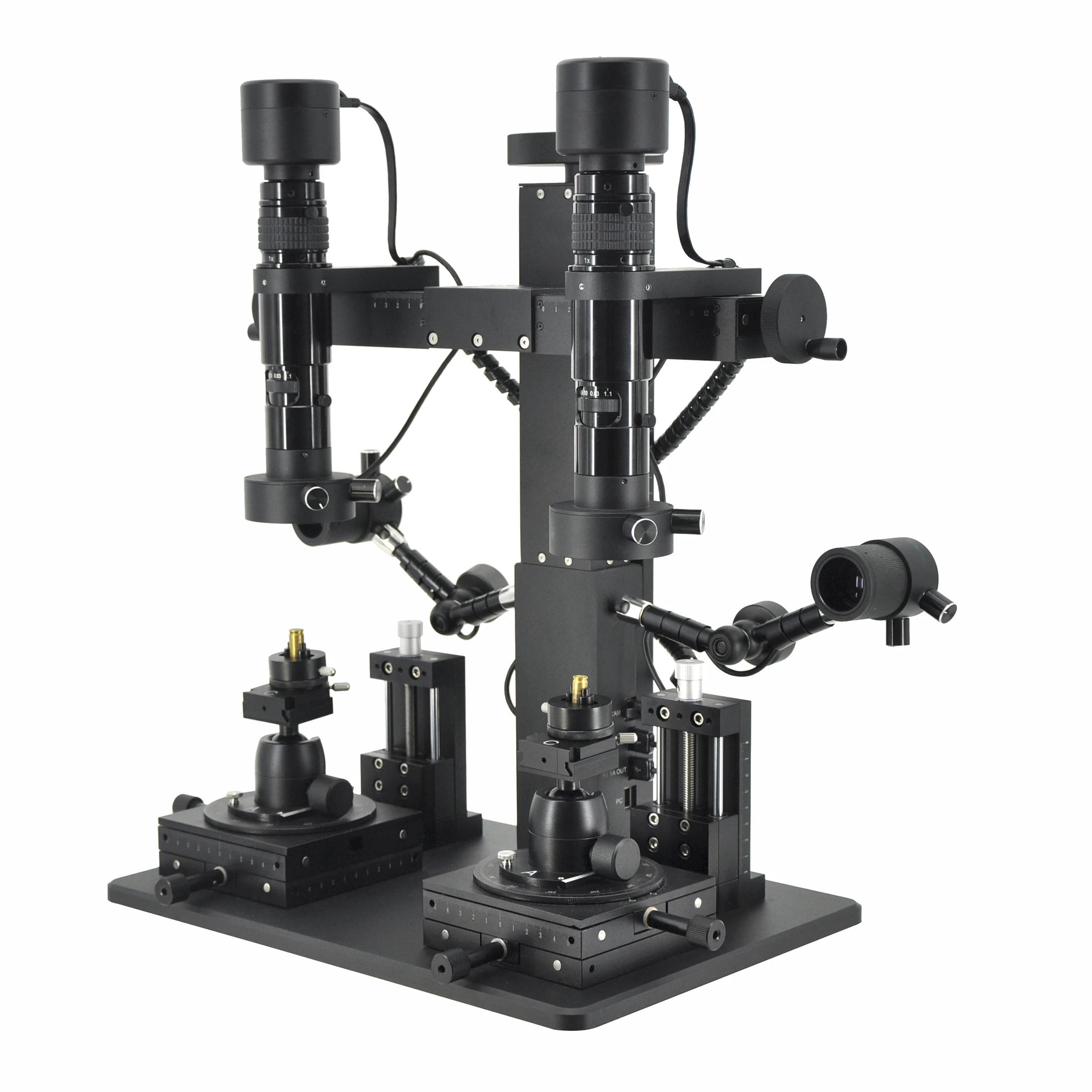

BD1601 and its Back Panel

Different Views of BD1601

Different Views of BD1601

Details of BD1601

BD1601 and its Display

BD1601's CMOS Camera

Dimension of BD1601

Dimension of BD1601

Packing Information for BD1601
