BZW7045N Series Binocular Micro-object observation & measurement Continuous Zoom Stereo Microscope
7X-45X, Various stands for different specimens, micro-object observation, inspection and measurement
Features
- Brand-new Stereo Microscope
- Aux Lens: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
- High resolution and good depth
- Widely used in various fields: electronic industry, educational demonstration and agricultural research
- Micro-object observation, inspection and measurement
Tags: Stereo MicroscopesIndustrial InspectionMeasuring Microscopes
Request a Quote?
Get Quote Live chat Email Phone
3.5X-270X
BZW7045N Series Stereo Zoom Microscope is a new device with the fresh shape. It has the same technical parameters with BZW7045 Series Stereo Zoom Microscope. It is widely used in electronic industry, educational demonstration and agricultural research for micro-object observation, inspection and measurement.
BZW7045N-PS |
BZW7045N-PRT |
BZW7045N-PL |
BZW7045N-PLGL |
BZW7045N-PI |
BZW7045N-PI2L |
BZW7045N-PIGL |
BZW7045N-PF |
BZW7045N-PF2L |
BZW7045N-AS |
BZW7045N-AL |
BZW7045N-AI |
BZW7045N-AI2L |
BZW7045N-AF |
BZW7045N-AF2L |
BZW7045N-AC |
BZW7045N-AC2L |
BZW7045N-SU1 |
BZW7045N-SU2 |
BZW7045N-SU3 |
BZW7045N-DU1 |
BZW7045N-DU2 |
BZW7045N-RU1 |
BZW7045N-U2 |
BZW7045N-PS |
BZW7045N-PRT |
BZW7045N-PL |
BZW7045N-PLGL |
BZW7045N-PI |
BZW7045N-PI2L |
BZW7045N-PIGL |
BZW7045N-PF |
BZW7045N-PF2L |
BZW7045N-U2 |
Item | Stand | Illumination | Focusing Mount |
|---|---|---|---|
BZW7045N -PS | PS pole stand | Fluorescent lamp, LED ring light | C1 focusing mount with vertical working distance 50mm |
BZW7045N -PRT | PRT pole stand | Transmitted and reflected 12v/15w halogen, 7w fluorescent, 5v/3w LED illumination | C1 focusing mount with vertical working distance 50mm |
BZW7045N -PL | PL pole stand | Fluorescent lamp, LED ring light | C1 focusing mount with vertical working distance 50mm |

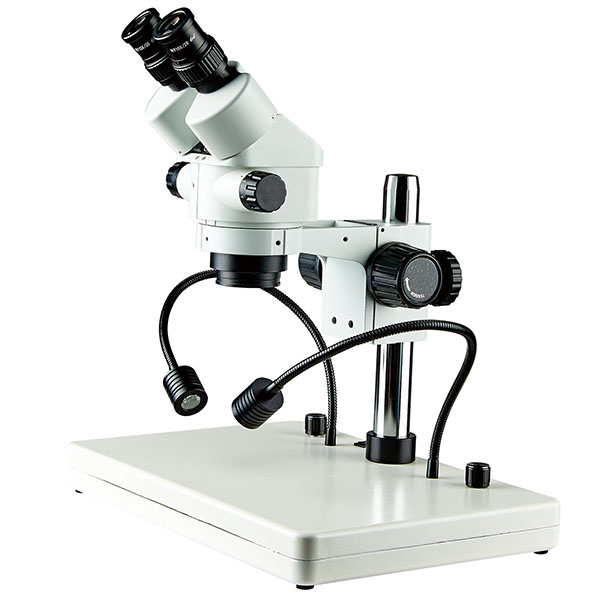

BZW7045N -PLGL | PLGL pole stand | Double gooseneck LED illumination with independent switches and adjustable intensity | C1 focusing mount with vertical working distance 50mm |
BZW7045N -PI | PI pole stand | Fluorescent lamp, LED ring light | C1 focusing mount with vertical working distance 50mm |
BZW7045N -PI2L | PI2L pole stand | Transmitted and reflected 5v/3w LED illumination with independent switches and adjustable intensity | C1 focusing mount with vertical working distance 50mm |

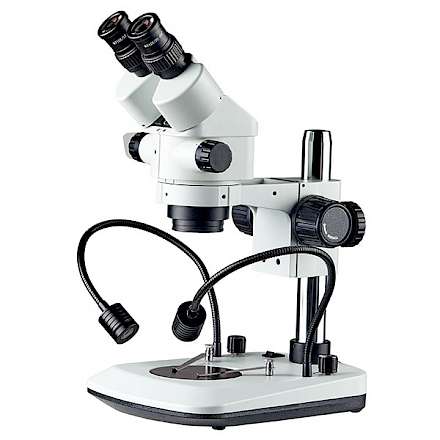

BZW7045N -PIGL | PIGL pole stand | Double gooseneck LED illumination with independent switches and adjustable intensity | C1 focusing mount with vertical working distance 50mm |
BZW7045N -PF | PF fan base pole stand | Fluorescent lamp, LED ring light | C1 focusing mount with vertical working distance 50mm |
BZW7045N -PF2L | PF2L fan base pole stand | Transmitted and reflected LED illumination with independent switches and adjustable intensity | C1 focusing mount with vertical working distance 50mm |

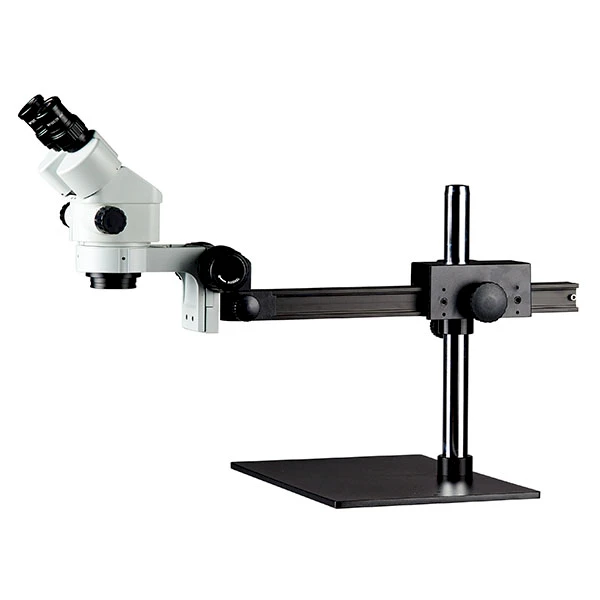

BZW7045N -U2 | U2 pole stand | Fluorescent lamp, LED ring light | C3 focusing mount with vertical working distance 50mm |
For more options, please refer to "ACCESSORIES-MICROSCOPE STAND" &“ACCESSORIES-ILLUMINATOR”
Other Specification for BZW7045N Pole Stand Series | ||||||||
|---|---|---|---|---|---|---|---|---|
Eyepiece | Standard | Auxiliary Lens 0.5X | Auxiliary Lens 1.5X | Auxiliary Lens 2X | ||||
W.D. 100mm | W.D. 165mm | W.D. 45mm | W.D. 30mm | |||||
Mag. | F.O.V | Mag. | F.O.V | Mag. | F.O.V | Mag. | F.O.V | |
10X/20mm | 7.0X | 28.6mm | 3.5X | 57.1mm | 10.5X | 19mm | 14.0X | 14.3mm |
45.0X | 4.4mm | 22.5X | 8.9mm | 67.5X | 3mm | 90.0X | 2.2mm | |
15X/15mm | 10.5X | 21.1mm | 5.25X | 42.8mm | 15.75X | 14.3mm | 21.0X | 10.7mm |
67.5X | 3.3mm | 33.75X | 6.7mm | 101.25X | 2.2mm | 135.0X | 1.7mm | |
20X/10mm | 14.0X | 14.3mm | 7.0X | 28.6mm | 21.0X | 9.5mm | 28.0X | 7.1mm |
90.0X | 2.2mm | 45.0X | 4.4mm | 135.0X | 1.5mm | 180.0X | 1.1mm | |
25X/9mm | 17.5X | 12.9mm | 8.85X | 25.4mm | 26.2X | 8.6mm | 35.0X | 6.4mm |
112.5X | 2.0mm | 56.3X | 4.0mm | 168.8X | 1.3mm | 225.0X | 1.0mm | |
30X/8mm | 21.0X | 11.4mm | 10.5X | 22.9mm | 31.5X | 7.6mm | 42.0X | 5.7mm |
135.0X | 1.8mm | 67.5X | 3.6mm | 202.5X | 1.2mm | 270.0X | 0.9mm | |
Magnification | 7X-45X, 3.5X-270X with optional eyepieces and objectives | |||||||
Eyepiece | WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses | |||||||
Optional Eyepiece | WF10X/20mm, WF15X/15mm, WF20X/10mm, WF25X/9mm, WF30X/8mm | |||||||
Main Body | Binocular head, 45° inclined, 360° rotatable, can be locked in any position desired | |||||||
Interpupillary Distance adjustment:54-76mm; Diopter adjustment:±5 diopters | ||||||||
Objective | 0.7X-4.5X stereo zoom; Zoom Ratio:6.4:1 | |||||||
Aux Lens | 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X | |||||||
BZW7045N-AS |
BZW7045N-AL |
BZW7045N-AI |
BZW7045N-AI2L |
BZW7045N-AF |
BZW7045N-AF2L |
BZW7045N-AC |
BZW7045N-AC2L |
Item | Stand | Illumination |
|---|---|---|

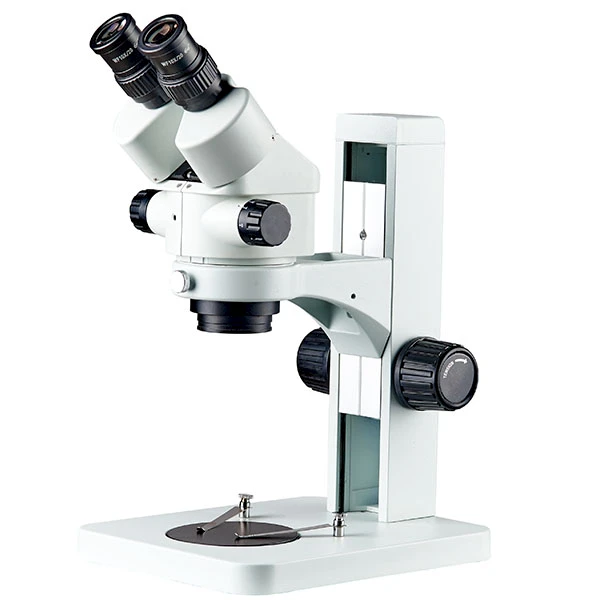

BZW7045N-AS | AS track stand | Fluorescent lamp, LED ring light |
BZW7045N-AL | AL track stand | Fluorescent lamp, LED ring light |
BZW7045N-AI | AI track stand | Fluorescent lamp, LED ring light |
BZW7045N-AI2L | AI2L track stand | Transmitted and reflected 5v/3w LED illumination with independent switches and adjustable intensity |
BZW7045N-AF | AF fan track stand | Fluorescent lamp, LED ring light |
BZW7045N-AF2L | AF2L fan base track stand | Transmitted and reflected LED illumination with independent switches and adjustable intensity |
BZW7045N-AC | AC track stand | Fluorescent lamp, LED ring light |
BZW7045N-AC2L | AC2L track stand | Transmitted and reflected LED illumination with independent switches and adjustable intensity |
For more options, please refer to "ACCESSORIES-MICROSCOPE STAND" &“ACCESSORIES-ILLUMINATOR”
Other Specification for BZW7045N Track Stand Series | ||||||||
|---|---|---|---|---|---|---|---|---|
Eyepiece | Standard | Auxiliary Lens 0.5X | Auxiliary Lens 1.5X | Auxiliary Lens 2X | ||||
W.D. 100mm | W.D. 165mm | W.D. 45mm | W.D. 30mm | |||||
Mag. | F.O.V | Mag. | F.O.V | Mag. | F.O.V | Mag. | F.O.V | |
10X/20mm | 7.0X | 28.6mm | 3.5X | 57.1mm | 10.5X | 19mm | 14.0X | 14.3mm |
45.0X | 4.4mm | 22.5X | 8.9mm | 67.5X | 3mm | 90.0X | 2.2mm | |
15X/15mm | 10.5X | 21.1mm | 5.25X | 42.8mm | 15.75X | 14.3mm | 21.0X | 10.7mm |
67.5X | 3.3mm | 33.75X | 6.7mm | 101.25X | 2.2mm | 135.0X | 1.7mm | |
20X/10mm | 14.0X | 14.3mm | 7.0X | 28.6mm | 21.0X | 9.5mm | 28.0X | 7.1mm |
90.0X | 2.2mm | 45.0X | 4.4mm | 135.0X | 1.5mm | 180.0X | 1.1mm | |
25X/9mm | 17.5X | 12.9mm | 8.85X | 25.4mm | 26.2X | 8.6mm | 35.0X | 6.4mm |
112.5X | 2.0mm | 56.3X | 4.0mm | 168.8X | 1.3mm | 225.0X | 1.0mm | |
30X/8mm | 21.0X | 11.4mm | 10.5X | 22.9mm | 31.5X | 7.6mm | 42.0X | 5.7mm |
135.0X | 1.8mm | 67.5X | 3.6mm | 202.5X | 1.2mm | 270.0X | 0.9mm | |
Magnification | 7X-45X, 3.5X-270X with optional eyepieces and objectives | |||||||
Eyepiece | WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses | |||||||
Optional Eyepiece | WF10X/20mm, WF15X/15mm, WF20X/10mm, WF25X/9mm, WF30X/8mm | |||||||
Main Body | Binocular head, 45° inclined, 360° rotatable, can be locked in any position desired | |||||||
Interpupillary Distance adjustment:54-76mm; Diopter adjustment:±5 diopters | ||||||||
Objective | 0.7X-4.5X stereo zoom; Zoom Ratio:6.4:1 | |||||||
Aux Lens | 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X | |||||||
Focusing Mount | Focusing track mount with vertical working distance 106mm | |||||||
BZW7045N-SU1 |
BZW7045N-SU2 |
BZW7045N-SU3 |
BZW7045N-DU1 |
BZW7045N-DU2 |
BZW7045N-RU1 |
Item | Stand | Focusing Mount |
|---|---|---|
BZW7045N-SU1 | SU1 boom stand | C1 focusing mount with vertical working distance 50mm |
BZW7045N-SU2 | SU2 boom stand | C3 focusing mount with vertical working distance 50mm |

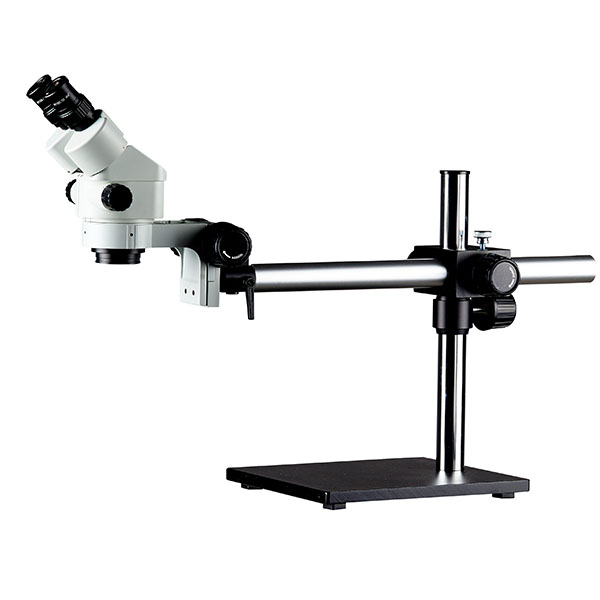

BZW7045N-SU3 | SU3 boom stand | C3 focusing mount with vertical working distance 50mm |
BZW7045N-DU1 | DU1 boom stand | C1 focusing mount with vertical working distance 50mm |
BZW7045N-DU2 | DU2 boom stand | C3 focusing mount with vertical working distance 50mm |
BZW7045N-RU1 | RU1 clamp boom stand | C3 focusing mount with vertical working distance 50mm |
For more options, please refer to "ACCESSORIES-MICROSCOPE STAND" &“ACCESSORIES-ILLUMINATOR”
Other Specification for BZW7045N Boom Stand Series | ||||||||
|---|---|---|---|---|---|---|---|---|
Eyepiece | Standard | Auxiliary Lens 0.5X | Auxiliary Lens 1.5X | Auxiliary Lens 2X | ||||
W.D. 100mm | W.D. 165mm | W.D. 45mm | W.D. 30mm | |||||
Mag. | F.O.V | Mag. | F.O.V | Mag. | F.O.V | Mag. | F.O.V | |
10X/20mm | 7.0X | 28.6mm | 3.5X | 57.1mm | 10.5X | 19mm | 14.0X | 14.3mm |
45.0X | 4.4mm | 22.5X | 8.9mm | 67.5X | 3mm | 90.0X | 2.2mm | |
15X/15mm | 10.5X | 21.1mm | 5.25X | 42.8mm | 15.75X | 14.3mm | 21.0X | 10.7mm |
67.5X | 3.3mm | 33.75X | 6.7mm | 101.25X | 2.2mm | 135.0X | 1.7mm | |
20X/10mm | 14.0X | 14.3mm | 7.0X | 28.6mm | 21.0X | 9.5mm | 28.0X | 7.1mm |
90.0X | 2.2mm | 45.0X | 4.4mm | 135.0X | 1.5mm | 180.0X | 1.1mm | |
25X/9mm | 17.5X | 12.9mm | 8.85X | 25.4mm | 26.2X | 8.6mm | 35.0X | 6.4mm |
112.5X | 2.0mm | 56.3X | 4.0mm | 168.8X | 1.3mm | 225.0X | 1.0mm | |
30X/8mm | 21.0X | 11.4mm | 10.5X | 22.9mm | 31.5X | 7.6mm | 42.0X | 5.7mm |
135.0X | 1.8mm | 67.5X | 3.6mm | 202.5X | 1.2mm | 270.0X | 0.9mm | |
Magnification | 7X-45X, 3.5X-270X with optional eyepieces and objectives | |||||||
Eyepiece | WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses | |||||||
Optional Eyepiece | WF10X/20mm, WF15X/15mm, WF20X/10mm, WF25X/9mm, WF30X/8mm | |||||||
Main body | Binocular head, 45° inclined, 360° rotatable, can be locked in any position desired | |||||||
Interpupillary Distance adjustment:54-76mm; Diopter adjustment:±5 diopters | ||||||||
Objective | 0.7X-4.5X stereo zoom; Zoom Ratio:6.4:1 | |||||||
Aux Lens | 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X | |||||||
Illumination | Fluorescent lamp, LED ring light | |||||||
