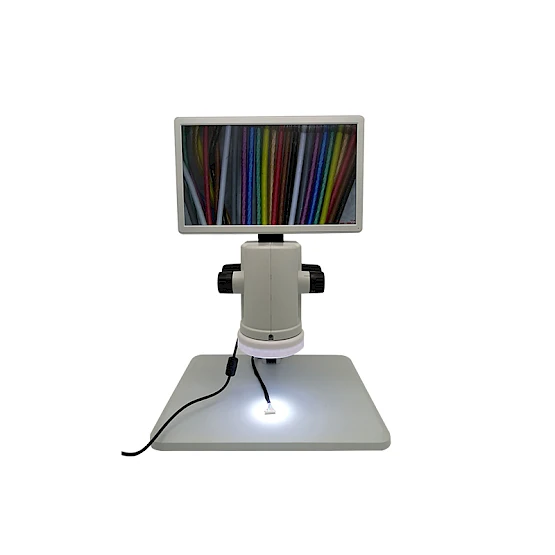

DTV20-C10 Video Digital Stereo Microscope with 11.6'' or 21.5'' Display & 56-LED ring light

DTV20-C10

HDMI, USB, 17x-110x, photo taking & video recording, Real-time observation

Features


  • 1920*[email protected](2.0Mp) Resolution
  • zoom optical module
  • high definition camera
  • used in a narrow and small space
  • internal optical corner design
  • angle adjustment
  • flat observation
  • connect to another display simultaneously

Tags: Stereo Microscopes

Request a Quote?


Get Quote Live chat Email Phone

1920*[email protected](2.0Mp)
1/3'' COMS
objective: 0.7x-4.5x
high definition camera

DTV20-C10 integrated zoom optical module with high definition camera. It can be conveniently used in a narrow and small space. According to ergonomic principles, its internal optical corner design and angle adjustment of the display screen, allow the operator to look at the display in a flat view. Through the HDMI HD interface, it can connect to another display simultaneously.

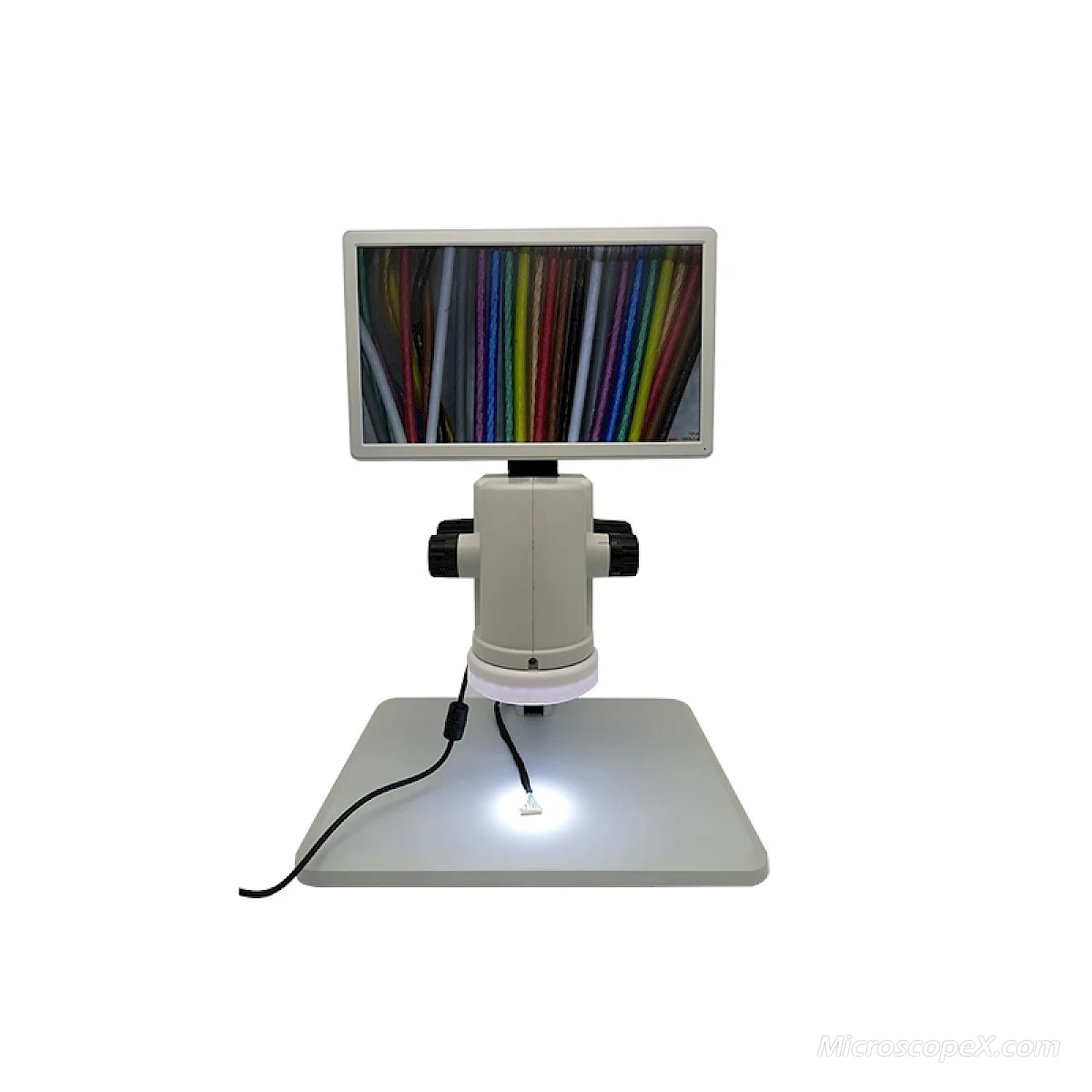

DTV20-C10

DTV20-C10

Specification for DTV20-C10

Magnification

17x-110x

Objective

0.7x-4.5x

Sensor

1/3'' COMS

Resolution

1920*[email protected](2.0Mp)

Output

HDMI, USB, SD Card

Display

11.6'' or 21.5''

Through the HDMI interface, can connect to another display simultaneously

Function

Real-time observation, photo taking, video recording, measurement, storage, data output

Displayer

Size

Standard

0.5x Auxiliary Lens

2.0x Auxiliary Lens

W.D. 100mm

W.D. 165mm

W.D. 30mm

Mag.

F.O.V.(mm)

Mag.

F.O.V.(mm)

Mag.

F.O.V.(mm)

11.6”

17.2x-110.5x

18.5*10.5-2.8*1.5

8.6x-55.2x

37.5*21-5.5*3.0

34.4x-221x

9.5*5.5-1.5*0.7

21.5”

31.9x-204.8x

18.5*10.5-2.8*1.5

15.9x-102.4x

37.5*21-5.5*3.0

63.7x-409.6x

9.5*5.5-1.5*0.7

Stand

C10 Track Stand
Vertical Height: 325mm, Focusing Distance:220mm
Base Size: 320x260x16mm

Illumination

Comes with 56-LED ring light
