PS Stand | PRT Stand | PL Stand |
|---|
| | |
- Vertical Post：240mm
- Diameter：φ32mm
- With φ95mm B/W Plastic Plate and Paired Clips
- Base Size：200x255x22mm
- With A1 Focusing Mount
| - Vertical Post：240mm
- Diameter：φ32mm
- Transmission light source 12v/15w Halogen lamp，Brightness independent adjustable base 12v/15 halogen lamp（7w fluorescent lamps optional）
- With φ95mm B/W Plastic & Perspex Plate and Paired Clips
- Base Size：200x255x60mm
- With A1 Focusing Mount
| - Vertical Post：240mm
- Diameter：φ32mm
- Base Size：380x260x20mm
- With A1 Focusing Mount
|
PLGL Stand | PI Stand | PI2L Stand |
|---|
| | |
- Vertical Post：240mm
- Diameter：φ32mm
- Double Gooseneck LED Illumination with an independent control
- Input Power：110v~240
- Base Size：380x260x40mm
- With A1 Focusing Mount
| - Vertical Post：240mm
- Diameter：φ32mm
- With φ95mm B/W Plastic Plate and Paired Clips
- Base Size：205x275x22mm
- With A1 Focusing Mount
| - Vertical Post：240mm Diameter：φ32mm
- Top and bottom LED Illumination with an independent control
- Input Power：110v~240v
- With φ95mm B/W Plastic & Perspex Plate and Paired Clips
- Base Size：205x275x40mm
- With A1 Focusing Mount
|
PIGL Stand | PF Stand | PF2L Stand |
|---|
| | |
- Vertical Post:240mm Diameter:φ32mm
- Gooseneck LED illumination with an independent control
- Input Power:110v~240v
- With φ95mm B/W Plastic & Perspex Plate and Paired Clips
- Base Size：205x275x40mm
- With A1 Focusing Mount
| - Vertical Post：240mm
- Diameter：φ32mm
- With φ95mm B/W Plastic Plate and Paired Clips
- Base Size：285x238x25mm
- With A1 Focusing Mount
| - Vertical Post：240mm
- Diameter：φ32mm
- Top and bottom LED Illumination with an independent control
- Input Power：110v~240v
- With φ95mm B/W Plastic & Perspex Plate and Paired Clips
- Base Size：285x238x40mm
- With A1 Focusing Mount
|

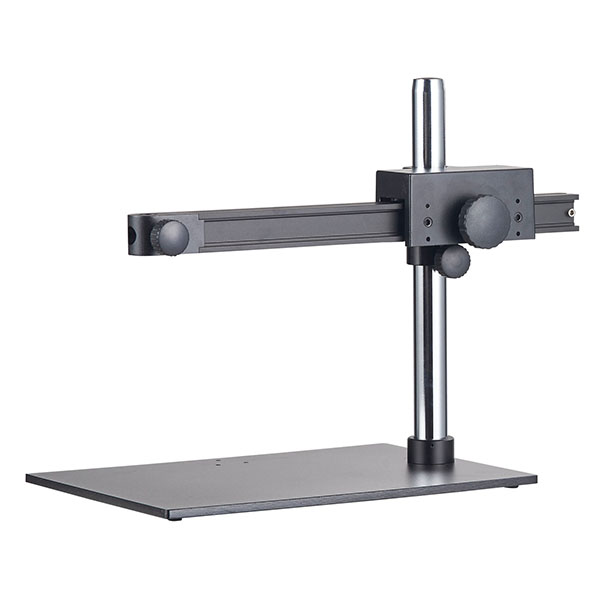

U1 Stand | U2 Stand | AS Stand |
|---|
| | |
- Expand the scope of operation and observe the object in any direction
- Diameter：Ф25mm
- Vertical Post：340mm
- Horizontal moving：315mm
- Base Size：380x260x20mm
- With XLB-A1 Focusing Mount
| - Expand the scope of operation and observe the object in any direction
- Diameter：Ф32mm
- Vertical Post：355mm
- Horizontal moving：265mm
- Base Size：380x280x10mm
- With A3 Focusing Mount
| - Vertical Height：300mm
- Mounting Size：φ76mm
- Focusing Distance：106mm
- With φ95mm B/W Plastic Plate and Paired Clips
- Base Size：200x255x22mm
|
AL Stand | ART Stand | AI Stand |
|---|
| | |
- Vertical Height：300mm
- Mounting Size：φ76mm
- Focusing Distance：106mm
- Base Size：380x260x20mm
| - Vertical Height：300mm
- Mounting Size：φ76mm
- Focusing Distance：104mm
- With φ125mm B/W Plastic & Perspex Plate and Paired Clips
- Base Size：300x295x55mm
| - Vertical Height：300mm
- Mounting Size：φ76mm
- Focusing Distance：106mm
- With φ95mm B/W Plastic Plate and Paired Clips
- Base Size：205x275x22mm
|

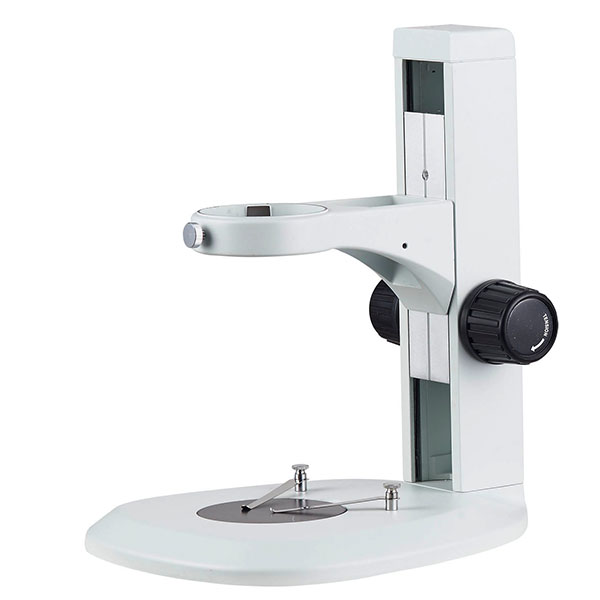

AI2L Stand | AF Stand | AF2L Stand |
|---|
| | |
- Vertical Height：300mm
- Mounting Size：φ76mm
- Focusing Distance：106mm
- Top and bottom LED Illumination with an independent control
- Input Power：110v~240v
- With φ95mm B/W Plastic & Perspex Plate and Paired Clips
- Base Size：205x275x40mm
| - Vertical Height：300mm
- Mounting Size：φ76mm
- Focusing Distance：106mm
- With φ95mm B/W Plastic Plate and Paired Clips
- Base Size：285x238x25mm
| - Vertical Height：300mm
- Mounting Size：φ76mm
- Focusing Distance：106mm
- Top and bottom LED Illumination with an independent control
- Input Power：110v~240v
- With φ95mm B/W Plastic & Perspex Plate and Paired Clips
- Base Size：285x238x40mm
|
AC Stand | AC2L Stand | SU1 Boom Stand |
|---|
| | |
- Vertical Height：276mm
- Mounting Size：φ76mm
- Focusing Distance：78mm
- With φ95mm B/W Plastic Plate and Paired Clips
- Base Size：225x200x28mm
| - Vertical Height：276mm
- Mounting Size：φ76mm
- Focusing Distance：74mm
- Top and bottom LED Illumination with an independent control
- Input Power：110v~240v
- With φ60mm B/W Plastic & Perspex Plate and Paired Clips
- Base Size ：225x200x40mm
| - Expand the scope of operation and observe the object in any direction
- Vertical Post：380mm
- Diameter：φ32mm
- Horizontal moving：235mm
- Base Size：230x230x40mm
- With A1 Focusing Mount
|

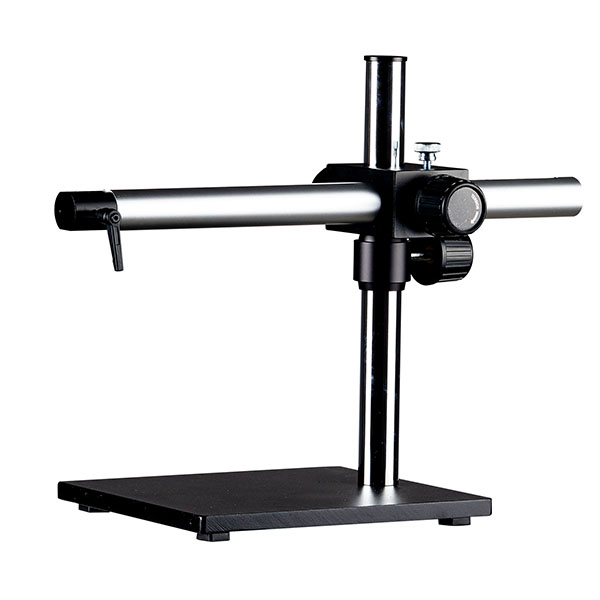

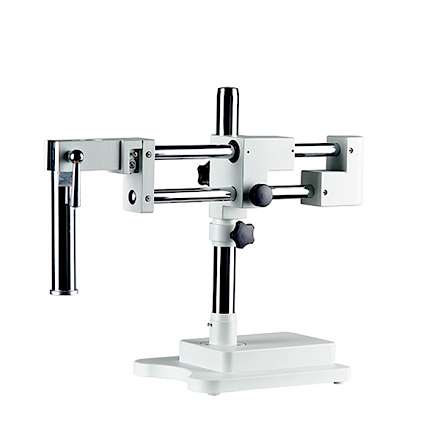

SU2 Boom Stand | SU3 Boom Stand | DU1 Boom Stand |
|---|
| | |
- Expand the scope of operation and observe the object in any direction
- Vertical Post：350mm
- Diameter：φ38mm
- Horizontal moving：400mm
- Base Size：250x240x12mm
- With A3 Focusing Mount
| - Expand the scope of operation and observe the object in any direction
- Vertical Post：380mm
- Diameter：Ф37mm
- Horizontal moving：420mm
- Base Size：260x280x15mm
- With A3 Focusing Mount
| - Expand the scope of operation and observe the object in any direction
- Vertical Post：380mm
- Diameter：Ф32mm
- Horizontal moving：235mm
- Base Size ：210x260x50mm
- With A1 Focusing Mount
|

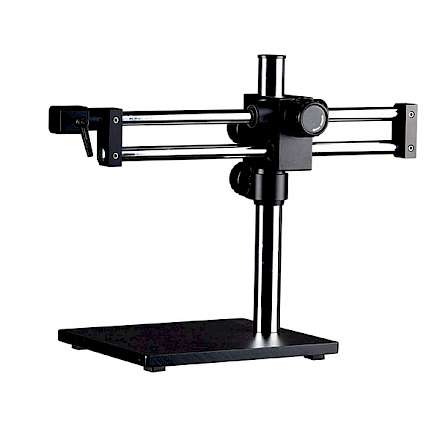

DU2 Boom Stand | RU1 Stand | RU2 Stand |
|---|
| | |
- Expand the scope of operation and observe the object in any direction
- Vertical Post：380mm
- Diameter：Ф37mm
- Horizontal moving：420mm
- Base Size：260x280x15mm
- With A3 Focusing Mount
| - Expand the scope of operation and observe the object in any direction
- Vertical Post：400mm
- Horizontal moving：770mm
- Base Size：98x80x116mm
- Max Clamping Size：50mm
- With A3 Focusing Mount
| - Expand the scope of operation and observe the object in any direction
- Vertical Post：400mm
- Horizontal moving：770mm
- Diameter：Ф25mm
- Vertical Post：275mm
- Base Size：98x80x116mm
- Max Clamping Size：50mm
- With A3 Focusing Mount
|
RU3 Stand | U3 Boom Stand | U4 Boom Stand |
|---|
| | |
- Expand the scope of operation and observe the object in any direction
- Vertical Post：400mm
- Horizontal moving：770mm
- Diameter：Ф25mm
- Vertical Post：323mm
- Base Size：260x280x15mm
- With A3 Focusing Mount
| - Expand the scope of operation and observe the object in any direction
- Front hand wheel is adjustable
- Diameter：Ф38mm
- Vertical Post：493mm
- Cross-bar diameter: Ф38mm
- Cross-bar : 470mm
- Horizontal moving：380mm
- Front telescopic pole diameter: Ф23mm
- Front telescopic pole moving: 52mm
- Bracket connecting rod size：Ф25mm
- Base Size：252x252x40mm
- With XLB-A1 Focusing Mount
| - Expand the scope of operation and observe the object in any direction
- Vertical Post：323mm
- Diameter：φ25mm
- Cross-bar diameter：φ25mm
- Horizontal moving：275mm
- Base Size：φ180mm高40mm
- With A1 Focusing Mount
|
