TPHD1080PA HDMI Displayer
TPHD1080PA is born with XCAM series HDMI camera and can be used for high definition display. It adopts Panasonic IPS LCD panel(Super TFT) to guarantee the wide view angle and high contrast. Together with XCAM HDMI camera, TPHD1080PA could make the imaging & display solution simple, flexible and intuitive. Outstanding performance of TPHD1080PA helps XCAM HDMI camera reach fast frame rate and excellent color.
TPHD1080PA and XCAM0720PHB/PHC Camera

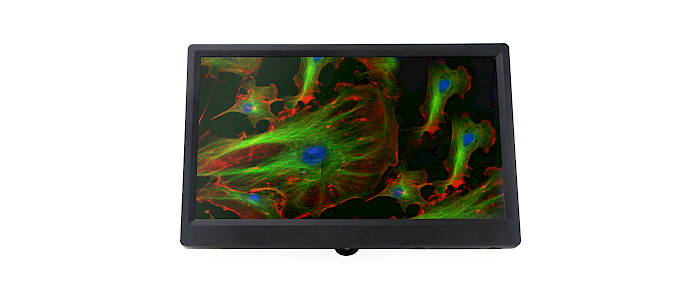

Front View of TPHD1080PA
Back View of TPHD1080PA+XCAM Series Camera
Side view of TPHD1080PA+XCAM Series Camera
Front and Side View of Leica Microscope+XCAMSeries Camera and TPHD1080PA
Front and Side View of Nikon Microscope+XCAMSeries Camera and TPHD1080PA
Front and Side View of Olympus Microscope+XCAMSeries Camera and TPHD1080PA
Front and Side View of Zeiss Microscope+XCAMSeries Camera and TPHD1080PA
TPHD1080PA and XCAM1080PHA,XCAM1080PHB/PHD Camera
Front View of TPHD1080PA
Back View of TPHD1080PA+XCAM Series Camera
Side view of TPHD1080PA+XCAM Series Camera
Front and Side View of Leica Microscope+XCAMSeries Camera and TPHD1080PA
Front and Side View of Nikon Microscope+XCAMSeries Camera and TPHD1080PA
Front and Side View of Olympus Microscope+XCAMSeries Camera and TPHD1080PA
Front and Side View of Zeiss Microscope+XCAMSeries Camera and TPHD1080PA
Dimension of TPHD1080PA
Dimension of TPHD1080PA
Order Code | Active Area(Inch) | Video Fomat | Resolution | Contrast | Color(Million) | View Angle |
|---|---|---|---|---|---|---|
TPHD1080PA | 11.6 | HDMI | 1080P | 1000:1 | 16.7 | IPS Full View |
Basic Performance | |
|---|---|
LCD Panel | Panasonic IPS LCD Screen(Super TFT) |
Input Video Format | HDMI |
Native Resolution | 1920 x 1080 |
Display Type | 16:9 Ratio 11.6 Inch Active Matrix Super TFT LCD |
Typical Contrast Ratio | 1000:1 |
Colors | 16.7 Million |
Viewing Angle(L/R/U/D) | IPS Full Vew |
Active Display Area | 258mm(W) × 145mm(H) |
Pixel Pitch | 0.134(W) X 0.134(H) mm |
Brightness | 350 cd/ sq.m ;400cd sq.m / Optional |
Backlight | LED Backlight， 50000 hours |
Outline Parameter | |
Color | Black |
Dimension | 281(L)*179(H)*15.6(W) mm |
Weight | 400g |
Operating Environment | |
Operating Temperature | -15 Degree~55 Degree |
Humidity Non Condensing | Operating:10%-90%, Storage: 5%-90% |
Synchronization Range | 30-80 KHz Horizontal, 55-75 Hz Vertical |
Power Supply | AC110V-220V /DC12V(1A ) |
Power Consumption | Max 12W |
