60N-C, 60N-T2 Series Zeiss Phototube to C-Mount TV Adapter

Convert the Zeiss trinocular microscope phototube/head/port (have standard ISO 30 mm(1.18 inch) outer diameter for the insertion end to phototube) to traditional C-Mount type(25.4 mm or 1 inch diameter with 32 threads per inch)
With different built-in reduction lens (1.2X,1X, 0.8X, 0.65X, 0.5X, 0.35X) for achieving better field of view from microscope trinocular head(suitable for 4/3” 1”, 2/3”, 1/1.8”, 1/2”, 1/2.5”, 1/3” or 1/4” inch CCD or CMOS sensor chips)
Can be installed in Zeiss UIS trinocular tube such as Axio series microscope
Build of material: anodized aluminum
Telecentric optics with low light deficiency
Parfocal with different microscope objective lenses
Diffraction limited MTF
Aperture totally coupled with UIS microscope objective’s exit pupil

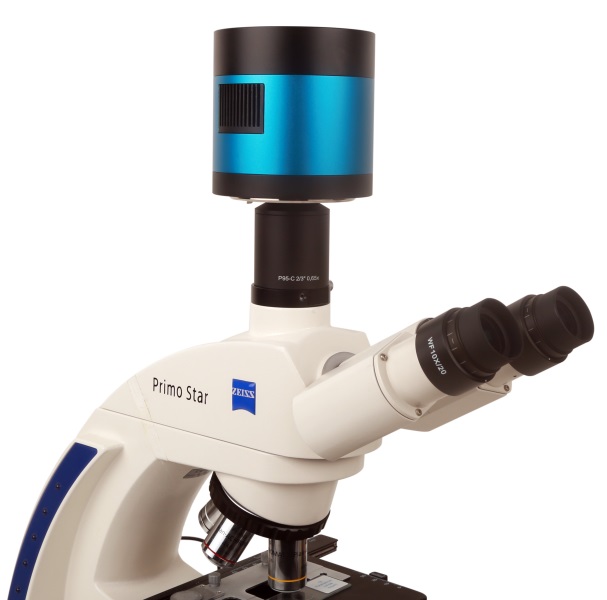

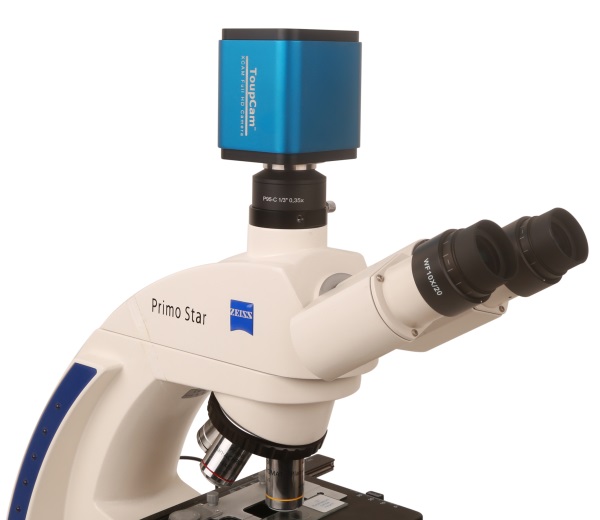

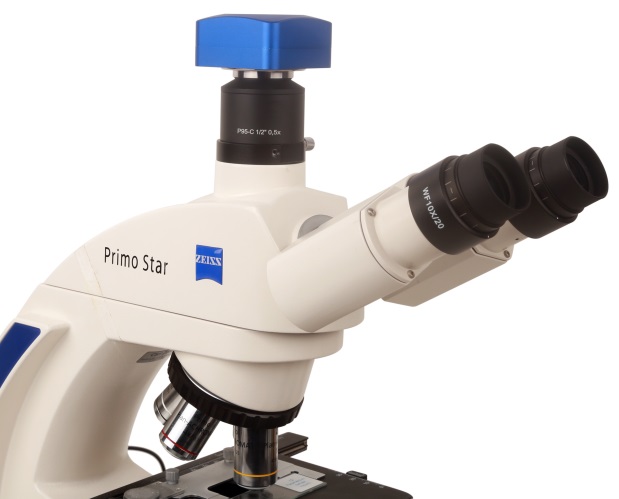

The Primo Star and Camera

Model	Photo	Magnification	Sensor Size	Mount Type
60N-T2 4/3" 1.2x(New)		1.20X	1”, 4/3”	T2-Mount
60N-C 1” 1.0x		1.0X	1”, 2/3”	C-Mount
60N-C 1"0.8x(New)		0.80X	1”,2/3”	C-Mount
60N-C 2/3" 0.63x(New)		0.63X	2/3”,1/1.8”,1/2”	C-Mount

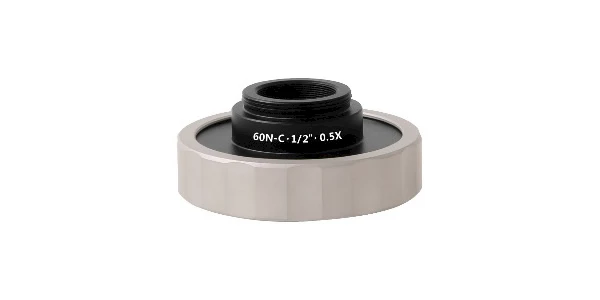

60N-C 1/2" 0.5x		0.50X	1/1.8”,1/2”,1/2.5”	C-Mount
Supported Microscope	Axio Examiner.A1; Axio Examiner.D1; Axio Examiner.Z1; Axio Imager Vario; Axio Imager.A1; Axio Imager.A1m; Axio Imager.A2; Axio Imager.A2m; Axio Imager.D1; Axio Imager.D1 for epi-fluorescence with ApoTome equipment; Axio Imager.D1m; Axio Imager.D2; Axio Imager.D2m; Axio Imager.M1 (Axio Imager.M1 for KS ELISPOT); Axio Imager.M1m; Axio Imager.M2; Axio Imager.M2m; Axio Imager.Z1; Axio Imager.Z1 + ApoTome; Axio Imager.Z1m; Axio Imager.Z2; Axio Imager.Z2m; Axio Lab.A1; Axio Lab.A1 FL-LED; Axio Lab.A1 MAT; Axio Lab.A1 Pol; Axio Observer.A1; Axio Observer.A1 Entry; Axio Observer.D1; Axio Observer.D1 Entry; Axio Observer.D1 Mid Range; Axio Observer.Z1; Axio Observer.Z1 High End; Axio Scope.A1; Axio Scope.A1 Pol; Axio Scope.A1 Vario; Axio Vert.A1; Axio Vert.A1 FL; Axio Vert.A1 FL-LED; Axio Vert.A1 MAT; Axio Zoom.V16; PALM CombiSystem Rel. 4.2; PALM MicroBeam; PALM MicroBeam Rel.4.2; PALM MicroTweezers Rel.4.2; Stemi 508 doc; Stemi 508 trino; SteREO Discovery.V12; SteREO Discovery.V8; SteREO Lumar.V12;
