LEICA TV Adapter_Microscope X

Convert the LEICA trinocular microscope phototube/head/port (have standard 35 mm outer diameter for the insertion end to phototube) to traditional C-Mount type(25.4 mm or 1 inch diameter with 32 threads per inch)
With different built-in reduction lens (1.2X,1X, 0.8X, 0.7X, 0.55X, 0.35X) for achieving better field of view from microscope trinocular head(suitable for 4/3” 1”, 2/3”, 1/1.8”, 1/2”, 1/2.5”, 1/3” or 1/4” inch CCD or CMOS sensor chips)
Can be installed in UIS trinocular tube such as: specially designed for LEICA DM series biology microscopes and industrial microscopes
Build of material: stainless steel material
Telecentric optics with low light deficiency
Parfocal with different microscope objective lenses
Diffraction limited MTF
Aperture totally coupled with LEICA UIS microscope objective’s exit pupil

Model	Photo	Magnification	Sensor Size	Mount Type

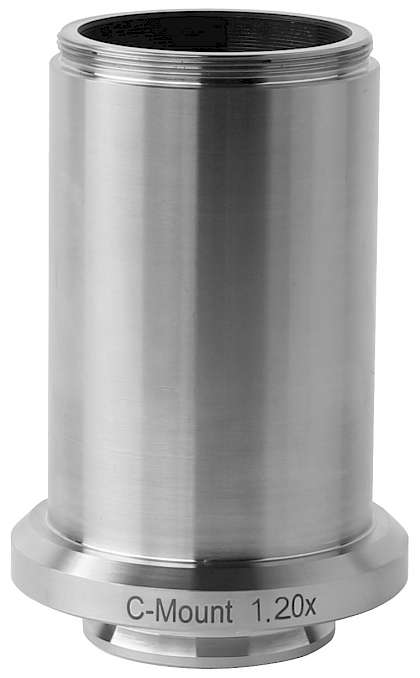

11541510-120 HT2-1.2X(New)		1.2X	4/3”, 1”	T2 Mount
11541510 HC-1.0X		1.0X	1”, 2/3”	C-Mount
11541510-080 HC-0.80X(New)		0.8X	1”, 2/3”	C-Mount
11541543 HC 0.70X		0.7X	2/3”,1/1.8”,1/2”	C-Mount
11541544 HC-0.55X		0.55X	1/1.8”,1/2”,1/2.5”	C-Mount
11541512 HC-0.35X		0.35X	1/2.5”,1/3”,1/4”	C-Mount
Supported Microscope	Specially designed for LEICA DM series biology microscopes and industrial microscopes
