Labomed TV Adapter
upgrade any microscope, promote the imaging
Features
- built-in different reduction lens (1X, 0.63X, 0.5X, 0.35X)
- build of anodized aluminum
- low light deficiency
- parfocal with objective lenses
- diffraction limited MTF
- convert the trinocular microscope phototube/head/port to traditional C-Mount type
Tags: TV Aadapter
Request a Quote?
Get Quote Live chat Email Phone
- Convert the Labomed trinocular microscope phototube/head/port (have standard 35 mm outer diameter for the insertion end to phototube) to traditional C-Mount type(25.4 mm or 1 inch diameter with 32 threads per inch)
- With different built-in reduction lens (1X, 0.63X, 0.5X, 0.35X) for achieving better field of view from microscope trinocular head(suitable for 1”, 2/3”, 1/1.8”, 1/2”, 1/2.5”, 1/3” or 1/4” inch CCD or CMOS sensor chips)
- Can be installed in UIS trinocular tube such as : LB series microscope
- Build of material: anodized aluminum
- Telecentric optics with low light deficiency
- Parfocal with different microscope objective lenses
- Diffraction limited MTF
- Aperture totally coupled with UIS microscope objective's exit pupil
Model | Photo | Magnification | Sensor Size | Mount Type |
|---|---|---|---|---|
LB1.0X |
| 1X | 1”, 2/3” | C-Mount |
LB0.75X |
| 0.75X | 2/3”,1/1.8”,1/2” | C-Mount |
LB0.65X |
| 0.65X | 1/1.8”,1/2”,1/2.5” | C-Mount |

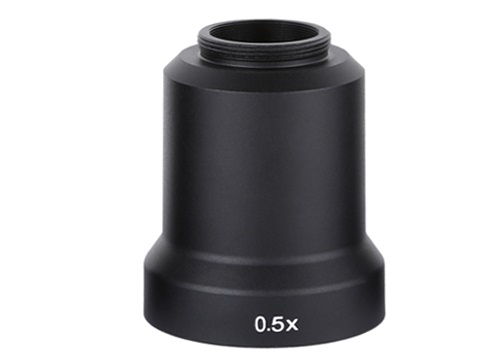

LB0.50X |
| 0.5X | 1/2.3,1/2.5”,1/3” | C-Mount |
LB0.35X |
| 0.35X | 1/2.5”,1/3”,1/4” | C-Mount |
Supported Microscope | Specially designed for Labomed LB series microscopes | |||
