LHCCD Series Linear CCD Camera

C-mount, F-mount

2048~3648 pixel

16-Bit A/D converter

External trigger capabilit

Linear USB2.0 CCD camera with C-mount, f-mount, and M72x0.75 photography standards
2048~3648 pixel silicon linear CCD array
16-Bit A/D converter for high intensity resolution
External trigger capability
Optical integration time adjustable from 2 to 4000ms
Board-level camera, ideal for OEM applications
No external power supply required
High scan rate (up to 120 scans/second)
SDK for user applications
Demo graphical user interface
Compatible to Windows XP, Vista and 7/8(32 or 64 bit)

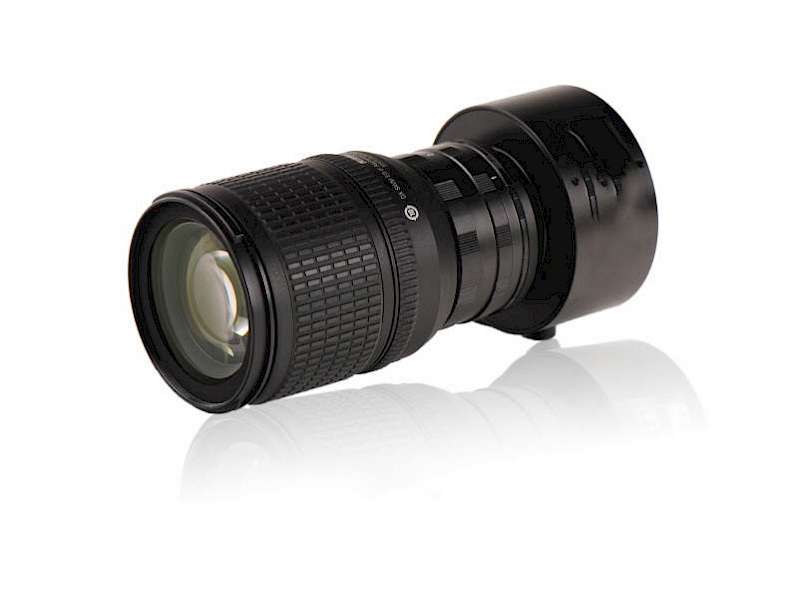

LHCCD Series and Lens

LHCCD Series

Order Code	Sensor	Size(mm)	Pixel(μm)	FPS/Resolution	Binning	Exposure(ms)
LHCCD00511	ILX511 (M)	28mm	14x200	475@2048	NA	2ms~4000ms,
LHCCD00554	ILX554 (M)	28mm	14x56	475@2048	NA	2ms~4000ms
LHCCD01304	TCD1304 (M)	29.184mm	8x200	125@3648	NA	3.8ms~4000ms

OTHER HARDWARE CONFIGURATION
Capture/Control API	SDK and Example Code
Capture Mode	Single Camera Multiple Instance and Multiple Cameras Supported
Lens Mount(Optional)	M42
Host Interface	USB2.0
SOFTWARE ENVIRONMENT
Operating System	Microsoft® Windows® XP / Vista / 7 /8 (32 & 64 Bit)
PC Requirements	CPU: Equal to Intel Core 2 2.8GHz or Higher
	Memory:2GB or More
	USB Port:USB2.0 High-speed Port
OPERATING ENVIRONMENT
Operating Temperature	-30~70
Storage Temperature	-40~85
Operating Humidity	30~80%RH
Storage Humidity	10~60%RH
Power Supply	DC 5V Over USB Port
