USB Series Micro-spectrometer
This spectrometer is applicable for spectral detection within the wavelength range between 200nm and 1100nm.
Due to their high stability and performance, these portable instruments can greatly satisfy the increasing need for their use in scientific research, industrial manufacture, and online detections and so on. The ToupSpm is capable of measuring: Spectral power distribution, Absorbance, transmission, Reflection, Relative irradiance, Chromaticity coordinates, Color temperature, Color rendering index, Color tolerance, Color difference, Color purity, Main wavelength, Luminous flux, Luminance, Irradiance power, Luminous efficiency etc.
For various kinds of samples, light sources and display devices. In addition, they can be utilized to achieve the photochromic analysis of: Florescence lamps, High pressure gas discharge light sources, Halogen-tungsten lamps, medical light sources, Semi-conductor lighting devices, Display devices such as CRT, LCD, PDP, ELD, and VFD.
We can offer the best solutions for spectral detections. With different system configurations and sampling accessories, it can achieve high spectral resolution up to 0.2nm, stable wide and narrow line spectrums with different optical interfaces. Furthermore, with the easy-to-use basic operating software and high efficient SDK, users can easily produce various kinds of spectral detection systems customized to meet their own goals.
USB2000A-ILX511(P/N: TS300511)
Mechanical Parameters | |||
|---|---|---|---|
Dimension(mm) | 95x68.5x36 | ||
Weight (g) | 210 | ||
Detector Specifications | |||
Detector | Sony ILX511 2048 linear CCD array | ||
Wavelength Response Range(nm) | 330-1100 | ||
Active Pixels | 2048 | ||
Pixel Size(um) | 14x200 | ||
Saturation Exposure(lx.s) | 0.004 | ||
Saturation Output Voltage | 0.8V | ||
A/D Resolution | 16bit | ||
Dark Signal Voltage(mv) | 3 | ||
Sensitivity Non-uniformity | 1% | ||
Sensitivity(V/lx.s) | 200 | ||
Optical Bench | |||
Optical System | f/4, asymmetrical crossed Czerny-Turner | ||
Focal Length(mm) | 45(Input); 70(Output) | ||
Entrance Aperture(um) | 5,10,15,20,50 etc. width slits or fiber(customizable) | ||
Grating | Various kind of scoring grating or holographic grating with different grating constants and flare wavelength(customizable) | ||
Cylindrical Lens | Optional | ||
Optical Filter | Band pass or long pass filters to eliminate secondary spectrum | ||
Fiber and Fiber Connection | NA 0.22,SMA905(customizable) | ||
Spectroscopic | |||
Wavelength Range | Depends on optical grating | ||
Optical Resolution (nm) | 0.2-10 FWHM (Depends on grating constant, width of slit and detector model) | ||
SNR | 300:1 (Full signal) | ||
Wavelength Tolerance (nm) | About ±0.2 | ||
Dark noise (RMS counts) | 50 | ||
Integration Time | 2ms-4s | ||
Dynamic Range | 267 | ||
Stray light | <0.05% at 550nm | ||
Electronics | |||
Power Consumption | 300 mAx5 V DC | ||
Data Transfer Speed | Full spectrum into memory every 2.4 ms at USB 2.0 | ||
Computer | |||
Operating System | Windows / XP / Vista/7 /8 (32 and 64) | ||
Interface | USB 2.0 (480Mbps), compatible with USB 1.1 | ||
Pre-defined System Components | |||
Name | Customizable Parts | Remark | |
Slit | Width (um) | 10, 20, 50, 100 .etc | |
Grating | Lines Per Unit (L/mm) | 300, 600, 1200, 1800 | |
Wavelength Range(nm) | 200-1100 (User defined, about 650 range with 600 lines/mm grating) | ||
Fiber | Core Diameter (um) | 9, 50, 200, 400, 600 .etc | |
Wavelength Range(nm) | 200-1100 | ||
Outer Protection Layer | Normal or enhanced jacketing | ||
Interface Type | SMA 905 (standard) or FC, ST .etc | ||
Detector | Model | Sony ILX511 | |
Cylindrical Lens | Optional | Enhance system’s light gathering ability | |
Optional Components | |||
Name | Remark | ||
Light Source | Used for wide range spectral measurements or wavelength calibration: for example halogen tungsten, xenon or argon light sources | ||
Integration Sphere | Used to acquire uniform light | ||
Reflection Measurement Accessory | Components used for reflection spectrum measurements: for example standard reflection board or specialized clamp | ||
Transmission Measurement Accessory | Components used for transmission spectrum measurement: for example sample holder and various kinds of cuvettes | ||
Packing List | |||
Name | Amount | ||
Jingtong Microspectrometer | USB2000A | ||
Fiber with SMA 905 Interface | 1 | ||
Mini USB Data Transfer Wire | 1 | ||
CD of Software and SDK | 1 | ||
USB2000B-ILX554(P/N: TS300554)
Mechanical Parameters | ||||
|---|---|---|---|---|
Dimensions (mm) | 95×68.5×36 | |||
Weight (g) | 210 | |||
Detector Specification | ||||
Detector | Sony ILX554 2048 linear CCD array | |||
Wavelength Response Range (nm) | 330-1000 | |||
Active Pixels | 2048 | |||
Pixel size (µm) | 14×56 | |||
Saturation Exposure(lx·s) | 0.004 | |||
Saturation Output Voltage | 1V | |||
A/D Resolution | 16 bit | |||
Dark Signal Voltage(mv) | 3 | |||
Sensitivity Non-uniformity | 1% | |||
Sensitivity (V/lx.s) | 240 | |||
Optical Bench | ||||
Optical System | f/4, asymmetrical crossed Czerny-Turner | |||
Focal length (mm) | 45 (Input); 70 (Output) | |||
Entrance Aperture (µm) | 5, 10, 15, 20, 50 etc. width slits or fiber (customizable) | |||
Grating | Various kinds of scoring grating or holographic grating with different grating constants and flare wavelengths (customizable) | |||
Cylindrical Lens | optional | |||
Optical Filter | Band pass or long pass filters to eliminate secondary spectrum | |||
Fiber and Fiber Connection | NA 0.22, SMA905 (customizable) | |||
Spectroscopic | ||||
Wavelength Range | Depends on optical grating | |||
Optical Resolution (nm) | 0.2-10 FWHM (Depends on grating constant, width of slit and detector model) | |||
SNR | 300:1 (Full signal) | |||
Wavelength Tolerance (nm) | About ±0.2 | |||
Dark noise (RMS counts) | 50 | |||
Integration Time | 2ms-4s | |||
Dynamic Range | 333 | |||
Stray Light | <0.05% at 550nm | |||
Electronics | ||||
Power Consumption | 300 mA×5 V DC | |||
Data Transfer Speed | Full spectrum into memory every 2.4 ms at USB 2.0 | |||
Computer | ||||
Operating System | Windows /XP/Vista/7 /8(32 and 64) | |||
Interface | USB 2.0 (480Mbps), compatible with USB 1.1 | |||
Pre-defined System Components | ||||
Name | Customizable Parts | Remark | ||
Slit | Width (µm) | 10, 20, 50, 100 .etc | ||
Grating | Lines Per Unit (L/mm) | 300, 600, 1200, 1800 | ||
Wavelength Range(nm) | 200-1100 (User defined, about 650 range with 600 lines/mm grating) | |||
Fiber | Core Diameter (µm) | 9, 50, 200, 400, 600 .etc | ||
Wavelength Range(nm) | 200-1100 | |||
Outer Protection Layer | Normal or enhanced jacketing | |||
Interface Type | SMA 905 (standard) or FC, ST .etc | |||
Detector | Model | Sony ILX554 | ||
Cylindrical Lens | Optional | Enhance system’s light gathering ability | ||
Optional Components | ||||
Name | Remark | |||
Light Source | Used for wide range spectral measurements or wavelength calibration: for example halogen tungsten, xenon or argon light sources | |||
Integration Sphere | Used to acquire uniform light | |||
Reflection Measurement Accessory | Components used for reflection spectrum measurements: for example standard reflection board or specialized clamp | |||
Transmission Measurement Accessory | Components used for transmission spectrum measurement: for example sample holder and various kinds of cuvettes | |||
Packing List | ||||
Name | Amount | |||
Jingtong Micro-spectrometer | USB2000B | |||
Fiber with SMA 905 Interface | 1 | |||
Mini USB Data Transfer Wire | 1 | |||
CD of Software and SDK | 1 | |||

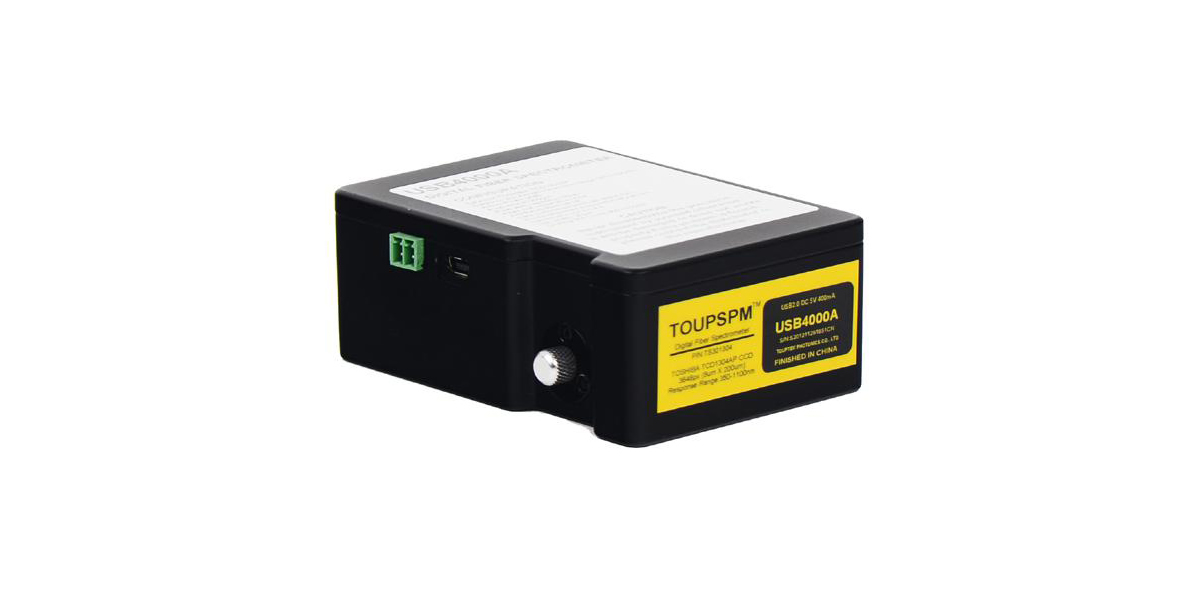

USB4000A-TCD1304(P/N: TS301304)
Mechanical Parameters | |||
|---|---|---|---|
Dimensions (mm) | 95×68.5×36 | ||
Weight (g) | 210 | ||
Detector Specification | |||
Detector | TCD1304AP linear CCD array | ||
Wavelength Response Range (nm) | 330-1100 | ||
Active Pixels | 3648 | ||
Pixel size (µm) | 8×200 | ||
Saturation Exposure（lx·s） | 0.004 | ||
Saturation Output Voltage | 600mv | ||
A/D Resolution | 16 bit | ||
Dark Signal Voltage（mv） | 2 | ||
Photo Response non-uniformity | 1%(MAX) | ||
Sensitivity (V/lx·s) | 160 | ||
Optical Bench | |||
Optical System | F/4, asymmetrical crossed Czerny-Turner | ||
Focal length (mm) | 50 (Input); 65 (Output) | ||
Entrance Aperture (µm) | 5, 10, 15, 20, 50 .etc width slits or fiber (customizable) | ||
Grating | Various kinds of scoring grating or holographic grating with different grating constants and flare wavelengths (customizable) | ||
Cylindrical Lens | optional | ||
Optical Filter | Band pass or long pass filters to eliminate secondary spectrum | ||
Fiber and Fiber Connection | NA 0.22, SMA905 (customizable) | ||
Spectroscopic | |||
Wavelength Range | Depends on optical grating | ||
Optical Resolution (nm) | 0.2-10 FWHM (Depends on grating constant, width of slit and detector model) | ||
SNR | 300:1 (Full signal) | ||
Wavelength Tolerance (nm) | About ±0.2 | ||
Dark noise (RMS counts) | 50 | ||
Integration Time | 3.8ms-4s | ||
Dynamic Range | 300 | ||
Stray light | <0.05% at 550nm | ||
Electronics | |||
Power Consumption | 300 mA×5 V DC | ||
Data Transfer Speed | Full spectrum into memory every 3.6ms at USB 2.0 | ||
Computer | |||
Operating System | Windows /XP/Vista/7 /8(32 and 64) | ||
Interface | USB 2.0 (480Mbps), compatible with USB 1.1 | ||
Pre-defined System Components | |||
Name | Customizable Parts | Remark | |
Slit | Width (µm) | 10, 20, 50, 100 .etc | |
Grating | Lines Per Unit (L/mm) | 300, 600, 1200, 1800 | |
Wavelength Range(nm) | 200-1100 (User defined, about 650 range with 600 lines/mm grating) | ||
Fiber | Core Diameter (µm) | 9, 50, 200, 400, 600 .etc | |
Wavelength Range(nm) | 200-1100 | ||
Outer Protection Layer | Normal or enhanced jacketing | ||
Interface Type | SMA 905 (standard) or FC, ST .etc | ||
Detector | Model | Toshiba TCD1304 | |
Cylindrical Lens | Optional | Enhance system’s light gathering ability | |
Optional Components | |||
Name | Remark | ||
Light Source | Used for wide range spectral measurements or wavelength calibration: for example halogen tungsten, xenon or argon light sources | ||
Integration Sphere | Used to acquire uniform light | ||
Reflection Measurement Accessory | Components used for reflection spectrum measurements: for example standard reflection board or specialized clamp | ||
Transmission Measurement Accessory | Components used for transmission spectrum measurement: for example sample holder and various kinds of cuvettes | ||
Packing List | |||
Name | Amount | ||
Jingtong Micro-spectrometer | USB4000A | ||
Fiber with SMA 905 Interface | 1 | ||
Mini USB Data Transfer Wire | 1 | ||
CD of Software and SDK | 1 | ||
MAYA2000A-HAMAMATSU S9840(P/N: TS309840)
Mechanical Parameters | |||
|---|---|---|---|
Dimensions (mm) | 160×110×60 | ||
Weight (g) | 900 | ||
Detector Specification | |||
Detector | HAMAMATSU S9840 | ||
Wavelength Response Range (nm) | 200-1100 | ||
Active Pixels | 2048x14 | ||
Pixel size (µm) | 14x14 | ||
Pixel well Capacity (ke-) | 130 | ||
Read Out Noise (e- rms) | 25 | ||
A/D Resolution | 16 bit | ||
Dark Current (pA/cm2) | 40 (MAX 120) | ||
Photo Response Non-uniformity | ±3% | ||
Sensitivity (uV/e-) | 4.0 | ||
Optical Bench | |||
Optical System | F/4, symmetrical crossed Czerny-Turner | ||
Focal Length (mm) | 98.5 (input); 98.5 (output) | ||
Entrance Aperture (µm) | 5, 10, 15, 20, 50 .etc width slits or fiber (customizable) | ||
Grating | Various kinds of scoring grating or holographic grating with different grating constants and flare wavelengths (customizable) | ||
Cylindrical Lens | optional | ||
Optical Filter | Band pass or long pass filters to eliminate secondary spectrum | ||
Fiber and Fiber Connection | NA 0.22, SMA905 (customizable) | ||
Spectroscopic | |||
Wavelength Range | Depends on optical grating | ||
Optical Resolution (nm) | 0.14-10 FWHM (Depends on grating constant, width of slit and detector model) | ||
SNR | 450:1 (Full signal) | ||
Wavelength Tolerance (nm) | About ±0.2 | ||
Dark noise (RMS counts) | 50 | ||
Integration Time | 10µs-7.8s | ||
Dynamic Range | 2.0×108(system); 5200:1 (single acquisition) | ||
Stray light | <0.05% at 550nm | ||
Electronics | |||
Power Consumption | 400 mA×5 V DC | ||
Data Transfer Speed | Full spectrum into memory every 5 ms at USB 2.0 | ||
Computer | |||
Operating System | Windows /XP/Vista/7 /8(32 and 64 bit) | ||
Interface | USB 2.0 (480Mbps), compatible with USB 1.1 | ||
Pre-defined System Components | |||
Name | Customizable Parts | Remark | |
Slit | Width (µm) | 10, 20, 50, 100 .etc | |
Grating | Lines Per Unit (L/mm) | 300, 600, 1200, 1800 | |
Wavelength Range(nm) | 200-1100 (User defined, about 650 range with 600 lines/mm grating) | ||
Fiber | Core Diameter (µm) | 9, 50, 200, 400, 600 .etc | |
Wavelength Range(nm) | 200-1100 | ||
Outer Protection Layer | Normal or enhanced jacketing | ||
Interface Type | SMA 905 (standard) or FC, ST .etc | ||
Detector | Model | HAMAMATSU S9840 | |
Cylindrical Lens | Optional | Enhance system’s light gathering ability | |
Optional Components | |||
Name | Remark | ||
Light Source | Used for wide range spectral measurements or wavelength calibration: for example halogen tungsten, xenon or argon light sources | ||
Integration Sphere | Used to acquire uniform light | ||
Reflection Measurement Accessory | Components used for reflection spectrum measurements: for example standard reflection board or specialized clamp | ||
Transmission Measurement Accessory | Components used for transmission spectrum measurement: for example sample holder and various kinds of cuvettes | ||
Packing List | |||
Name | Amount | ||
Jingtong Microspectrometer | MAYA2000A | ||
Fiber with SMA 905 Interface | 1 | ||
Mini USB Data Transfer Wire | 1 | ||
CD of Software and SDK | 1 | ||
