BJX-1000 Portable Metallurgical Microscope with optional GB analysis software

BJX-1000

100X-500X, USB, WIFI, available to match CCD camera, WIFI, Electronic eyepiece, metallurgical software

Features


  • Compact and portable
  • Triple nosepiece for convenient use without changing objectives
  • LED illuminator (battery), without additional charge required
  • Equipped with magnetic base which could be fixed on the sample directly

Tags: Compound MicroscopesMetallurgical MicroscopesIndustrial Inspection

Request a Quote?


Get Quote Live chat Email Phone

Field site
WF10X(Φ18mm)
100X-500X

BJX1000 Field Sites Portable Metallurgical Microscope extensively used for metallorgraphic examination and failure analysis of large workpiece. Grind sampling/ observe directly on the workpiece without cutting and sampling. Improve metal inspection effeciency and products quality control. No damage to the workpiece , especially the finished products. Available to match CCD camera, WIFI, Electronic eyepiece, metallurgical software which are convenient to collect, save and input images for analysis and research.

BJX-1000

BJX-1000

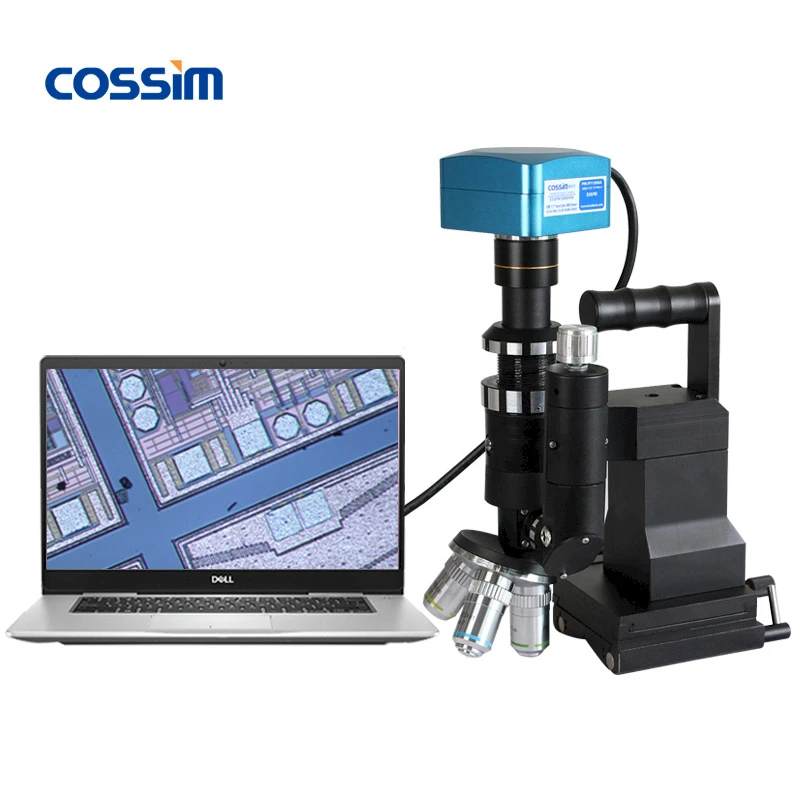

BJX-1000 with USB

BJX-1000 with USB

BJX-1000 with WIFI

BJX-1000 with WIFI

BJX-1000 with WIFI (buil-in battery)

BJX-1000 with WIFI(built-in battery)

Specification for BJX-1000

Plan Eyepiece

WF10X(Φ18mm)

Plan Metallurgical Objective (Long WD)

10X20X50X

Total Mag.

100X-500X

Focus Range

Coarse movement: 25mm

Fine movement: 1mm

Magnetic Base

Moving Stage: 90X70mm; Range: 10mm(vertical), 10mm (horizontal); suction force: 10mm X,Y axis, on-off magnetic foot,

Suction force:25N/cm2, with switch supply

Mechanical Tube

160mm

Illuminators

3W LED, charging power supply

Weight(Instrument)

Net: 4kg, Gross: 6.5kg

Suitcase Size

Aluminium alloy suitcase: 33X25X20cm

Packing List for BJX-1000

A

Main Body

B

Eyepiece 10X

C

Objective (10X,20X,40X)

D

Polarizer

E

Power Cord

F

Suitcase

G

Warranty Card

H

Certificate

I

Operation Manual

Optional Accessories(Please buy the following products if you need)

A

Plan Eyepiece

WF16XWF20X

B

Plan Metallographic Objective

5X40X60X80X100X

C

Microscope Camera

USB HD5-12MP Camera, Wifi camera can operate live observation on phone and Ipad directly. Equipped with hot spots for 5 people to observe simultaneously.

D

Metallographic Analysis Software

GB analysis software with 438 latest standard, in line with American standard and other functions, such as: automatic rating and report.
