BJX-2000 Portable Metallurgical Microscope with Horizontal Photographic Output

BJX-2000

100X-400X, triple nosepiece, USB,WIFI

Features


  • Compact and portable
  • Triple nosepiece for convenient use without changing objectives
  • LED illuminator (battery), without additional charge required
  • Equipped with magnetic base which could be fixed on the sample directly
  • Equipped with dedicated camera interface, simultaneous camera and eyepiece ues
  • Extensively used for Metallurgical Labs, especially field sites

Tags: Compound MicroscopesMetallurgical MicroscopesIndustrial Inspection

Request a Quote?


Get Quote Live chat Email Phone

WF10X(Φ18mm)
LED, powered by external dry battery
Triple nosepiece
magnetic base
on-off magnetic foot

BJX2000 Field Sites Portable Metallurgical Microscope extensively used for metallorgraphic examination and failure analysis of large workpiece. Grind sampling/ observe directly on the workpiece without cutting and sampling. Improve metal inspection effeciency and products quality control. No damage to the workpiece , especially the finished products. Available to match CCD camera, WIFI, Electronic eyepiece, metallurgical software which are convenient to collect, save and input images for analysis and research.

BJX-2000

BJX-2000 with USB

BJX-2000 with USB

BJX-2000 with WIFI

BJX-2000 with WIFI

BJX-2000 with WIFI(battery)

BJX-2000 with WIFI(battery)

Specification for BJX-2000

Plan Eyepiece

WF10X(Φ18mm)

Plan Achromatic Objective

10X20X40X/0.65Metallurgical Objective

Total Mag.

100X-400X

Nosepiece

Triple

Video Adapter

Horizontal Photographic Output

Focus Range

Coarse movement: 30mm

Fine movement: 1mm

Magnetic Base

10mm X,Y axis, on-off magnetic foot,

Suction force:25N/cm2, with switch supply

Mechanical Tube

160mm

Illuminators

LED, powered by external dry battery

Weight(Instrument)

Net: 4kg, Gross: 6.5kg

Suitcase Size

Aluminium alloy suitcase: 33X25X20cm

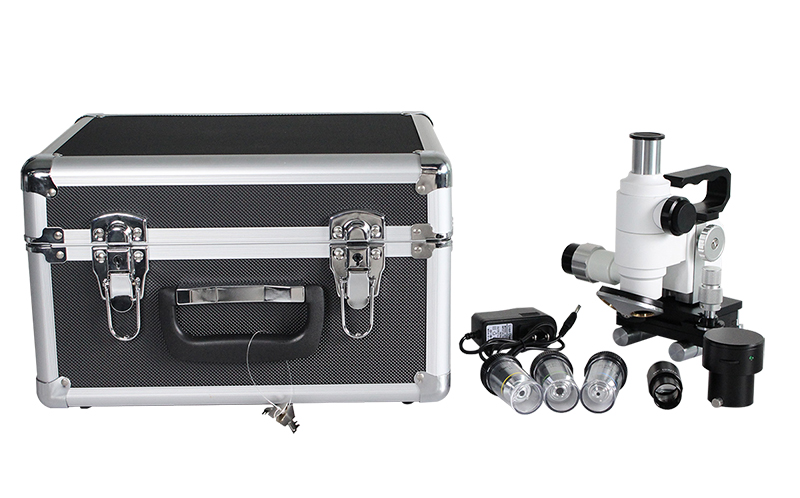

Packing List for BJX-2000

A

Main Body

B

Eyepiece 10X

C

Objective (10X,20X,40X)

D

Magnetic Base

E

Power Cord

F

Suitcase

H

Warranty Card

I

Certificate

J

Operation Manual

Optional Accessories(Please buy the following products if you need)

Plan Eyepiece

WF16XWF20X

Plan Metallographic Objective

5X50X60X80X100X

Microscope Camera

USB HD5-12MP Camera, Wifi camera can operate live observation on phone and Ipad directly. Equipped with hot spots for 5 people to observe simultaneously.

Metallographic Analysis Software

GB analysis software with 438 latest standard, in line with American standard and other functions, such as: automatic rating and report.
