VGM700 Trinocular Continuous Zoom Jewelry & Gemology Microscope with imported lens
12X-75X, suitable for operators with different height
Features
- Optional camera system can be connected to computer or digital camera to save photos of samples
- Arm and base can be adjusted and rotated at different angles
- Equipped with imported lens, durable and high definition
Tags: Stereo MicroscopesGemological Microscopes
Request a Quote?
Get Quote Live chat Email Phone
115mm
Ratio: 1:6.3

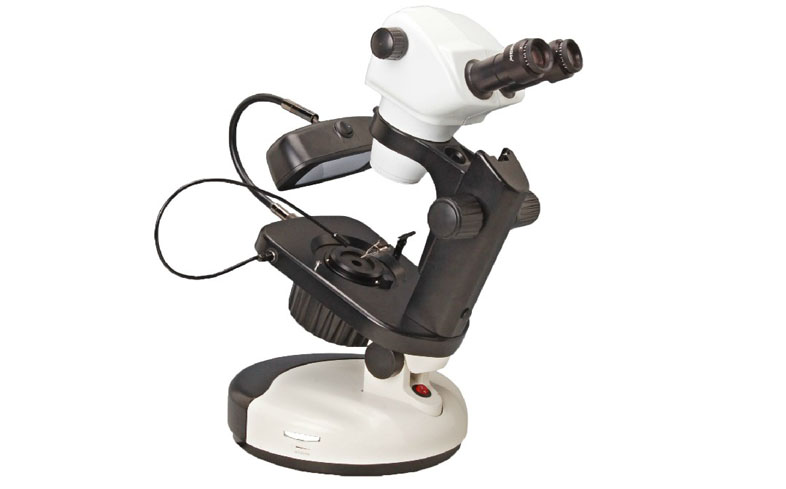

VGM700 adopts rotatable arm and 325°rotating base which is suitable for operators with different height. This microscope is used for store display, teaching and enthusiasts. VGM700 is also used in jewelry identification to observe the intrinsic and surface characteristics of the sample and is invisible to the naked eye. It is an indispensable gem identification instrument for the identification of synthetic products, optimized treatments and artifacts. It also has extremely important applications in diamond grading, such as observing clarity characteristics, observing and evaluating the color grade of diamonds.
VGM700
Specification for VGM700 | |
|---|---|
Eyepiece | Wide-angle WF15X(Φ16mm) adjustable diopter |
Objective | 0.8X-5X Ratio: 1:6.3 |
Total Mag. | 12X-75X (Continuous Zoom) |
Head | Trinocular, 45°inclined, 360°Rotatable, Diopter adjustment: ±5 diopters |
Arm | Rotate 0°-38° |
Working Distance | 115mm |
Illumination | Three modes: bright field, dark field and top light: 6V20W super bright adjustable halogen light, Φ2-41mm continuous adjustable diaphragm. 7W daylight top lamp, color temperature meets the requirement of diamond grading lighting. |
Stand | 325° rotatable |
Gem clips | The steel gem clip has moderate firm and reduce the light blocking the waist of the gem, which make a all-round observation. |
Weight | Net: 9kg, Gross: 14kg |
Accessories for VGM700 | |
|---|---|
Eyepiece | WF10X(Φ22mm), WF20X(Φ12mm) |
Auxilliary Objective | 0.5X,2X |
Micrometer Eyepiece | WF10X(Φ22mm) |
Electronic eyepiece | 3MP,5MP,9MP,14MP (imaging with leaflets, timing, continuous acquistion of images, display scale, measurement and other functions; Many other output methods: multi-media, print, e-mail) |
DSLR digital camera | Canon, Nikon, Leica and other camera with over 10MP (photo, video and other functions) |
