PL Apochromatic N.A. L.W.D. Objective, scientific research, colleges and universities
Tags: Compound MicroscopesBiological MicroscopesInverted MicroscopesClinical and Lab

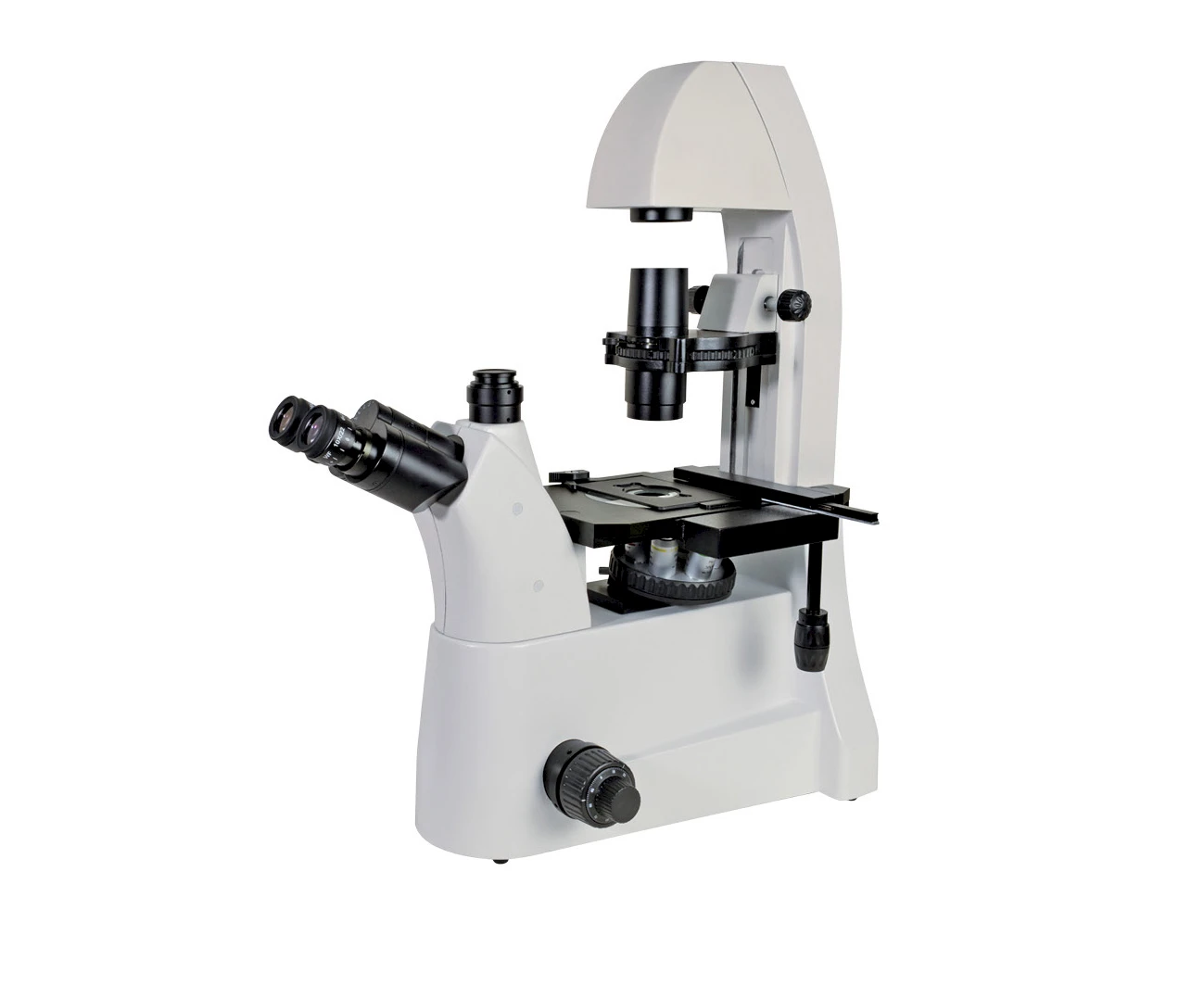

BLD-40 inverted biological microscope adopts with superior infinite optical system. Equipped with long working distance plan objectives and wide field of view eyepieces. Compact and stable high rigid body fully meets the shockproof requirement of the microscope operation. The ergonomic ideal design meets the needs and makes operation more convenient and comfortable, and broad space available for operator. BLD-40 is suitable for microscopic observation of cell tissue, transparent liquid tissue and cultured tissue in the petri dish. It is also widely used in many departments, such as scientific research institutes, colleges and universities, medical and health, inspection and quarantine, farming and stock raising and dairy industry department etc.
BLD-40
Specification for BLD-40 | |
---|---|
Optical System | Infinite optical system |
Head | Trinocular, inclined 45° |
Interpupillary Distance | 50mm-75mm |
Eyepiece | Wide FOV Plan Eyepiece WF10×/22mm |
Objective | PL Apochromatic N.A. L.W.D. Objective 4×/0.15(W.D.21.6mm) 10×/0.3(W.D.3mm, Phase Contrast) 20×/0.5(W.D.4.27mm,Phase Contrast) 40× /0.60(W.D.2.23mm) |
Cover-glass Thickness | 1.5mm |
Nosepiece | Sextuple Nosepiece |
Stage | Double Layer Mechanical Stage |
Size: 305mm×180mm | |
Moving Range: 75mm×40mm | |
Low XY adjusting handwheel | |
Focusing | Coarse and fine coaxial focusing, fine focusing scale value: 0.001mm |
Illuminator | 3WLED, brightness adjustable |
Condensor | Abbe condensor, working distance: 28mm |
Phase Contrast Device | Contrast table(28mm), centering telescope |
Color Filter | Blue, Green, Yellow, Frosted Glass |
Accessories for BLD-40 | |
---|---|
Eyepiece | WF10X/20mm, crosshair with reticule 0.1mm, WF15×/17mm、WF20×/12.5mm |
Abbe Condensor | W.D 70mm, Turntable(70mm) |
Photography attachment & CCD C-mount | 0.5X、0.57X、0.75X |
Objective | 4X/0.15(W.D.21.6mm)、40X/0.60(W.D.2.23mm) |
Electron Eyepiece | 1.3MP、2MP、3MP、5MP、10MP |
Camera | Color 1/3” CCD High resolution 700 TV lines |
Imaging Analysis Software |
