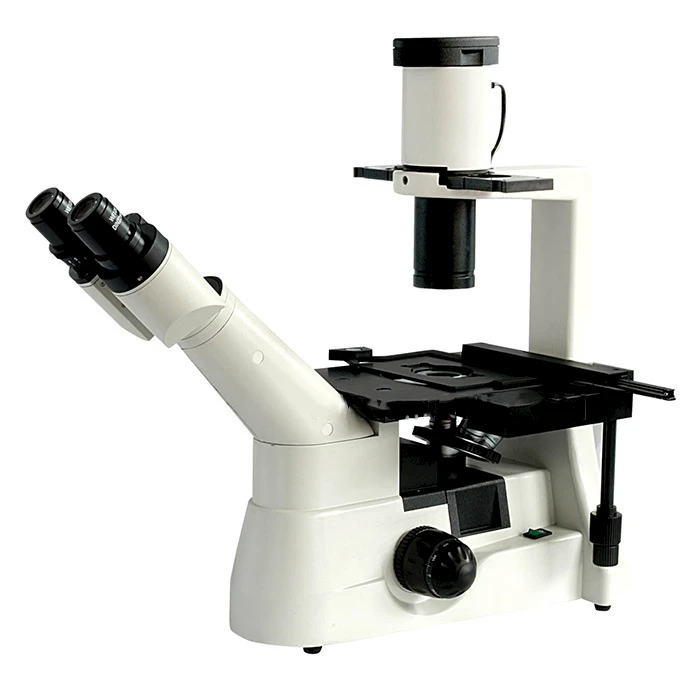

BLD-20 & BLD-20T WF10X/ 22mm Binocular Inverted Biological Microscope

BLD-20 & BLD-20T

400X, biology, histology, microbiology, immunology and medical science etc.

Features


  • Superior optical performance
  • Long working distance objectives
  • Super-high resolution and high contrast
  • High-quality images
  • “T”type base, streamline figure design

Tags: Compound MicroscopesBiological MicroscopesInverted Microscopes

Request a Quote?


Get Quote Live chat Email Phone

WF10X/ 22mm
Infinite PL achromatic L.W.D. Objective
N.A.0.3 Abbe condensor
Centering Telescope

BLD-20 & BLD-20T meet the various fields' requirements, such as biology, histology, microbiology, immunology and medical science etc, with its superior optical performance, broadly application, stable body and skillful appearance. This microscope provides not only long working distance objective with excellent performance, super-high resolution and high contrast, but also high-quality images because of high-contrast phase contrast objective and long working distance condensor. The stable and reliable “T”type base, streamline figure design, simple and convenient operating system make your work easy and relax.

BLD-20 & BLD-20T

Item

Head

BLD-20

Binocular, inclined 45°

BLD-20T

Trinocular, inclined 45°

Specification for BLD-20 & BLD-20T

Interpupillary Distance

50mm-75mm

Eyepiece

WF10X/ 22mm

Objective

Infinite PL achromatic L.W.D. Objective

L.W.D. PL4X/0.1W.D .25mm

L.W.D. PL10X/0.25W.D .12mm

L.W.D. PL20X/0.4W.D .10mm

L.W.D. PL40X/0.6W.D .7mm

L.W.D. objective

L.W.D. PL20X

Stage

Mechanical Layer Stage

Size: 242mm×172mm

Central Stage: Φ110mm

Moving Range: 75mm×50mm

Focusing

Coarse and fine coaxial focusing, fine focusing scale value: 0.002mm

Condensor

N.A.0.3 Abbe condensor, working distance: 75mm

Phase Contrast Slide

Center Aadjustable

Centering Telescope

Color Filter

Blue, Green, Yellow, Frosted Glass

Illuminator

Halogen 12V/20W

Brightness Adjustable

Accessories for BLD-20 & BLD-20T

Eyepiece

WF10X/18mm, cross with reticle 0.1mm

Objective

L.W.D. objective

L.W.D. PL10X

L.W.D. phase contrast objective

L.W.D. PL40X

Flourescence

BG Waveband, 220V (110V) 100W Mercury Lamp

Photography Device

MD / PK slot, 4X eyepiece

Electron Eyepiece

1.3MP3MP CMOS
