BLM-24 & BLM-24L 2-Binocular Multi-Viewing Biological Microscope for Educational School
1000X, LED cursor indicator for teaching demonstration
Features
- Larger space for observation
- Sharp and clarity images
- LED cursor indicator
- Infinite optical system
- N.A.1.25 Abbe Condenser
Tags: Compound MicroscopesBiological MicroscopesMulti-Viewing
Request a Quote?
Get Quote Live chat Email Phone
220V/110V, 6V20W
In order to promote the communication between teachers and students, BLM-24 & BLM-24L are equipped with LED cursor indicator which can show the image with an arrow pointer in a microscope. The brightness can be asjudted and the arrow can be moves arbitrarily. The space between the observers is more larger.
BLM-24 & BLM-24L

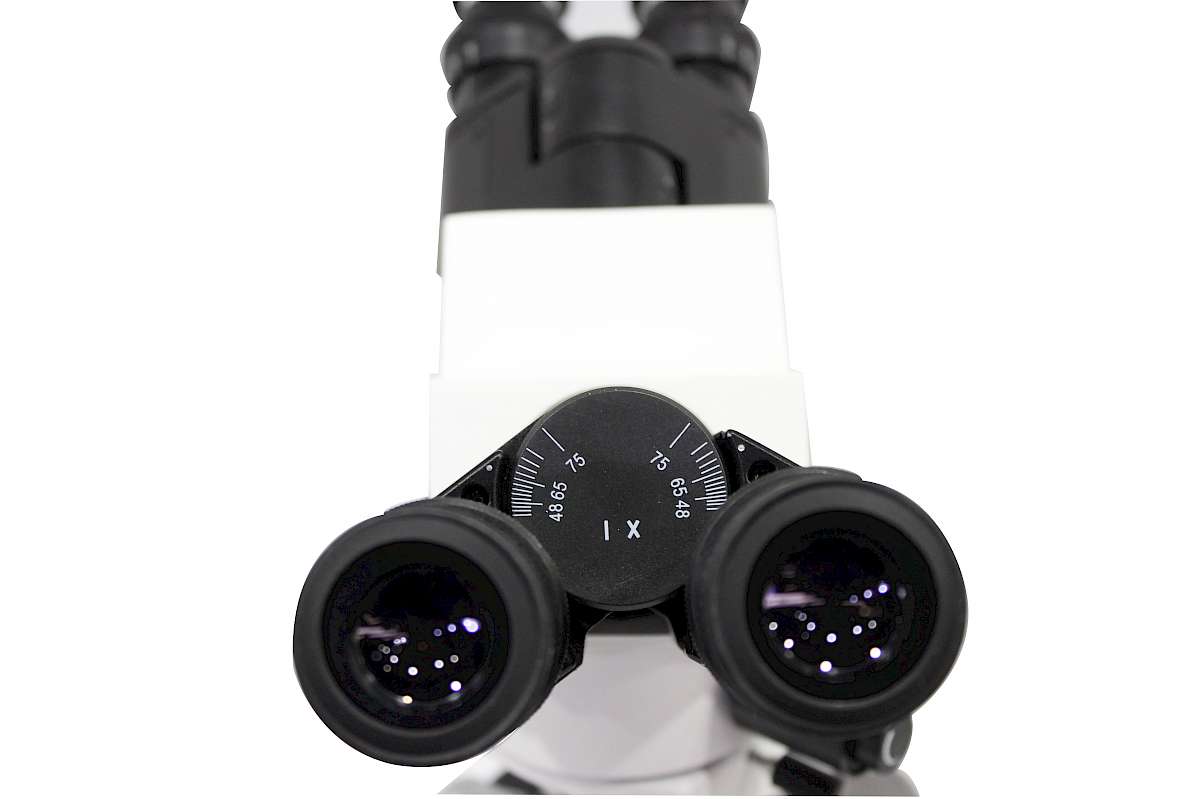

The Binocular of BLM-24 & BLM-24L
The Head of BLM-24 & BLM-24L
LED cursor indicator
LED cursor indicator
LED cursor indicator
Item | LED cursor Indicator |
|---|---|
BLM-24 | No |
BLM-24L | LED Cursor Indicator |
Specification for BLM-24 & BLM-24L | |
|---|---|
Head | Demonstration Binocular |
Interpupillary Distance | 55mm-75mm |
Eyepiece | WF10X/ 22mm |
Objective | Infinite Achromatic Objective 4X、10X、40X(s)、100X(s)Oil |
Stage | Double Mechanical Layer Stage |
Size: 180mm×150mm | |
Moving Range: 75mm×50mm | |
Condenser | N.A.1.25 Abbe Condenser with adjustable iris diaphragm and color filter |
Focusing | Coarse and fine coaxial focusing, fine focusing scale value: 0.002mm |
Illuminator | Halogen Bulb 220V/110V, 6V20W, illuminator adjustable, with Kohler illuminator |
Accessories for BLM-24 & BLM-24L | |
|---|---|
Eyepiece | WF16X, WF20X,P16X |
Objective | PL infinite objective: 4X、10X、20X、40X(s)、60X(s)、100X(s)oil |
Semi-plan infinite objective: 4X、 10X、20X、40X(s)、60X(s)、100X(s)oil | |
Photography Device & CCD Interface | 0.5X、0.57X、0.75X |
Head | Articulated Binocular (48mm-75mm) |
