BL-160A & BL-160B Binocular / Trinocular Biological Microscope with Optional Observation Units
40X~1000X, collector with field diaphragm, plan achromatic objectives, biological medicine agriculture & industry
Features
- With wide field eyepieces and plan achromatic objectives, the field of view is wide and clear
- Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing: 2μm
- Using Kohler illumination with 6V 20W halogen lamp with brightness control
Tags: Compound MicroscopesBiological Microscopes
Request a Quote?
Get Quote Live chat Email Phone
BL-160A & BL-160B Biological microscope are equipped with plan achromatic objectives and wide field eyepieces. It provides clear image, wide field, convenient operation. It can be widely used for biology medicine agriculture and industry area. It is the ideal instrument in medical treatment, teaching demonstration and scientific research.
The illumination system with 6V 20W Halogen lamp (brightness adjustable) can provide clear and bright image for light field observation, but also for dark field observation and phase contract observation. If you want to upgrade the optics function and increase the system agility, you choose to use the infinity corrected optics system. By adding the appurtenance of phase contract unit, dark field unit, camera observation unit and facility polarizer unit, it can spread to manifold modes for observation that satisfy the need to different research work.

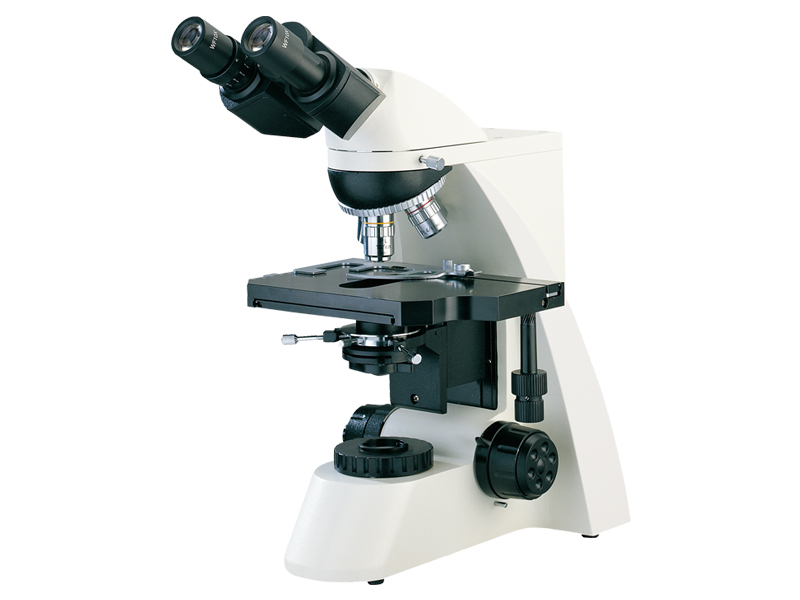

BL-160A & BL-160B
Base and Head of BL-160A & BL-160B
Digital Camera Photo
Polarized Observe
Bright Type Observe
Phase Observe
Diagram of BL-160A & BL-160B
Dimension of BL-160A & BL-160B
Item | Objective | Nosepiece |
|---|---|---|
BL-160A | Plan Achromatic PL4X/0.10 Plan Achromatic PL10X/0.25 Plan Achromatic PL40X/0.65(S) Plan Achromatic PL100X/1.25(s,oil) | Quatruple (Backward ball bearing inner locating) |
BL-160B | Plan Achromatic PL4X/0.10 Plan Achromatic PL10X/0.25 Plan Achromatic PL20X/0.40 Plan Achromatic PL40X/0.65(S) Plan Achromatic PL100X/1.25(s,oil) | Quintuple (Backward ball bearing inner locating) |
Specification for BL-160A & BL-160B | |
|---|---|
Eyepiece | WF10X(Φ20mm) |
Eyepiece Tube | Binocular (inclined 30°) |
Focus System | Coaxial coarse/fine focusing, with tension adjustable and up stop, minimum division of fine focusing: 2μm |
Stage | Double Layer Mechanical Stage (Size: 210mm x 140mm, Move range: 75mm x 50mm) |
Condenser | ABBE Condenser N.A. 1.25 Rack & pinion adjustable |
Filter | Blue, Frosted |
Collector | For Halogen lamp |
Light Source | 6V 20W Halogen lamp with brightness control |
Accessories for BL-160A & BL-160B | ||
|---|---|---|
Eyepiece | WF 16X(Φ11mm) Dividing 10X(μ20mm), 0.1mm/Div | |
Eyepiece tube | Trinocular (inclined 30°) | |
Condenser | Dark Field | Dry type |
Immersion type | ||
Filter | Green, Yellow | |
Phase Contrast Unit | Eyepiece | Centering Telescope |
Objective | Phase contrast plan achromatic 10X/0.25 PHP | |
Phase contrast plan achromatic 20X/0.40 PHP(Spring) | ||
Phase contrast plan achromatic 40X/0.65 PHP(Spring) | ||
Phase contrast plan achromatic 100X/1.25 PHP(Spring, oil) | ||
(PH-Ⅰ) Turnplate phase contrast condenser | ||
(PH-Ⅱ) Turnplate phase contrast condenser | ||
Flashboard phase contrast condenser | ||
Pull board phase contrast condenser | ||
Infinity optical system | Eyepiece tube | Binocular(inclined 30°) |
Trinocular(inclined 30°) | ||
Eyepiece | Centering telescope | |
Objectives | Infinity Plan Achromatic 4X/0.10 | |
Infinity Plan Achromatic 10X/0.25 | ||
Infinity Plan Achromatic 20X/0.40 | ||
Infinity Plan Achromatic 40X/0.65(S) | ||
Infinity Plan Achromatic 100X/1.25(S,Oil) | ||
Infinity Phase contrast plan achromatic 10X/0.25 PHP | ||
Infinity Phase contrast plan achromatic 20X/0.40 PHP | ||
Infinity Phase contrast plan achromatic 40X/0.65 PHP(Spring) | ||
Infinity Phase contrast plan achromatic 100X/1.25 PHP(Spring, oil) | ||
CCD Adapter | 0.4X | |
0.5X | ||
1X | ||
0.5X (with dividing 0.1mm/Div) | ||
Camera | DV-1 (with USB & video output) | |
DV-2 With USB output | ||
DV-3 With video output | ||
Photo Unit | 2.5X/4X Change over photograph attachment with 10X viewing eyepiece | |
4X Focusing photograph attachment | ||
MD adapter | ||
PK adapter | ||
Digital camera adapter | Digital camera adapter (A610, A620, A630, A640) | |
Facility polarize | Polarizer | 360° rotatable stage |
Analyzer | ||
