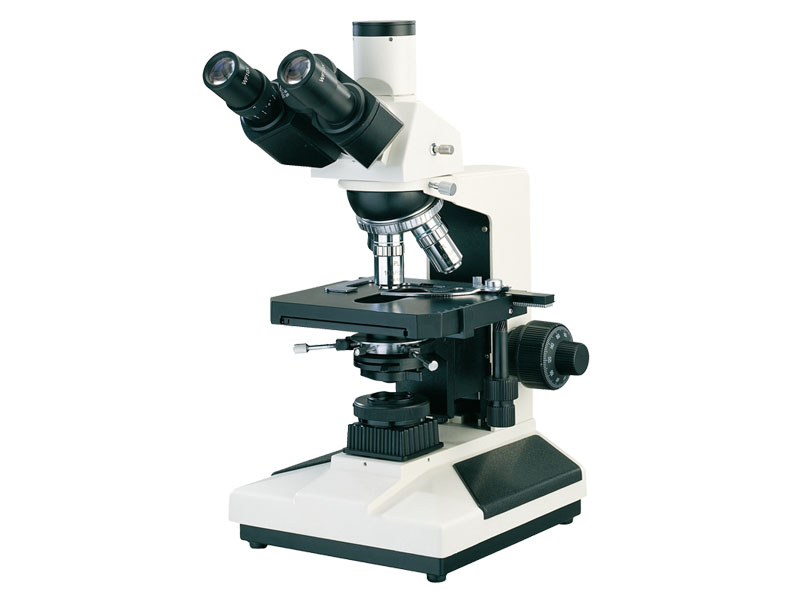

BL-161A & BL-161B Binocular / Trinocular Biological Microscope with Collector & Condenser

BL-161A

Plan Achromatic PL4X/0.10

Plan Achromatic PL10X/0.25

Plan Achromatic PL40X/0.65(S)

Plan Achromatic PL100X/1.25(s,oil)

Quatruple (Backward ball bearing inner locating)

BL-161B

Plan Achromatic PL4X/0.10

Plan Achromatic PL10X/0.25

Plan Achromatic PL20X/0.40

Plan Achromatic PL40X/0.65(S)

Plan Achromatic PL100X/1.25(s,oil)

Quintuple (Backward ball bearing inner locating)

Eyepiece

WF10X(Φ20mm)

Eyepiece Tube

Binocular (inclined 30°)

Focus System

Coaxial coarse/fine focusing, with tension adjustable and up stop, minimum division of fine focusing: 2μm

Stage

Double Layer Mechanical Stage (Size: 160mm x 140mm, Move range: 75mm x 50mm)

Condenser

ABBE Condenser N.A. 1.25 Rack & pinion adjustable

Filter

Blue, Frosted

Collector

For Halogen lamp

Light Source

6V 20W Halogen lamp with brightness control

Eyepiece

WF 16X(Φ11mm)

Dividing 10X(μ20mm), 0.1mm/Div

Eyepiece tube

Trinocular (inclined 30°)

Condenser

Dark Field

Dry type

Immersion type

Filter

Green, Yellow

Phase Contrast Unit

Eyepiece

Centering Telescope

Objective

Phase contrast plan achromatic 10X/0.25 PHP

Phase contrast plan achromatic 20X/0.40 PHP(Spring)

Phase contrast plan achromatic 40X/0.65 PHP(Spring)

Phase contrast plan achromatic 100X/1.25 PHP(Spring, oil)

(PH-Ⅰ) Turnplate phase contrast condenser

(PH-Ⅱ) Turnplate phase contrast condenser

Flashboard phase contrast condenser

Pull board phase contrast condenser

Infinity optical system

Eyepiece tube

Binocular(inclined 30°)

Trinocular(inclined 30°)

Eyepiece

Centering telescope

Objectives

Infinity Plan Achromatic 4X/0.10

Infinity Plan Achromatic 10X/0.25

Infinity Plan Achromatic 20X/0.40

Infinity Plan Achromatic 40X/0.65(S)

Infinity Plan Achromatic 100X/1.25(S,Oil)

Infinity Phase contrast plan achromatic 10X/0.25 PHP

Infinity Phase contrast plan achromatic 20X/0.40 PHP

Infinity Phase contrast plan achromatic 40X/0.65 PHP(Spring)

Infinity Phase contrast plan achromatic 100X/1.25 PHP(Spring, oil)

CCD Adapter

0.4X

0.5X

1X

0.5X (with dividing 0.1mm/Div)

Camera

DV-1 (with USB & video output)

DV-2 With USB output

DV-3 With video output

Photograph Unit

2.5X/4X Change over photograph attachment with 10X viewing eyepiece

4X Focusing photograph attachment

MD adapter

PK adapter

Digital camera adapter

CANON Digital camera adapter (A610, A620, A630, A640)

Facility polarize

Polarizer

360° rotatable stage

Analyzer
