BL-64A & BL-64B 1000X Biological Microscope with Semi-Plan Achromatic/ Achromatic Objectives

BL-64A

Achromatic4X/0.10

Achromatic 10X/0.25

Achromatic 40X/0.65(S)

Achromatic 100X/1.25(S,oil)

BL-64B

Semi-Plan Achromatic 4X/0.10

Semi-Plan Achromatic 10X/0.25

Semi-Plan Achromatic 40X/0.65(S)

Semi-Plan Achromatic PL100X/1.25(S,oil)

Eyepiece

WF10X(Φ18mm)

Eyepiece Tube

Binocular (inclined 30°)

Focus System

Coaxial coarse/fine focusing, with tension adjustable and up stop, minimum division of fine focusing: 2μm

Nosepiece

Quadruple (Backward ball bearing inner locating)

Stage

Double Layer Mechanical Stage (Size: 160mm x 140mm, Move range: 75mm x 50mm)

Condenser

ABBE Condenser N.A. 1.25 Rack & pinion adjustable

Filter

Blue, Frosted

Collector

For Halogen lamp

Light Source

6V 20W Halogen lamp with brightness control

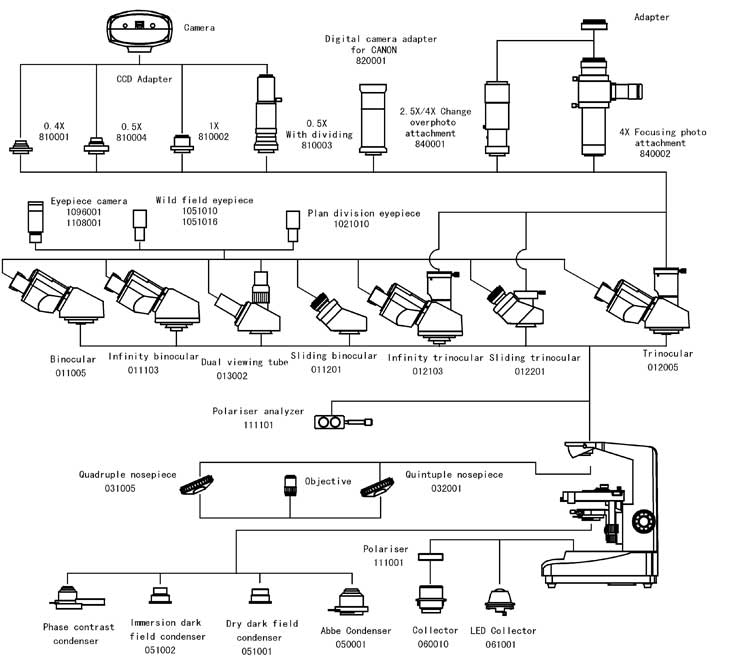

Eyepiece

WF 16X(Φ11mm)

Dividing 10X(Φ18mm), 0.1mm/Div

Objective

Plan achromatic 4X/0.10

Plan achromatic 5X/0.12

Plan achromatic 10X/0.25

Plan achromatic 20X/0.40

Plan achromatic 40X/0.65(S)

Plan achromatic 60X/0.85(S)

Plan achromatic 100X/1.25(S,Oil)

Eyepiece tube

Binocular, Sliding(Inclined 45˚)

Trinocular, Sliding(Inclined 45˚)

Trinocular (Inclined 30˚)

Dual viewing tube (Inclined 30˚)

Nosepiece

Quintuple(Backward ball bearing inner locating)

Condenser

Dark Field

Dry type

Immersion type

Filter

Green, Yellow

Light Source

LED Collector

Bright and white light

Phase Contrast Unit

Eyepiece

Centering Telescope

Objective

Phase contrast plan achromatic 10X/0.25 PHP

Phase contrast plan achromatic 20X/0.40 PHP

Phase contrast plan achromatic 40X/0.65 PHP(Spring)

Phase contrast plan achromatic 100X/1.25 PHP(Spring, oil)

(PH-Ⅰ) Turnplate phase contrast condenser

(PH-Ⅱ) Turnplate phase contrast condenser

Flashboard phase contrast condenser

Pull board phase contrast condenser

Infinity optical system

Eyepiece tube

Binocular(inclined 30°)

Trinocular(inclined 30°)

Eyepiece

Centering telescope

Objectives

Infinity Plan Achromatic 4X/0.10

Infinity Plan Achromatic 10X/0.25

Infinity Plan Achromatic 20X/0.40

Infinity Plan Achromatic 40X/0.65(S)

Infinity Plan Achromatic 100X/1.25(S,Oil)

Infinity Phase contrast plan achromatic 10X/0.25 PHP

Infinity Phase contrast plan achromatic 20X/0.40 PHP

Infinity Phase contrast plan achromatic 40X/0.65 PHP(Spring)

Infinity Phase contrast plan achromatic 100X/1.25 PHP(Spring, oil)

CCD Adapter

0.4X

0.5X

1X

0.5X (with dividing 0.1mm/Div)

Camera

DV-1 (with USB & video output)

DV-2 With USB output

DV-3 With video output

Photography

USB Output

Video Output

Digital camera adapter

CANON Digital camera adapter (A610, A620, A630, A640)

Photo Unit

2.5X/4X Change over photograph attachment with 10X viewing eyepiece

4X Focusing photograph attachment

MD adapter

PK adapter

Facility polarize

Polarizer

360° rotatable stage

Analyzer

Adapter

Input: 230V¡«50/60HZ Output: 9V 500mA

Input: 110V¡«50/60HZ Output: 9V 500mA
