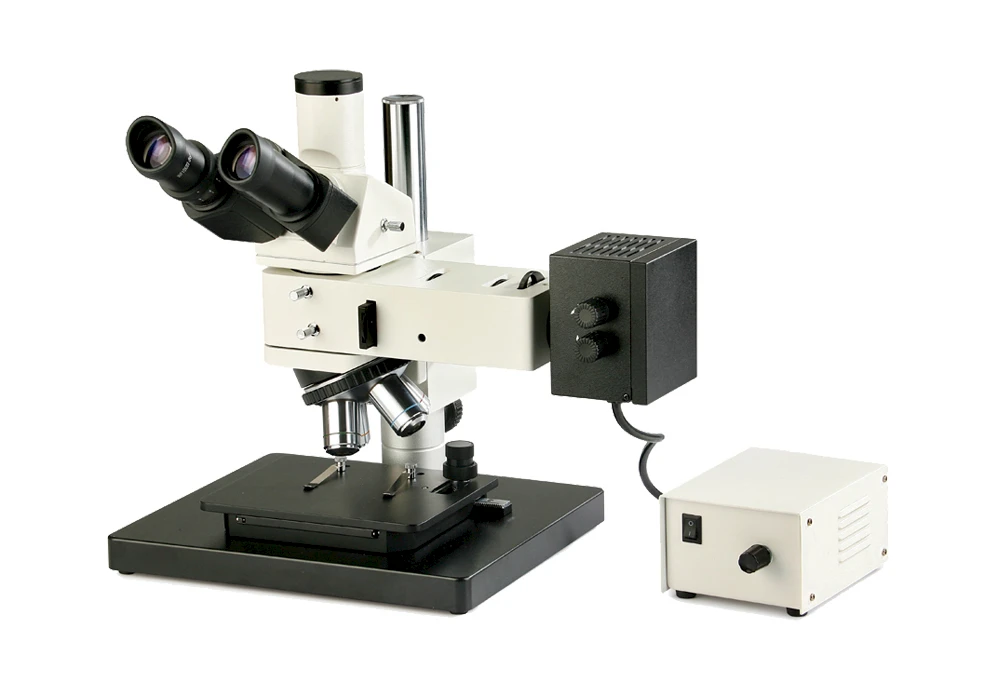

VM5000 Series Industrial Inspection & Measurement Metallurgical Microscope with UIS optical system

VM5000 / VM5000BD

160x140mm Mechanical Stage, Epi-illumination system with 6V30W / 12V50W Halogen lamp

Features


  • Adopted excellent UIS optical system and modularization function design
  • With wide field eyepieces and infinity plan achromatic objectives, the field of view is wide and clear
  • Coaxial coarse/fine focus system, with coarse focus knob tension adjustable device, minimum division of fine focusing: 2μm

Tags: Compound MicroscopesMetallurgical Microscopes

Request a Quote?


Get Quote Live chat Email Phone

Halogen
6V30W / 12V50W
Stage
185 x 140mm
Base
300mm x 240mm
WF10X(Φ22mm)
inclined 30°

VM5000 Series Industry checking and measure microscopes are suitable to observe surfaces structure and geometry of workpiece. It is equipped excellent UIS optical system and modularization function design so that update system expediently and achieved polarization, dark field observation. Lift or down the optical and illumination unit along the leader to adjust the distance from stage to objective, so that enable using for different thickness workpiece. Quickly and effectively locate the observation part of workpiece by moving the mechanical stage. The motion of the focusing is roll that the roller bearing moved guiding the trigon slideway, so that the moving process is smooth. This is ideal optical instrument for checking and measure in the field of precision part, integrated circuit, packing material etc.

The trinocular can easily change in the observation and photography, inclined 30°. Based on the 100& pass of light of trinocular, the microscope adapt to low illumination of photography. The field of plan objective can achieve Φ22mm, which let you have more wide and comfortable of observation.

Adopted Epi-illumination system, integrated field diaphragm, aperture diaphragm and (Y,B,G, Ground glass) switching device. Push-pull analyzer and polarizer.

Equip high quality bright and dark field objectives and dark field illumination device. Avoid the stray light of illumination system and improve the image quality in the dark field.

By adding the appurtenance shch as CCD adapter digital camera adapter and single-reverse digital camera adapter and etc. It can achieve high clear observation mode of camera and vidicon.

VM5000 & VM5000BD

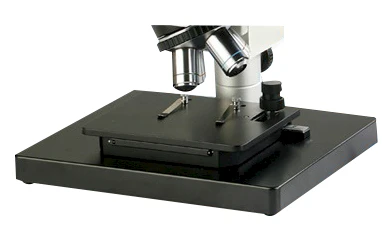

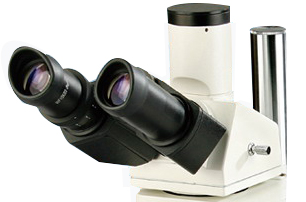

Head of VM5000 / VM5000BDStage of VM5000 / VM5000BD

Head & Working Stage of VM5000 & VM5000BD

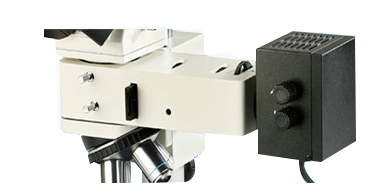

Epi-illumination system of VM5000 / VM5000BD

Epi-illumination of VM5000 & VM5000BD

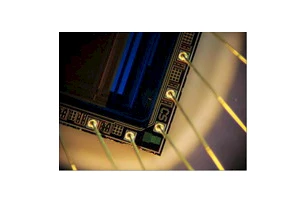

Digital Camera Photography

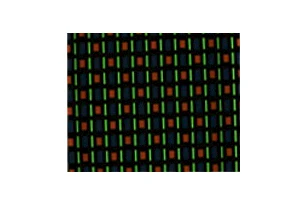

Dark Type Observe

Dark Type Observe

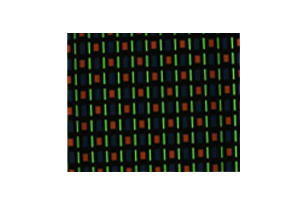

Bright Typr Observe

Bright Type Observe

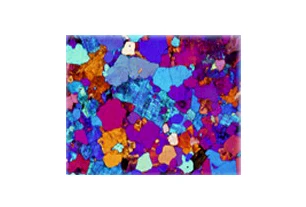

Polarized Observe

Polarized Observe

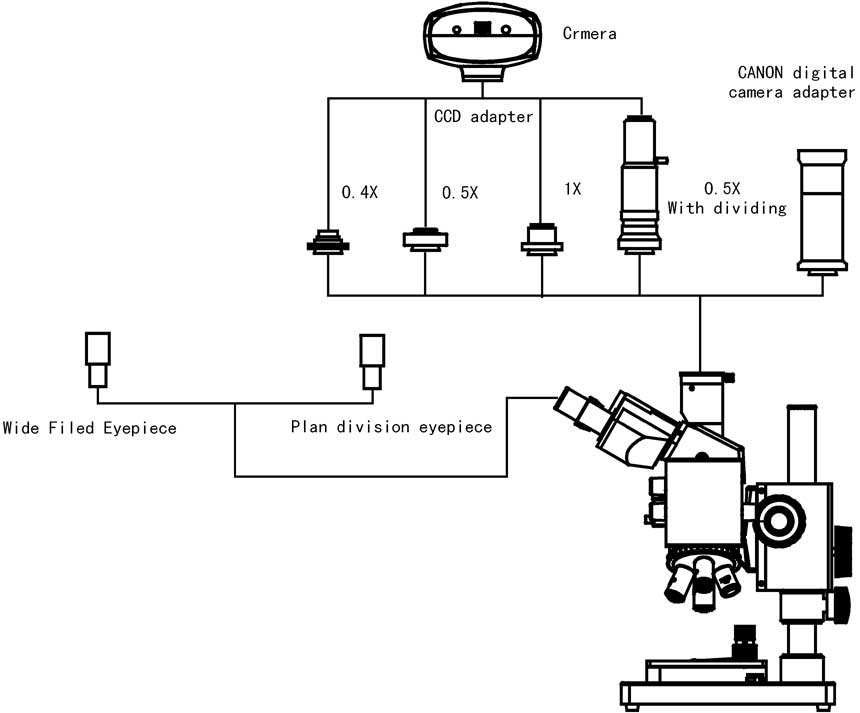

Diagram ofVM5000 & VM5000BD

Diagram of VM5000 & VM5000BD

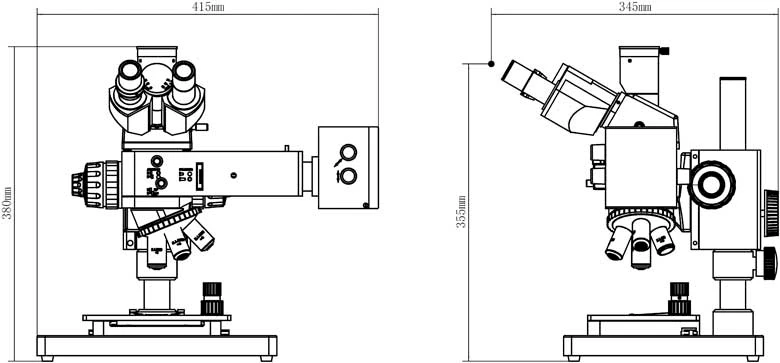

Dimension of VM5000 & VM5000BD

Dimension of VM5000 & VM5000BD

Specification for VM5000 Series

Eyepiece

WF10X(Φ22mm)

Eyepiece Tube

Trinocular, inclined 30°, can be shot in 100% light flux

Infinity plan achromatic objective

VM5000(equipped with bright field objectives)

PL L5X/0.12 (Work distance)26.1 mm

PL L10X/0.25 (Work distance)20.2 mm

PL L20X/0.40 (Work distance)8.80 mm

PL L50X/0.70 (Work distance)3.68 mm

VM5000BD(equipped with bright & dark field objectives)

PL L5X/0.12 BD (Work distance)8.05 mm

PL L10X/0.25 BD (Work distance)7.86mm

PL L20X/0.40 BD (Work distance)7.23mm

PL L50X/0.70 BD (Work distance)1.75mm

Epi-illumination system

VM5000

6V30W halogen and brightness enable control

VM5000BD

12V50W halogen and brightness enable control

Integrated field diaphragm, aperture diaphragm and (Y, B, G, ground glass) switching device. Push-pull type analyzer and polarizer.

Focus System

Coaxial coarse/fine focus system, with coarse focus knob tension adjustable device minimum division of fine focusing is 2μm

Nosepiece

Quintuple (Backward ball bearing inner locating)

Working Stage

Base Size: 300mm x 240mm

Mechanical stage size: 185 x 140mm, moving stage: Transersal :35mm£¬Longitudinal:30mm

Accessories for VM5000 Series

Eyepiece

WF 10X (Φ22mm)

Objective

VM5000

PL L40X/0.60 (Work distance)3.98 mm

PL L60X/0.70 (Work distance)2.08mm

PL L80X/0.80 (Work distance)1.25 mm

PL L100X/0.85 (Work distance)0.40 mm

VM5000BD

PL L40X/0.60 BD (Work distance)3.00 mm

PL L60X/0.7 BD (Work distance)1.65mm

PL L80X/0.80 BD (Work distance)0.80mm

PL L100X/0.85 BD (Work distance)0.4 mm

CCD Adapter

0.4X

0.5X

1X

0.5X (with dividing 0.1mm/Div)

Camera

DV-130

DV-300

DV-500

Digital camera adapter

CANON (EF) NIKON(F)
