VM4000 Series Trinocular Transmitted & Epi-illumination System Metallurgical Microscope


50X~600X, Integrated Polarized Observation Device


  • Adopted excellent Infinity optical system and modularization function design, equipped with excellent optical performance
  • With plan achromatic objectives and wide-field eyepieces, can get clear pictures and wide view field
  • Coaxial coarse/fine focus system, with tension adjustable device, minimum division of fine focusing: 2.0μm
  • Trinocular, can switch to normally / polarize observation, bright field / dark field observation

Tags: Compound MicroscopesMetallurgical Microscopes

Request a Quote?

Get Quote Live chat Email Phone

210 x 140mm
Trinocular, inclined 30°
Halogen lamp

VM4000 Series upriht metallurgical microscopes are suitable to observe surface of opaque object or transparent object. They are equipped with excellent UIS optical system and modularization function design so that provited excellent optical quilatity and operation performance, update system expediently and provided observation in reflected or transmitted and mixed illumination, polarizing observation, dark field observation. These instruments have beautiful sculpt, convenient control and clear image. They are the ideal instrument in research work in biology, metallography, mineralogy, precision engineering, electronics, ect.

Double layer mechanical stage, size of 210mm x 140mm, move range: 63mm x 50mm. The design is in reason so that the operator feel easy and comfort.

Collector for halogen lamp illumination and integrated field diaphragm it can provide clear and bright image. Abbe condenser NA.1.25 rack & pinion adjustable.

Equip high quality bright and dark field objectives and dark field illumination device. Avoid the stray light of illumination system anf improve the image quality in the dark field.

By adding the appurtenance such as CCD adapter, digital camera adapter and single-reverse digital camera adapter and etc. It can achieve high clear observation mode of camera and vidicon.





Head of VM4000 SeriesTransmitted illumination system of VM4000 Series

Head & Transmitted illumination system of VM4000 Series

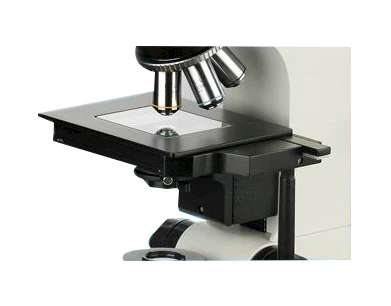

Epi-illumination System of VM4000 SeriesMechanical Stage of VM4000 Series

Epi-illumination System & Mechanical Stage of VM4000 Series

Digital Camera Photo

Dark Type Observe

Dark Type Observe

Bright Type Observe

Bright Type Observe

Polarized Observe

Polarized Observe

Diagram of VM4000 Series

Diagram of VM4000 Series

Dimension of VM4000 Series

Specification for VM4000 Series


WF10X(Φ22mm), the eyepiece interface isΦ30mm

Eyepiece Tube

Trinocular, inclined 30°,interpupillary distance: 53~75mm

Infinity plan achromatic objective

VM4000/ VM4000B(equipped with bright field objectives)

PL L5X/0.12 (Work distance)26.1 mm

PL L10X/0.25 (Work distance)20.2 mm

PL L40X/0.60 (Work distance)3.98 mm

PL L60X/0.70 (Work distance)2.08 mm

VM4000BD(equipped with bright / dark field objectives)

PL L5X/0.12 BD (Work distance)8.05 mm

PL L10X/0.25 BD (Work distance)7.86mm

PL L20X/0.40 BD (Work distance)7.20mm

PL L40X/0.60 BD (Work distance)3.00mm

Illumination system

VM4000/ VM4000B

6V30W halogen and brightness enable control


12V30W halogen and brightness enable control for transmission illumination.

12V50W halogen and brightness enable control for reflecting illumination

Integrated field diaphragm, aperture diaphragm and puller type polarizer

Equipped with ground glass and yellow,green and bule filters

Focus System

Coaxial coarse/fine focus system, with tension adjustable device, minimum division of fine focusing is 2.0μm


Quintuple (Backward ball bearing inner locating)

Working Stage

Mechanical stage size: 210 x 140mm, moving stage: 63 x 50mm

Accessories for VM4000 Series


Dividing eyepiece 10X (Φ22mm)



Bright field objective 20X50X80X100X(Dry)


Bright&dark field objective 50X60X80X100X

CCD Adapter



0.5X (with dividing 0.1mm/Div)


USB Output 1.3M3.0M5.0M10M pixel

Digital camera adapter
