VM4600M Trinocular Upright Large-Mobile Mechanical Stage Metallurgical Microscope with Kohler Illuminatior
50X~800X, 250 x 230mm large-mobile mechanical stage (280 x 270mm opyional)
Features
- With plan achromatic objectives with long working distance (no cover glass) and wide-field eyepieces, can get clear pictures and wide view field.
- With large move range mechanical stages, can move quickly and slowly
- Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing: 0.7μm
- The body shape “T” structure makes the instrument more steady and more space to operate
Tags: Compound MicroscopesMetallurgical Microscopes
Request a Quote?
Get Quote Live chat Email Phone
12V 30W
VM4600M Reflected Metallurgical microscope is suitable to observe the microscopical surfaces of non-transparent object. It is equipped with large move range mechanical stages, reflected vertical illumination and set polarizer device in trinocular. It has clear and high-contrast picture beautiful sculpt, convenient control and etc. It is the ideal instrument in research work in metallography, mineralogy, precision engineering, electronics and etc. It is suitable for scientific research, teaching demonstration in the colleges and factories.
The gemel mode trinocular is inclined 30°. Built-in analyzer to switch freely, can be connected to the camera.
The illumination system is utilized 6V 30W halogen lamp (brightness adjustable) can provide clear and bright image for light field observation, but also for polarized light observation. Built-in polarizer, field diaphragm (center adjustable) and iris diaphragm, can get the polarized light observation. It can control the field range effectively and adjust the phase contract of the field.
Flashboard filter unit with yellow, green and blue filter and ground glass provides illumination with different chroma for observation of different samples.
By adding the appurtenance such as CCD adapter, digital camera adapter and single-reverse digital camera adapter etc. It can achieve high clear observation mode of camera and vidicon.

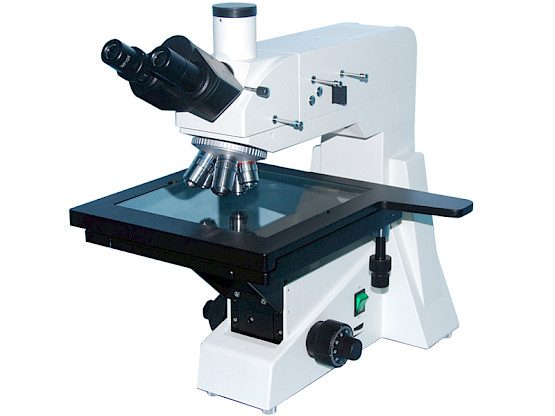

VM4600M
Head & Mechanical Stage of VM4600M
Reflected illumination System & Optics Body of VM4600M
Digital Camera Photo
Bright Type Observe
Bright Type Observe
Polarized Observe
Diagram of VM4600M
Dimension of VM4600M
Specification for VM4600M | ||
|---|---|---|
Eyepiece | WF 10X (Φ18mm) | |
Eyepiece Tube | Trinocular, inclined 30°, analyzer with field diaphragm to switch | |
Objective | Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12 | |
Plan achromatic objectives with long working distance (no cover glass) PL L10X/0.25 | ||
Plan achromatic objectives with long working distance (no cover glass) PL L20X/0.40 | ||
Plan achromatic objectives with long working distance (no cover glass) PL L40X/0.60 | ||
Plan achromatic objectives with long working distance (no cover glass) PL L80X/0.80 | ||
Focus System | Stage adjustable, Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing is 0.7μm | |
Nosepiece | Quintuple (Frontward ball bearing inner locating) | |
Working Stage | Three Layer Mechanical stage size: 250 x 230mm, moving stage: 154 x 154mm | Three Layer Mechanical stage size: 280 x 270mm, moving stage: 204 x 204mm |
Vertical illumination unit | 12V 30w halogen lamp, brightness control. | |
Vertical illumination with field diaphragm, aperture diaphragm and polarizer,(Y,B,G)filter and frosted filter | ||
Accessories for VM4600M | |
|---|---|
Eyepiece | WF 16X(Φ11mm) |
Dividing 10X(Φ18mm) 0.1mm/Div | |
Objective | Plan achromatic objectives with long working distance (no cover glass) PL L 50X/0.70 |
Plan achromatic objectives with long working distance (no cover glass) PL L 60X/0.75 (Spring) | |
Plan achromatic objectives with long working distance (no cover glass) PL L 100X/0.85 (Spring) | |
Plan achromatic objectives (no cover glass) PL 100X/1.25 (Spring, oil) | |
CCD Adapter | 0.4X |
0.5X | |
1X | |
0.5X (with dividing 0.1mm/Div) | |
Camera | DV-1 (with USB & Video Output) |
DV-2 (with USB Output) | |
DV-3 (with Video Output) | |
Photo Unit | 2.5X/4X Change over photograph attachment with 10X viewing eyepiece |
4X Focusing photograph attachment | |
MD Adapter | |
PK Adapter | |
Digital camera adapter | CANON (A610, A620, A630, A640) |
