VM2000I Series 100X-1000X Trinocular Inverted Industrial Lab School Metallurgical Microscope with two light paths output
180 x 150mm double layer mechanical stage, quadruple or quintuple nosepiece
Features
- With plan achromatic objectives with long working distance (no cover glass) and wide-field eyepieces, can get clear pictures and wide view field.
- Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing: 2μm.
- 6V 20W halogen lamp, brightness control.
- Trinocular is compensation, can switch to observe normally or to observe the Polarize, can send 100% of light to top photography port
Tags: Compound MicroscopesMetallurgical Microscopes
Request a Quote?
Get Quote Live chat Email Phone
VM2000I Series Inverted Metallurgical Microscope are used for identification and analysis of the structures in different metals and alloys. They are the important instruments for researching metallography in metal physics. The instruments can select special photography device to take euploid pictures of atlas metallograph. The instruments are suitable for scientific research, colleges and factory.
The circular chromeplate substage is located in the center of mechanical stage so that enable rotate the specimen in the polarization observation.
Integrated illumination can make up the difference of halogens by adjusting the spacial position. The illumination mode is “Kohler illumination ” and the adjustment of field and aperture diaphragm is achieved by turning the control plate, by adding the flashboard polarizer can be rotated from 0°~ 90°. The adjustment mode is smooth and comfort.
By adding the appurtenance such as CCD adapter, digital camera adapter and single-reverse digital camera adapter etc. They can achieve high clear observation mode of camera and vidicon.

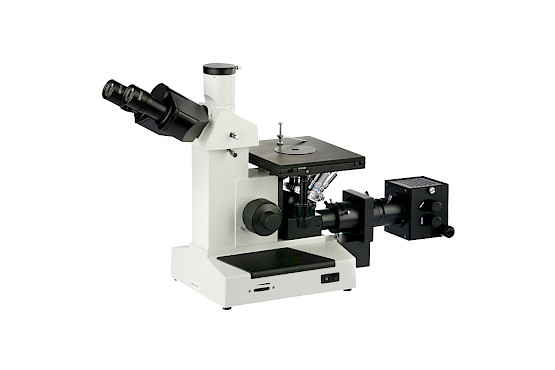

VM2000I
Head & Mechanical Stage of VM2000I
Illumination System of VM2000I
Digital Camera Photo
Polarized Observe

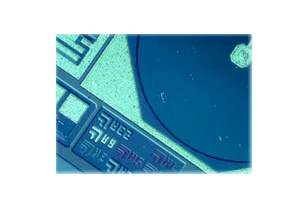

Bright Type Observe
Bright Type Observe
Diagram of VM2000I
Dimension of VM2000I
Specification for VM2000I Sereis | ||
|---|---|---|
Eyepiece | WF 10X (Φ18mm) | |
Eyepiece Tube | Trinocular, inclined 30° | |
Objective | VM2000IA | VM2000IB |
Plan achromatic objectives with long working distance (no cover glass) PL 10X/0.25 | Achromatic objectives(no cover glass) 10X/0.25 | |
Plan achromatic objectives with long working distance (no cover glass) PL L20X/0.40 | Achromatic objectives(no cover glass) 20X/0.40 | |
Plan achromatic objectives with long working distance (no cover glass) PL L40X/0.60 | Achromatic objectives(no cover glass) SP 40X/0.65 | |
Plan achromatic objectives with long working distance (no cover glass) PL 100X/1.25(Spring, oil) | Achromatic objectives(no cover glass) 100X/1.25(Spring, oil) | |
Focus System | Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing is 2.0μm | |
Nosepiece | Quadruple (Ball bearing inner locating) | |
Working Stage | Double layer mechanical (Size:180mmX150mm,moving range:15mmX15mm) | |
Filter | Blue Filter | |
Green Filter | ||
Yellow Filter | ||
Illumination Unit | 6V 20W Halogen Lamp, brightness control | |
Accessories for VM2000I Series | |
|---|---|
Eyepiece | WF 16X(Φ11mm) |
Dividing 10X(Φ18mm) 0.1mm/Div | |
Eyepiece tube | Binocular, inclined 30° |
Objective | Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12 |
Plan achromatic objectives with long working distance (no cover glass) PL L 60X/0.75 (Spring) | |
Plan achromatic objectives with long working distance (no cover glass) PL L 100X/0.85 (Spring) | |
Achromatic objectives (no cover glass) 60X/0.85 | |
Nosepiece | Quintuple (Ball bearing inner locating) |
Simple polarizing unit | Polarizer |
Polarization Analyzer | |
CCD Adapter | 0.4X |
0.5X | |
1X | |
0.5X (with dividing 0.1mm/Div) | |
Camera | DV-1 (with USB & Video Output) |
DV-2 (with USB Output) | |
DV-3 (with Video Output) | |
Photo Unit | 2.5X/4X Change over photograph attachment with 10X viewing eyepiece |
4X Focusing photograph attachment | |
MD Adapter | |
PK Adapter | |
Digital camera adapter | CANON (A610, A620, A630, A640) |
