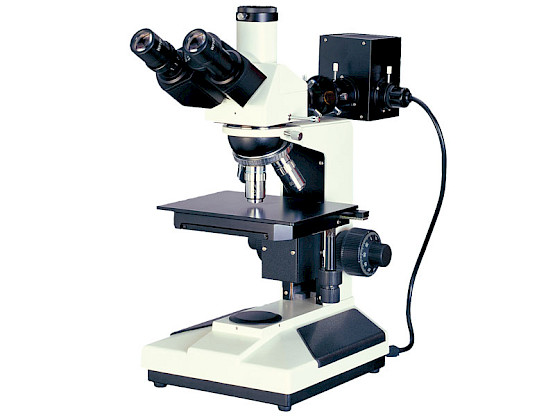

VM2200M Series Upright Industrial School Research Metallurgical Microscope with Epi-illumination

VM2200M Series

50X-600X, Trinocular, 185mm x 140mm stage

Features


  • With plan achromatic objectives with long working distance (no cover glass) and wide-field eyepieces, can get clear pictures and wide view field.
  • Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing: 2μm.
  • 6V 20W halogen lamp, brightness control.
  • Trinocular, can switch to observe normally or to observe the polarize, can send 100% of light to the binocular eyepieces or to the top port

Tags: Compound MicroscopesMetallurgical Microscopes

Request a Quote?


Get Quote Live chat Email Phone

WF 10X (Φ18mm)
Inclined 30°
Quadruple / Quintuple
6V 20W Halogen

VM2200M Series Reflected Metallurgical Microscopes are suitable to observe the surfaces of non-transparent object. They are equipped with vertical illuminator, plan achromatic objectives with long working distance (no cover glass), wide-field eyepieces and set polarizer device in trinocular. They provide clear and high-contrast picture, convenient operation etc. They are the ideal instruments for research work in metallography, mineralogy, precision engineering, electronics etc. They are suitable for scientific research, teaching demonstration in the colleges and factory.

Trinocular, single diopter adjustment, inclined 30° and integrated analyzer, it can be connected to the camera.

Integrated field, aperture diaphragm and (Y, B, G, Ground glass) switching device. Puller polarizer can be circumrotated for 90°

By adding the appurtenance such as CCD adapter, digital camera adapter and single-reverse digital camera adapter etc. They can achieve high clear observation mode of camera and vidicon

VM2200M Series

VM2200M Series

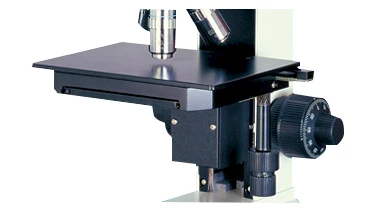

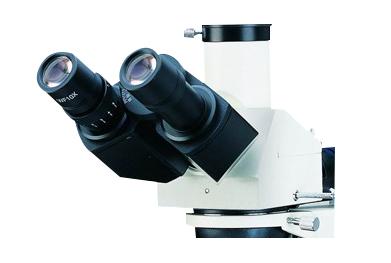

Head of VM2200M SeriesMechanical Stage of VM2200M Series

Head & Mechanical Stage of VM2200M Series

Epi-illumination System of VM2200M Series

Epi-illumination System of VM2200M Series

Diagram of VM2200M Series

Diagram of VM2200M Series

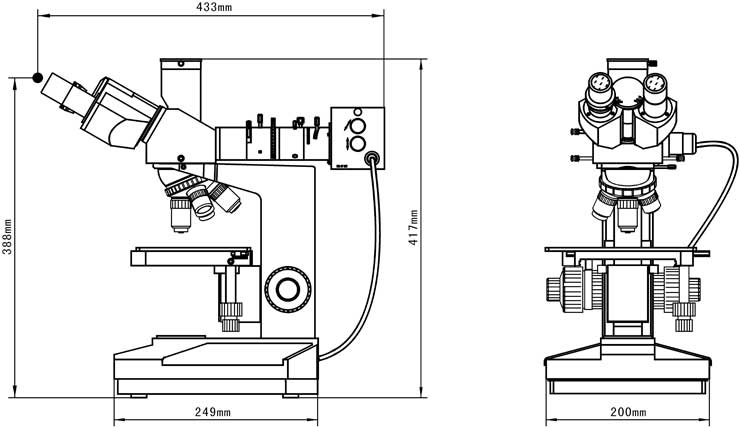

Dimension of VM2200M Series

Specification for VM2200M Sereis

Eyepiece

WF 10X (Φ18mm)

Eyepiece Tube

Trinocular, inclined 30°, Analyzer with field diaphragm to switch

Objective

VM2200MA

VM2200MB

Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12

Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12

Plan achromatic objectives with long working distance (no cover glass) PL L10X/0.25

Plan achromatic objectives with long working distance (no cover glass) PL L10X/0.25

Plan achromatic objectives with long working distance (no cover glass) PL L40X/0.60

Plan achromatic objectives with long working distance (no cover glass) PL L20X/0.40

Plan achromatic objectives with long working distance (no cover glass) PL L60X/0.75 (Spring)

Plan achromatic objectives with long working distance (no cover glass) PL L40X/0.60

Plan achromatic objectives with long working distance (no cover glass) PL L60X/0.75(Spring )

Focus System

Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing is 2.0μm

Nosepiece

Quadruple (Backward Ball bearing inner locating)

Quintuple (Backward Ball bearing inner locating)

Working Stage

Double layer mechanical (Size:185mmX140mm,moving range:75mmX50mm)

Vertical Illumination Unit

6V 20W Halogen Lamp, adjustable control

Vertical illumination With field diaphragm ,aperture diaphragm and polarizer, (Y, B, G) filter and frosted filter

Accessories for VM2200M Series

Eyepiece

WF 16X(Φ11mm)

Dividing 10X(Φ18mm) 0.1mm/Div

Objective

Plan achromatic objectives with long working distance (no cover glass) PL L50X/0.70

Plan achromatic objectives with long working distance (no cover glass) PL L80X/0.80

Plan achromatic objectives with long working distance (no cover glass) PL L100X/0.85 (Spring)

Plan achromatic objectives (no cover glass) PL 100X/1.25 (Spring, Oil)

CCD Adapter

0.4X

0.5X

1X

0.5X (with dividing 0.1mm/Div)

Camera

DV-1 (with USB & Video Output)

DV-2 (with USB Output)

DV-3 (with Video Output)

Photo Unit

2.5X/4X Change over photograph attachment with 10X viewing eyepiece

4X Focusing photograph attachment

MD Adapter

PK Adapter

Digital camera adapter

CANON (A610, A620, A630, A640)
