VM2300M Series 50X-600X Trinocular Vertical Illumination System Metallurgical Microscope
160mm x 140mm stage, industrial and mining research, teaching demonstration
Features
- With plan achromatic objectives with long working distance (no cover glass) and wide-field eyepieces, can get clear pictures and wide view field
- Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing: 2μm
- Utilize reflected & transmitted light mix illumination; you can descry the special effect in some object
- 6V 20W halogen lamp, brightness control
- Trinocular, can switch to observe normally or to observe the polarize, can send 100% of light to the binocular eyepieces or to the top port
Tags: Compound MicroscopesMetallurgical Microscopes
Request a Quote?
Get Quote Live chat Email Phone
VM2300M Series Reflected and Transmitted Metallurgical Microscope are equipped with reflected and transmitted illuminator system, plan achromatic objectives with long working distance (no cover glass), wide field eyepieces and set polarizer device in trinocular. They can obtain clean image in the wide visual field, can be broadly applied in mine, colleges and scientific research department to observe internal configuration of material.
Trinocular, single diopter adjustment, inclined 30° and integrated analyzer, it can be connected to the camera.
Integrated field, aperture diaphragm and (Y, B, G, Ground glass) switching device. Puller polarizer can be circumrotated for 90°.
Outside field diaphragm, 6V 20W halogen lamp, brightness adjustable. Abbe condenser N.A.1.25 Rack & pinion adjustable. Equipped with B、G filter and frosted glass.
By adding the appurtenance such as CCD adapter, digital camera adapter and single-reverse digital camera adapter etc. They can achieve high clear observation mode of camera and vidicon.

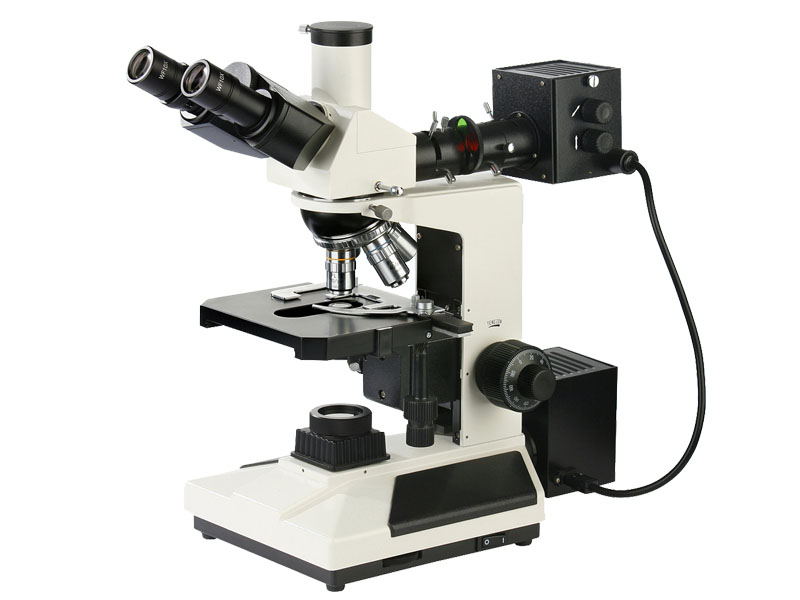

VM2300M Series
Head & Mechanical Stage of VM2300M Series
Epi-illumination & Transmitted illumination System of VM2300M Series
Diagram of VM2300M Series
Dimension of VM2300M Series
Specification for VM2300M Sereis | ||
|---|---|---|
Eyepiece | WF 10X (Φ18mm) | |
Eyepiece Tube | Trinocular, inclined 30°, Analyzer with field diaphragm to switch | |
Objective | VM2300MA | VM2300MB |
Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12 | Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12 | |
Plan achromatic objectives with long working distance (no cover glass) PL L10X/0.25 | Plan achromatic objectives with long working distance (no cover glass) PL L10X/0.25 | |
Plan achromatic objectives with long working distance (no cover glass) PL L40X/0.60 | Plan achromatic objectives with long working distance (no cover glass) PL L20X/0.40 | |
Plan achromatic objectives with long working distance (no cover glass) PL L60X/0.75 (Spring) | Plan achromatic objectives with long working distance (no cover glass) PL L40X/0.60 | |
Plan achromatic objectives with long working distance (no cover glass) PL L60X/0.75(Spring ) | ||
Focus System | Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing is 2.0μm | |
Nosepiece | Quadruple (Backward Ball bearing inner locating) | |
Quintuple (Backward Ball bearing inner locating) | ||
Vertical Illumination Unit | 6V 20W Halogen Lamp, adjustable control | |
Vertical illumination with field diaphragm, aperture diaphragm and polarizer, (R, B, G) filter and frosted filter | ||
Working Stage | Double layer mechanical (Size:160mmX140mm,moving range:75mmX50mm) | |
Vertical Illumination Unit | Abbe condenser NA.1.25 Rack & pinion adjustable | |
(B,G)filter and Frosted filter | ||
Collector for halogen lamp | ||
6V 20w halogen lamp, adjustable control. | ||
Accessories for VM2300M Series | |
|---|---|
Eyepiece | WF 16X(Φ11mm) |
Dividing 10X(Φ18mm) 0.1mm/Div | |
Objective | Plan achromatic objectives with long working distance (no cover glass) PL L50X/0.70 |
Plan achromatic objectives with long working distance (no cover glass) PL L80X/0.80 | |
Plan achromatic objectives with long working distance (no cover glass) PL L100X/0.85 (Spring) | |
Plan achromatic objectives (no cover glass) PL 100X/1.25 (Spring, Oil) | |
Filter | Yellow filter |
CCD Adapter | 0.4X |
0.5X | |
1X | |
0.5X (with dividing 0.1mm/Div) | |
Camera | DV-1 (with USB & Video Output) |
DV-2 (with USB Output) | |
DV-3 (with Video Output) | |
Photo Unit | 2.5X/4X Change over photograph attachment with 10X viewing eyepiece |
4X Focusing photograph attachment | |
MD Adapter | |
PK Adapter | |
Digital camera adapter | CANON (A610, A620, A630, A640) |
