VM4500 Non-transparent Object Research Metallurgical Microscope with Epi-illumination System
210 X 140mm, reasonable stage design
Features
- With plan achromatic objectives with long working distance (no cover glass) and wide-field eyepieces, can get clear pictures and wide view field.
- Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.
- 6V 20W halogen lamp, adjustable brightness.
- Trinocular, can switch to observe normally or to observe the polarize, can send 100% of light to the binocular eyepieces or to the top port
Tags: Compound MicroscopesMetallurgical Microscopes
Request a Quote?
Get Quote Live chat Email Phone
VM4500 Reflected Metallurgical Microscope is suitable to observe the surfaces of non-transparent object. It is equipped with vertical illuminator, plan achromatic objectives with long working distance (no cover glass), wide-field eyepieces and set polarizer device in trinocular. It provide clear and high-contrast picture, beautiful sculpt, convenient operation etc. It is the ideal instrument for research work in metallography, mineralogy, precision engineering, electronics, etc. It is suitable for scientific research, teaching demonstration in the colleges and factory.
Trinocular, single diopter adjustment, inclined 30° and integrated analyzer, it can be connected to the camera.
Integrated field, aperture diaphragm and (Y, B, G, Ground glass) switching device. Push-puller polarizer can be circumrotated for 360°.
By adding the appurtenance such as CCD adapter, digital camera adapter and single-reverse digital camera adapter etc. It can achieve high clear observation mode of camera and vidicon.

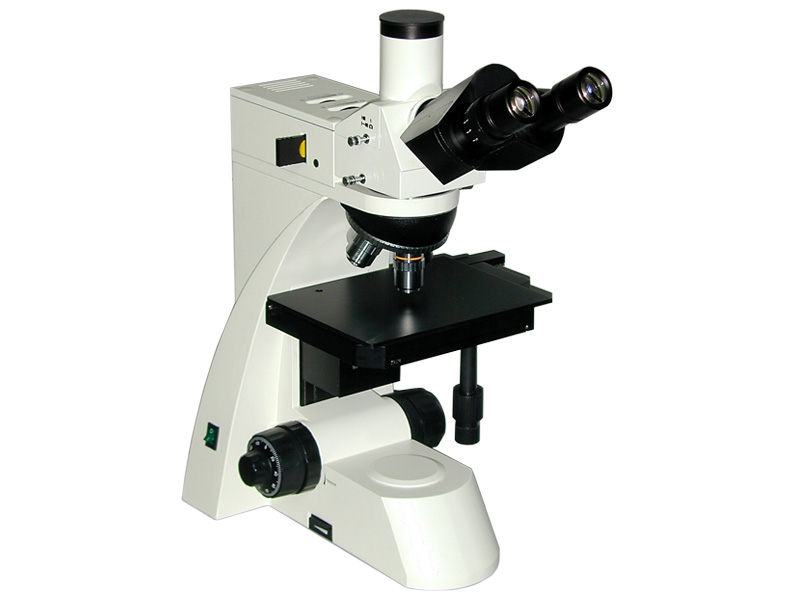

VM4500
Head & Mechanical Stage of VM4500
Epi-illumination & Focus System of VM4500
Diagram of VM4500

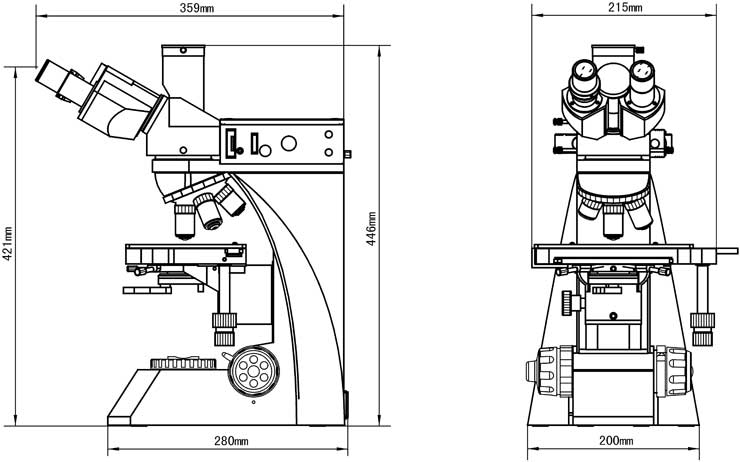

Dimension of VM4500
Specification for VM4500 | |
|---|---|
Eyepiece | WF 10X (Φ18mm) |
Eyepiece Tube | Trinocular, inclined 30°, Analyzer with field diaphragm to switch |
Objective | Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12 |
Plan achromatic objectives with long working distance (no cover glass) PL L10X/0.25 | |
Plan achromatic objectives with long working distance (no cover glass) PL L20X/0.40 | |
Plan achromatic objectives with long working distance (no cover glass) PL L50X/0.70 | |
Focus System | Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing is 2.0μm |
Nosepiece | Quadruple (Backward Ball bearing inner locating) |
Working Stage | Double layer mechanical (Size:210mmX140mm,moving range:63mmX50mm) |
Vertical Illumination Unit | 6V 20W Halogen Lamp, brightness control |
Vertical illumination With field diaphragm, aperture diaphragm and polarizer, (Y, B, G) filter and ground glass | |
Accessories for VM4500 | |
|---|---|
Eyepiece | WF 16X(Φ11mm) |
Dividing 10X(Φ18mm) 0.1mm/Div | |
Objective | Plan achromatic objectives with long working distance (no cover glass) PL L40X/0.60 |
Plan achromatic objectives with long working distance (no cover glass) PL L60X/0.75(Spring) | |
Plan achromatic objectives with long working distance (no cover glass) PL L80X/0.80 | |
Plan achromatic objectives with long working distance (no cover glass) PL L 100X/0.85 (Spring) | |
Plan achromatic objectives (no cover glass) PL 100X/1.25(Spring, oil) | |
Nosepiece | Quintuple Backward ball bearing inner locating |
CCD Adapter | 0.4X |
0.5X | |
1X | |
0.5X (with dividing 0.1mm/Div) | |
Camera | DV-1 (with USB & Video Output) |
DV-2 (with USB Output) | |
DV-3 (with Video Output) | |
Photo Unit | 2.5X/4X Change over photograph attachment with 10X viewing eyepiece |
4X Focusing photograph attachment | |
MD Adapter | |
PK Adapter | |
Digital camera adapter | CANON (A610, A620, A630, A640) |
