VM5500 100X High-efficient Checking Metallurgical Microscope with LED Illumination
Power supply unit: 85V~265V, 50/60HZ
Features
- Adopted with infinity optical system, adapter for 5X, 10X, 20X long working distance plan achromatic objective
- Equipped with high bright light, long working time LED Illumination, compact and safe, especislly suit for online inspection
- Pole Stand provides height adjustable for thicker specimen
- Dimension of base is 300 x 250mm, mechanical stage: 160 x 140mm
Tags: Compound MicroscopesMetallurgical Microscopes
Request a Quote?
Get Quote Live chat Email Phone
VM5500 Reflected Light Differential Interference Contrast Microscope is a high-capability price rate inspecting optical instrument. It adopts excellent infinity optics system, built-in high brightness optical instrument. It is provided with differential interference contrast observational function. Trinocular / Photography Optical Body. Reflects the ture reduction of visual observe, digital photography and microscopy technology integration, the observed interference image has a stronger sense of 3D. This unit is suitable for the microscopic morphology observation of non-transparent material surface, such as microscopic morphology of LCD conductive particles, it is the ideal instrument in quality inspection, structural analysis of precision manufacturing.
Trinocular can easily change in the observation and photography, inclined 30°, adapter for 5X, 10X, 20X plan achromatic objective, photoraphy out put suit for 0.5X, 1X CCD adapter.
Coaxial illumination using high brightness white LED. Brightness adjustable.
Equip high quality 10X DIC objectives and DIC observation system, in order to show the clear, porfile salint and 3D embossed image.
VM5500
Head & Mechanical Stage of VM5500

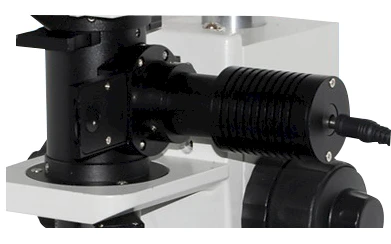

Epi-illumination of VM5500
Diagram of VM5500
Dimension of VM5500
Specification for VM5500 | |
|---|---|
Eyepiece | Achromatic Wide-field plan eyepiece |
SWF 10X (Φ22m) | |
Eyepiece interface: Ф30mm | |
Parfocal distance: 10mm | |
Total magnification | 100X (Standard Configure) |
Eyepiece Tube | Trinocular, inclined 30°, spectro rate: 8:2 (eyepiece: photography) |
Objective | Strain-free plan achromatic objective PL 10X/0.25 W.D. 20.2 |
Analyzer | Insert type，can be switch freely，the direction of polarization has preset, no use for adjust |
Polarizer | Insert type，can be switch freely，360°rotatable |
DIC Slider | DIC slider matching 5X/10X/20X objective，horizontal adjustable |
X-Y Stage | Double layer mechanism stage， size：180 X 145mm，moving range：35X 30 mm（X-Y） |
Vertical availability distance | Focus system available distance 133mm, observational specimen maximal thickness up to 130mm. |
Focus System | Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing is 2.0μm |
Illumination | Coaxial illumination using high brightness white LED. Brightness adjustable |
Main Power Supply | AC:85V~265V 50/60Hz，fuse specification：250V 3.0A |
Accessories for VM5500 | |
|---|---|
Plan Eyepiece | WF 15X (Φ11mm) |
WF 20X (Φ11mm) | |
Objective | Plan achromatic objectives PL 5X/0.10 WD:18.2mm |
Plan achromatic objectives PL 20X/0.40 WD: 8.8mm | |
CCD Adapter | 0.5X |
1X | |
2X | |
Camera | DV-2 (with USB Output) 1.3M/ 3M/ 5M /9M, with image analysis software |
