VM4550 Two-path Light Metallurgical Microscope with Polarizer Device
210 X 140mm double layer mechanical stage, optional appurtenance: CCD Adapter
Features
- With plan achromatic objectives with long working distance (no cover glass) and wide-field eyepieces, can get clear pictures and wide view field.
- Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing: 2μm.
- With vertical illuminator and transmitted illuminator, can observe surfacess of non-transparent object or transparent object.
- 6V 20W halogen lamp, adjustable brightness.
- Trinocular, can switch to observe normally or to observe the polarize, can send 100% of light to the binocular eyepieces or to the top port
Tags: Compound MicroscopesMetallurgical Microscopes
Request a Quote?
Get Quote Live chat Email Phone
VM4550 Reflected and Tansmitted Metallurgical Microscope is suitable to observe surfaces of non-transparent object or transparent object. It is equipped with vertical illuminator, plan achromatic objectives with long working distance (no cover glass), wide-field eyepieces and set polarizer device in trinocular. It provide clear and high-contrast image, beautiful sculpt,convenient control, etc. It is the ideal instruments in research work in biology, metallography, mineralogy, precision engineering, electronics, etc. It is suitable for scientific research, teaching demonstration in the colleges and factory.
Trinocular, single diopter adjustment, inclined 30° and integrated analyzer, it can be connected to the camera.
Integrated field, aperture diaphragm and (Y, B, G, Ground glass) switching device. Push-puller polarizer can be circumrotated for 360°.
By adding the appurtenance such as CCD adapter, digital camera adapter and single-reverse digital camera adapter etc. It can achieve high clear observation mode of camera and vidicon.

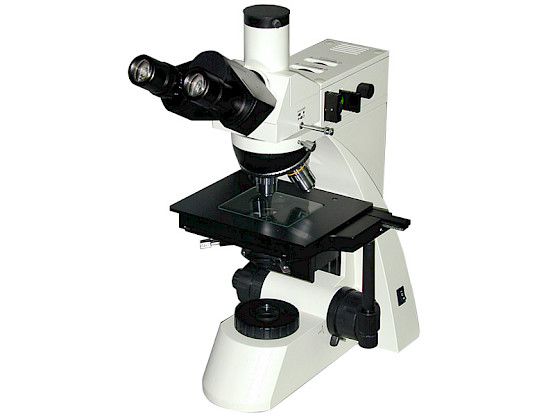

VM4550
Head & Mechanical Stage of VM4550
Epi-illumination & Transmitted Illumination System of VM4550
Diagram of VM4550

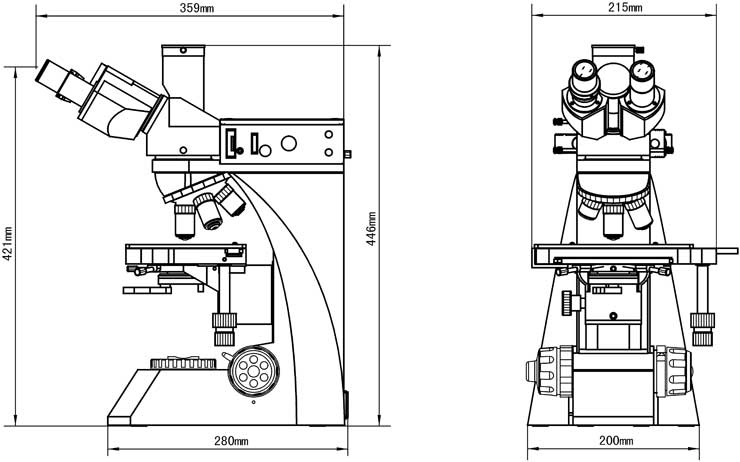

Dimension of VM4550
Specification for VM4550 | |
|---|---|
Eyepiece | WF 10X (Φ18mm) |
Eyepiece Tube | Trinocular, inclined 30°, Analyzer with field diaphragm to switch |
Objective | Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12 |
Plan achromatic objectives with long working distance (no cover glass) PL L10X/0.25 | |
Plan achromatic objectives with long working distance (no cover glass) PL L20X/0.40 | |
Plan achromatic objectives with long working distance (no cover glass) PL L50X/0.70 | |
Focus System | Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing is 2.0μm |
Nosepiece | Quadruple (Backward Ball bearing inner locating) |
Working Stage | Double layer mechanical (Size:210mmX140mm,moving range:63mmX50mm) |
Vertical Illumination Unit | 6V 20W Halogen Lamp, brightness adjustable |
Vertical illumination With field diaphragm, aperture diaphragm and polarizer, (Y, B, G) filter and ground glass | |
Vertical Illumination Unit | Abbe condenser NA.1.25 Rack & pinion adjustable |
Blue filter and Ground glass | |
Collector for illumination with halogen lamp (With field diaphragm ) | |
6V 20w, halogen lamp, adjustable brightness | |
Accessories for VM4550 | |
|---|---|
Eyepiece | WF 16X(Φ11mm) |
Dividing 10X(Φ18mm) 0.1mm/Div | |
Objective | Plan achromatic objectives with long working distance (no cover glass) PL L40X/0.60 |
Plan achromatic objectives with long working distance (no cover glass) PL L60X/0.75(Spring) | |
Plan achromatic objectives with long working distance (no cover glass) PL L80X/0.80 | |
Plan achromatic objectives with long working distance (no cover glass) PL L 100X/0.85 (Spring) | |
Plan achromatic objectives (no cover glass) PL 100X/1.25(Spring, oil) | |
Nosepiece | Quintuple Backward ball bearing inner locating |
Filter | Green filter |
Yellow filter | |
CCD Adapter | 0.4X |
0.5X | |
1X | |
0.5X (with dividing 0.1mm/Div) | |
Camera | DV-1 (with USB & Video Output) |
DV-2 (with USB Output) | |
DV-3 (with Video Output) | |
Photo Unit | 2.5X/4X Change over photograph attachment with 10X viewing eyepiece |
4X Focusing photograph attachment | |
MD Adapter | |
PK Adapter | |
Digital camera adapter | CANON (A610, A620, A630, A640) |
