HVS-200P integrated optical microscope with camera

HVS-200P

Continuous Zoom, multi-function instrument, HDMI & USB output

Features


  • Equipped with 11.6” display screen, HDMI output can be realized simultaneously, with measurement function
  • External mouse and TF card provide easy operation, TF card can store photos and videos
  • Dual screen output simultaneously, with HDMI display screen

Tags: Stereo MicroscopesIndustrial Inspection

Request a Quote?


Get Quote Live chat Email Phone

1/3” CMOS
0.7X-4.5X
1920*1080P@ 60FPS (2MP)
11.6” (Standard)

HVS-200P integrated microscope combined the traditional optical and electronic video technology. It is compact in size, one power cord connect the body and screen provides easy operation. Two partition LED lights with adjustable switch knob, and the inner & outer illumination control independently. The outer oblique light to observe more details. The inner coaxial light to observe more accurate image. Equipped with 11.6” HD Display Screen, 1920 * 1080p Resolution for clear and sharp image. The display screen can be titled back 90°, angle adjustable. Integrated measurement software, real-time photos, video, preview, settings, measurement etc. Dual screen output can be realized simultaneously. This kind of optical microscope is widely used in agriculture and forestry, archaeological identification, PC line inspection, textile industry, universities and research institutions etc.

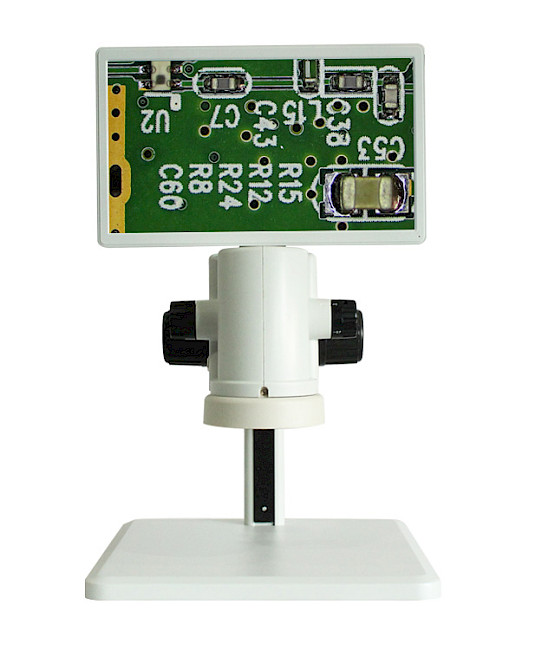

HVS-200PDifferent View of HVS-200P

HVS-200P & Different View of HVS-200P

Display Screen of HVS-200P

Display Screen of HVS-200P

Focusing System of HVS-200PFocusing System of HVS-200P

Focusing System of HVS-200P

Two Patition LED Lights of HVS-200P

Two Patition LED Lights of HVS-200P

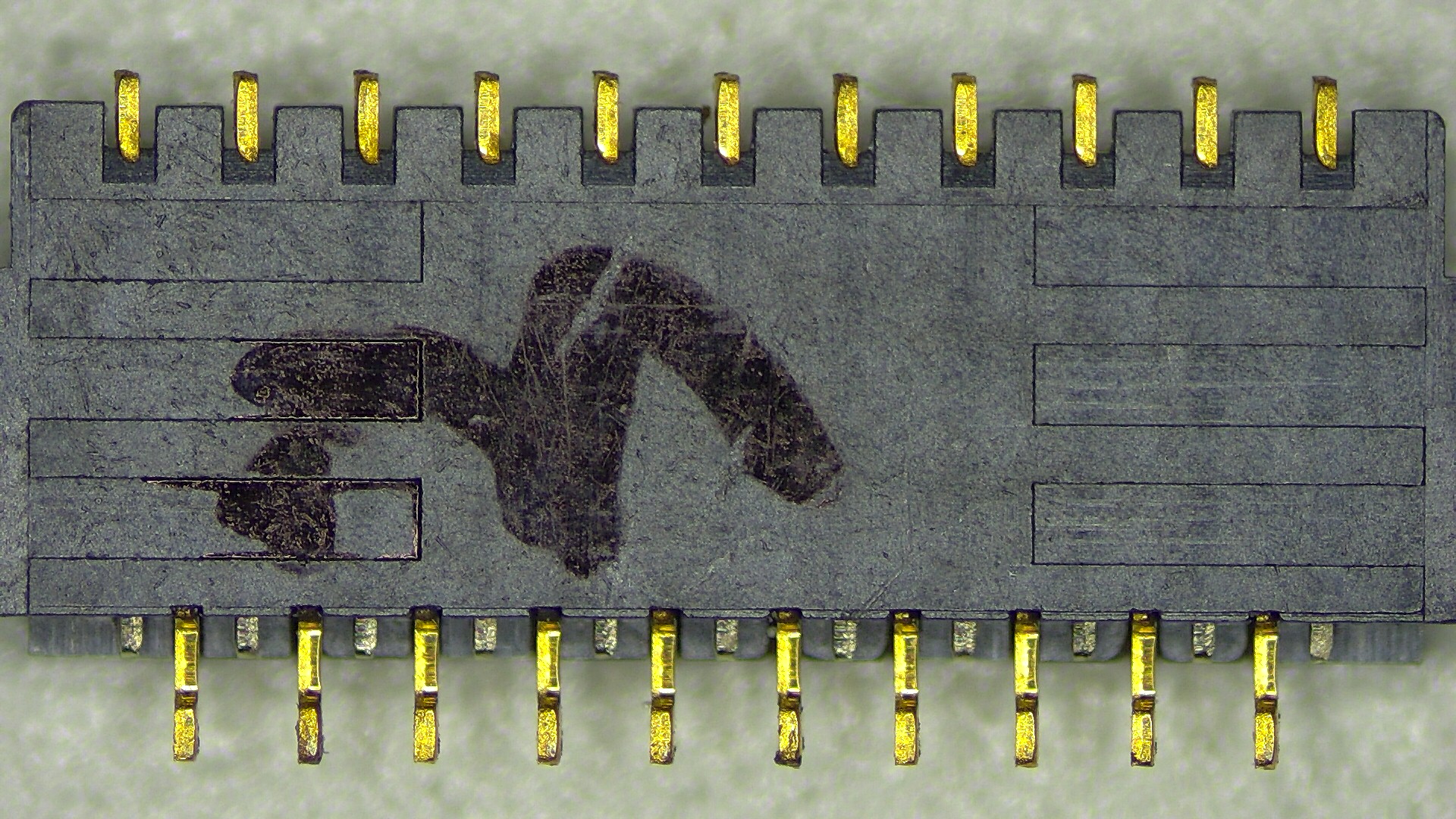

Sample Photos Captured with HVS-200P

Sample PhotoSample Photo

Sample PhotoSample Photo

Specification for HVS-200P

Magnification

17X-110X

objective

Continuous Zoom 0.7X-4.5X, ratio: 6.4:1

Sensor

1/3” CMOS

Resolution

1920*1080P@ 60FPS (2MP)

Output interface

HDMIUSB TF Card

Display Screen Size

11.6” (Standard)/21.5" (Optional)

Function

real-time observe, photos, video, preview, measurement etc.

Illumination

Two partition LED Light

Display Screen

Screen as standard, HDMI interface can be connected to various sizes of screen

Power Supply

External wide voltage adapter, input 100V-240V-AC50/60Hz, output DC12V2A

Base stand

Arm, large plate stand, working distance: 100mm

Auxiliary Lens (optional)

2X/W.D.: 70MM (optional)

0.5X/W.D.: 170MM (optional)
