VMF15A Halogen Lamp Inspection & Biological Fluorescence Microscope
40X~1000X, 135mmX125mm Double Layer Mechanical Stage
Features
- With wide field eyepieces, and achromatic objectives, the field of view is widely and clear
- Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm
- 6V 20W halogen lamp with brightness control
Tags: Compound MicroscopesFluorescence Microscope
Request a Quote?
Get Quote Live chat Email Phone
VMF15A Reflected fluorescence microscope model is used for fluorescence microscopy and transmitted bright field microscopy observation. It is the ideal instrument in sediment in sedimentary rock, inspection of impurity of semiconductor, environmental protection and microchemistry etc. It is the ideal instrument in biology, cytology, oncology, genetics, immunology etc. It also can be used in scientific research, universities, medical treatment, epidemic prevention etc.
Trinocular can be connected to the camera. 10X wide field plan eyepiece, field Φ18mm, can provide an expanse and smooth space for observation.
100W mercury lamp can provide ample illumiantion for fluorescence observation. The illumination system with 6V 20W halogen lamp (brightness adjustable) can provide clear and bright image for light field observation, but also for phase contrast observation.
By adding the appurtenance of phase contrast unit and camera unit, it can spread to mainfold modes for observation that satisfy the need to different research work.

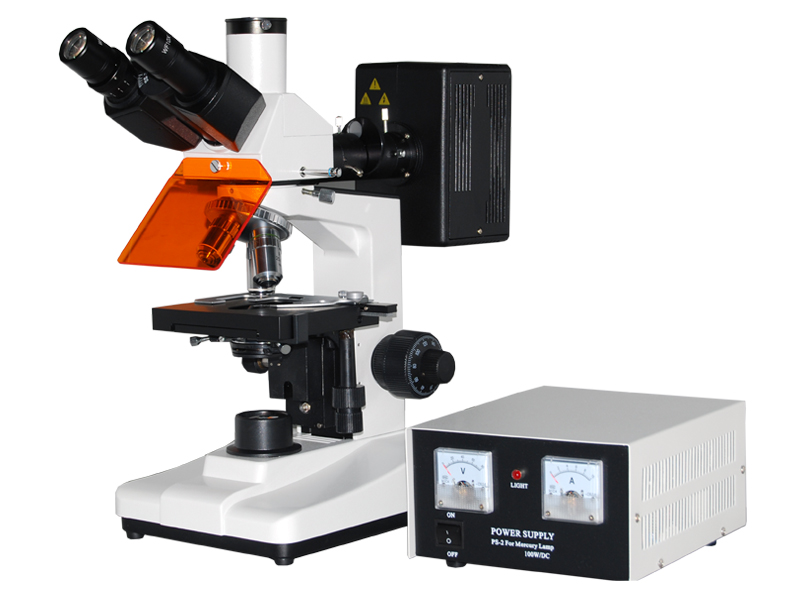

VMF15A

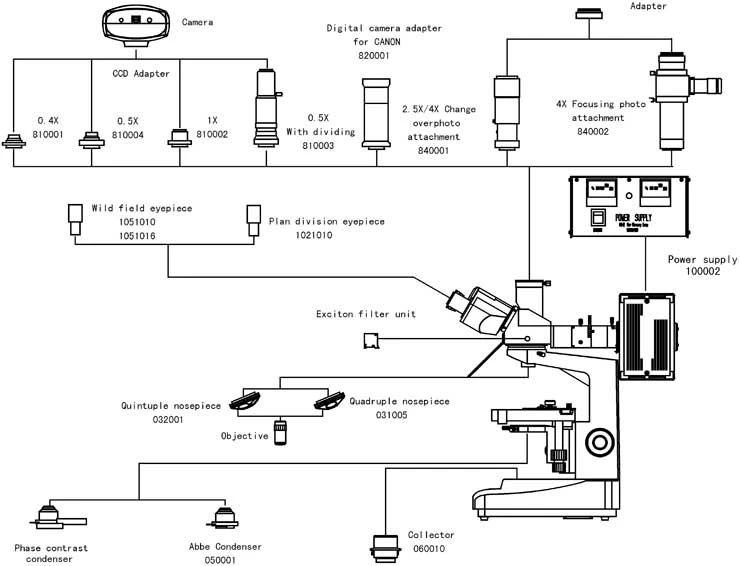

Diagram of VMF15A

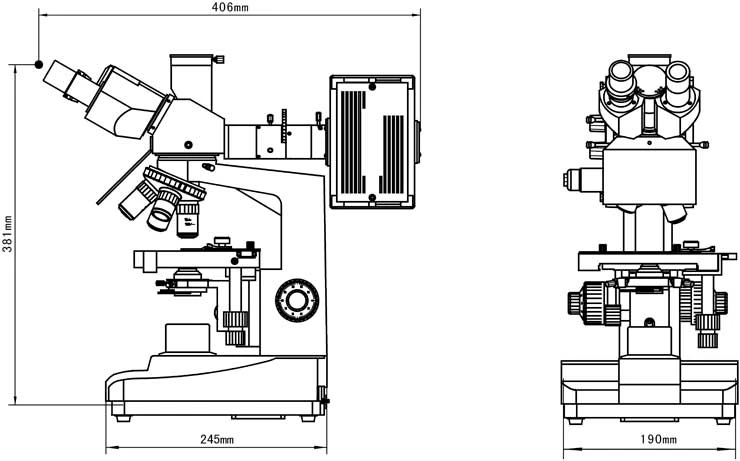

Dimension of VMF15A
Specification for VMF15A | |
|---|---|
Eyepiece | WF 10X (Φ18mm) |
Eyepiece Tube | Trinocular, inclined 30° |
Objective | Achromatic 4X /0.10 |
Achromatic 10X /0.25 | |
Achromatic 100X /1.25(Spring, Oil) | |
Fluorescence 25X /0.65 | |
Focus System | Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing is 2.0μm |
Nosepiece | Quadruple (Backward ball bearing inner locating) |
Working Stage | Double layer mechanical (Size: 135mmX125mm, moving range:75mmX35mm) |
Abbe Condenser | N.A.1.25 Rack & pinion adjustable |
Filter | Blue filter |
Frosted filter | |
Collector | For Halogen Lamp |
Light Source | 6V 20W Halogen Lamp, adjustable brightness |
Reflected Fluorescence System | Mercury Lamp House 100W/DC |
Power Supply Unit: AV: 110V or 220V | |
Fluorescence filter system B Exciton Wavelength: 450~490nm | |
Fluorescence filter system G Exciton Wavelength: 495~555nm | |
Accessories for VMF15A | ||
|---|---|---|
Eyepiece | WF 16X (Φ11mm) | |
Dividing 10X(Φ18mm) 0.1mm/Div | ||
Objective | Fluorescence objectives FL 40X /1.00 (Spring, Glycerin) | |
Fluorescence objectives FL 100X /1.25 (Spring, Glycerin) | ||
Nosepiece | Quintuple (Backward ball bearing inner locating) | |
Filter | Yellow filte | |
Green filter | ||
Fluorescence Power Supply | 100W Fluorescence Power Supply (Wide Voltage range and Constant Power and Calculagraph) | |
Reflected Fluorescence System | Fluorescence filter system UV exciton wavelength: 320~380nm | |
Fluorescence filter system V exciton wavelength: 380~415nm | ||
Phase Contrast Unit | Eyepiece | Centering Telescope |
Objective | Phase Contrast Plan Achromatic 10X /0.25 PHP | |
Phase Contrast Plan Achromatic 20X /0.40 PHP | ||
Phase Contrast Plan Achromatic 40X /0.65 PHP (Spring) | ||
Phase Contrast Plan Achromatic 100X /1.25 PHP (Spring, Oil) | ||
(PH-1) Turnplate phase contrast condenser | ||
(PH-2) Turnplate phase contrast condenser | ||
Flashboard phase contrast condenser | ||
Pull board phase contrast condenser | ||
CCD Adapter | 0.4X | |
0.5X | ||
1X | ||
0.5X (with dividing 0.1mm/Div) | ||
Camera | DV-1 (With USB & Video Output) | |
DV-2 (With USB Output) | ||
DC-3 (With Video Output) | ||
Digital camera adapter | CANON Digital Camera Adapter (A610, A620, A630, A640) | |
Photograph Unit | 2.5X/4X Change over photograph attachment with 10X viewing eyepiece | |
4X Focusing photograph attachment | ||
MD Adapter | ||
PK Adapter | ||
