VMB100I 100X-400X Inverted Transparent Research Biological Microscope
200 x 152mm, Living specimen observe, condenser & phase contrast unit
Features
- With wide field eyepieces, long working distance plan achromatic objectives, the field of view is widely and clear
- Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm
- 6V 30W Halogen lamp with brightness control
Tags: Compound MicroscopesBiological MicroscopesInverted Microscopes
Request a Quote?
Get Quote Live chat Email Phone
VMB100I Inverted microscope is equipped with wide field eyepieces, long working distance plan achromatic objectives, long working distance condenser and phase contrast unit. It can be observed transparent and unfinished living specimen in culture bottle or culture utensil. It is the ideal instrument suitable for research of living specimen structure, liquid, deposits and so on. It also can be used in research institutes, universities, medical treatment, agriculture and animal husbandry etc.
Trinocular can be connected to the camera. 10X wide field plan eyepiece, field Φ20mm, can provide an expanse and smooth space for observation.
Double layer mechanical stage, move range: longitudianl 30mm, transverse 75mm. Equip three kind of stage board enable to fill the requirements that observe in the different culture dish.
Plug-in phase contrast condenser working distance: 30mm, highness adjustable. Optional long working distance phase contrast condenser. Working distance is 50mm.
6V 30W Halogen lamp can make up the difference of halogen by adjustable the spacial position. Fully taken into account the cooling effect of illumination system so that the surface temperature of lamp house is lower, the operation is safer.
Equip high quality phase contrast plan objective and phase contrast condenser. There are two mode phase contrast condenser: plug-in type and puller type.
VMB100I
Head & Mechanical Stsge of VMB100I

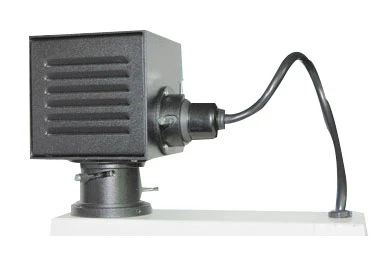

Condenser System & Illumination System of VMB100I
Diagram of VMB100I:
Dimension of VMB100I:
Digital Camera Photo:
Bright Observe
Phase Observe
Specification for VMB100I | |
|---|---|
Eyepiece | WF 10X (Φ20mm) |
Eyepiece Tube | Trinocular, inclined 30°, 100% image light for photography capable |
Objective | Long Working Distance plan achromatic PL L 10X/0.25 |
Long Working Distance plan achromatic PL L 25X/0.40 | |
Long Working Distance plan achromatic PL L 40X/0.60 | |
Long Working Distance plan achromatic phase contrast PL L 10X/0.25 PHP | |
Focus System | Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing is 2.0μm |
Nosepiece | Quadruple (Backward Ball bearing inner locating) |
Working Stage | Double layer mechanical (Size:200mmX152mm,moving range:75mmX30mm) |
Shelf of specimen | Match to install µ68mm or 77mm x 33mm culture utensil |
Match to install µ68mm culture utensil | |
Filter | Blue filter |
Green filter | |
Frosted filter | |
Impellent style phase contrast unit | Centering telescope |
10X impellent style phase plate | |
Condenser rack & pinion adjustable, NA=0.4, working distance: 30mm | |
Light Source | 6V 20W Halogen lamp with brightness control |
Accessories for VMB100I | ||
|---|---|---|
Eyepiece | WF 16X(Φ11mm) | |
Dividing 10X(Φ20mm) 0.1mm/Div | ||
Nosepiece | Quintuple (Ball bearing inner locating) | |
Condenser | Ultra long working distance, W.D.: 70mm | |
Filter | Yellow filter | |
Impellent style phase contrast unit | Objectives | Long Working Distance plan achromatic phase contrast PL L 25X/0.40 PHP |
Long Working Distance plan achromatic phase contrast PL L 40X/0.60 PHP | ||
Impellent phase plate | 25X | |
40X | ||
Sliding phase contrast unit | Objectives | Long Working Distance plan achromatic phase contrast PL L 10X/0.25 PHP2 |
Long Working Distance plan achromatic phase contrast PL L 25X/0.40 PHP2 | ||
Long Working Distance plan achromatic phase contrast PL L 40X/0.60 PHP2 | ||
Sliding phase plate | 10X | |
25X/40X | ||
Condenser rack & pinion adjustable, NA=0.4, working distance: 55mm | ||
CCD adapter | 0.4X | |
0.5X | ||
1X | ||
0.5X with dividing 0.1mm/Div | ||
Camera | DV-1 (with USB & Video output) | |
DV-2 (with USB output) | ||
DV-3 (with Video output) | ||
Photo Unit | 2.5X/4X Change over photograph attachment with 10X viewing eyepiece | |
4X Focusing photograph attachment | ||
MD Adapter | ||
PK Adapter | ||
Digital camera adapter | CANON digital camera adapter (A610, A620, A630, A640) | |
