VMB300IDIC 100X-400X Binocular/ Trinocular Inverted DIC-Biological Microscope with 5W LED Illumination

VMB300IDIC Inverted Pase Contrast Biological Microscope is equipped excellent UIS optical system including long working distance objective and wide field plan eyepieces. It is a new multi-function optical instrument. Compact and steady main fram body is embodiment for the shock resistance. The disassembly type mechanical moving stage enable to fill the requirements that observe in the different culture dish. Adopt coaxial no rack & pinion focusing system. The enable turning out or into condenser system with differential interference contrast unit provides various observation functions, such as transmitted DIC Phase Contrast Observe. The modular design make easy and convenient operation. This instrument suits for microscopic observation of transparent tissue. It is widely used in scientific research, university and college, medical treatment, inspection and quarantine, agriculture and husbandry etc.

The gemel mode binocular is inclined 45°. The operator cervix and shoulder are released from tired in period of time keeping bow or head-up. The eyepiece field of view number is Φ22mm and eyepath can be added. Trinocular can be connected to camera, 100% image light for photography capable.

The transparent mechanical stage adopts coaxial high-strength steel wire driver. There are three mode culture dish holder for selection.

Integrated illumination can make up the difference of halogens by adjusting the spacial position. Fully taken into account the cooling effect of illumination system so that the surface tenperature of lamp house is lower, the operation is safer. Simpler and quicker way to replace the bulb without any tools.

Equip high quality phase contrast condenser.

The photographic observation output is setting up on the back of main body frame, so that the accessories of camera don’t cause interference to eyepiece observation. Microphotography in 100% light flux, suits for low illuminance microphotography.

VMB300IDIC

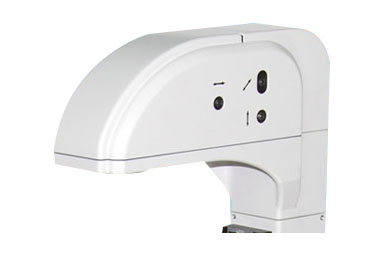

Head & Mechanical Stage of VMB300IDIC

Illumination & Condenser System of VMB300IDIC

Photography Unit of VMB300IDIC

Dimension of VMB300IDIC

Digital Camera Photos:

DIC Phase Contrast Observe
