POL1810 Trinocular Scentific Research Reflected & Transmitted Polarizing Microscope


50X~600X, 6V30W halogen


  • Adopt infinity optical system and modularization function design
  • Infinity long W.D plan objectives, the field of view is widely and clear.
  • Wide-field plan eyepieces: field number Ф22mm.
  • Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.
  • Polarizing unit can be move out or into optical path, polarizer and analyzer can be rotated from 0°to 360°
  • Rotatable stage, 360° graduated in 1° increments, minimum retardation resolution 6' center adjustable and with tightener Stage vertical effective movement up to 30mm.
  • Wide voltage range power supply (85-265V 50/60Hz), 6V30W halogen lamp, brightness adjustable.
  • Trinocular can be observation for eyepieces and microphotography in 100% light flux, suits for low illuminance microphotography

Tags: Compound MicroscopesPolarizing Microscopes

Request a Quote?

Get Quote Live chat Email Phone

WF 10X (Φ22mm)
inclined 30˚
6V30W halogen

POL1810 Transmitted & Reflected Polarizing Microscope is utilized polarizing light to observe and research the matter which have double refraction features, the user can make single polarizing observation, orthogonal observation, conoscope observation. It is applied in geology, chemicals, physic and leechdom fields, widely used to observe the crystal of liquid macromolecule polymer, biomedical polymer and liquid crystal. It is the ideal instrument for scientific research and universities teaching demonstration.

Trinocular, single diopteradjustment, inclined 30°, can be connected to the camera. 10X wide field plan eyepiece, field Φ22mm, can provide expanse and smooth observation space. Another eyepiece is 10X division eyepiece used for proofreading the centre.

The intermediate attachment includes the impellent style of analyer (360° retatable with scale and fine nonius) which can be taken off from the light path and the impellent style of bertrand lens (centeradjustable). It can be added λ compensator, λ/4 compensator or quarts wedge compensator. Strain-free plan achromatic objective (no cover glass) and center adjustable.

Rotund rotatable stage, Φ150mm diameter, 360° graduated (in 1° increments), miniunm, retardation resolution 6’, center adjustable and with tightener.

6V 30W halogen lamp, brightness adjustable. Polarizer, 360° rotatable, having 0, 90, 180, 270 four scale, set under the aperture disphragm, can take down from the optics body.

6V 30W halogen lamp, brightness adjustable. Polarizer, 360° rotatable, analyzer can be ratatable 360° with scale and minium vernier. Integrated field and aperture diaphragm.

By adding the appurtenance such as CCD adapter, digital camera adapter and single-reverse digital camera adapter etc. It can achieve high clear observation mode of camera and vidicon.



Head of POL1810Stage

Head & Stage of POL1810

Transmitted Illumination System of POL1810Reflected Illumination of POL1810

Transmitted & Reflected Illumination System of POL1810

Diagram of POL1810

Diagram of POL1810

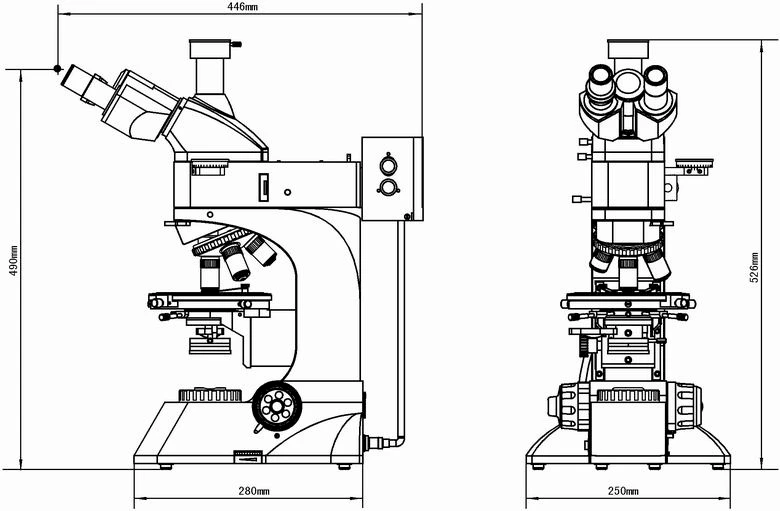

Dimension of POL1810

Dimension of POL1810

Specification for POL1810


WF 10X (Φ22mm)

Dividing eyepiece (Φ22mm) 0.10mm/Div

Eyepiece Tube

Trinocular is inclined 30˚ and enable to shoot in 100% light flux


Strain-free plan achromatic objective (no cover glass)

PL L5X/0.12 (Work distance)26.1 mm

PL L10X/0.25 (Work distance)20.2 mm

PL L40X/0.60£¨spring£©(Work distance)3.98 mm

PL L60X/0.70£¨spring£©(Work distance)3.18 mm



Reflected Illumination System

6V30W halogen, brightness enable control.

Polarizer can be rotated 360°.

Analyzer can be rotatable 360° with scale and minimum vernier

Integrated field and aperture diaphragm.


Quadruple (the center of nosepiece is adjustable )

Focus System

Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing is 2.0μm

Intermediate attachment

Puller type bertrand lens


λ , λ/4 and quarts wedge compensator

Accessory for POL1810

Infinity Objective

Strain-free plan achromatic objective (no cover glass)

PL L20X/0.40 (Work distance)8.8mm

PL L50X/0.70 (spring) (Work distance)3.68mm

PL L80X/0.80 (spring) (Work distance)1.25 mm

PL L100X/0.85 (Spring )(Work distance)0.4 mm


Quintuple (Backward ball bearing inner locating )

Slide moving holder

Moving range: 30mm x 25mm

CCD Adapter




0.5X with dividing 0.1mm/Div


DV-1 Video output£¨380/520 TV line£© USB output £¨0.42 M pixel£©

DV-2 With USB output £¨1.3M,3.0M,5.0M ,10.0Mpixel£©

DV-3 With video output£¨380/520 TV line£©

Digital Camera adapter

CANON(A570,A610,A620,A630,A640,A650,EF) NIKON( F)
