POL1500 Trinocular Standard Polarizing Microscope with Transmitted Halogen Lamp
40X~600X, Transmitted light: 6V 20W halogen lamp, brightness enable control
Features
- Transmitted illumination system
- Equipped with strain-free plan objectives (center adjustable) and wide field eyepiece
- Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.
- Rotatable stage, 360° graduated in 1° increments, minimum retardation resolution 6' center adjustable and with tightener stage vertical effective movement up to 30mm
Tags: Compound MicroscopesPolarizing Microscopes
Request a Quote?
Get Quote Live chat Email Phone
POL1500 Transmitted Polarization microscope is utilized polarize light to observe and research the matter which have double refraction features, the user can make single polarizing observation, orthoscopic observation, conescopic observation. It is applied in geology, chemicals, physic and leechdom fields. It is also widely used to observe the crystal of liquid macromolecule polymer, biomedical polymer and liquid crystal. It is the ideal instruments for scientific research and universities teaching demo.
Trinocular, single diopter adjustment, inclined 30°, can send 100% of the image light to top photography port and also can be connected to the camera. 10X wide field plan eyepiece, field Φ18 mm, can provide expanse and smooth observation space.
The intermediate attachment includes the impellent style of analyer (360° rotatable with scale and fine nonius) which can be taken off from the light path and the impellent style of bertrand lens (center adjustable). It can be added λ compensator, λ/4 compensator or quarts wedge compensator.
Objective, strain-free plan achromatic objective (with or without cover glass), center adjustable, can ensure the centre of objective and the rotatable stage completeness superposition.
Rotund rotatable stage, Φ150mm diameter, 360° graduated (in 1° increments), miniunm, retardation resolution 6’, center adjustable and with tightener.
Polarizer, 360° rotatable, having 0, 90 180, 270 four scale, is set under the aperture disphragm
The illumination system with 6V 20W halogen lamp (brightness adjustable) can provide clear and bright image. The system also includes the collector with field disphragm.
By adding the appurtenance such as CCD adapter, digital camera adapter and single-reverse digital camera adapter etc. It can achieve high clear observation mode of camera and vidicon.
POL1500
Head & Stage of POL1500
Intermediate Attachment & Nosepiece of POL1500

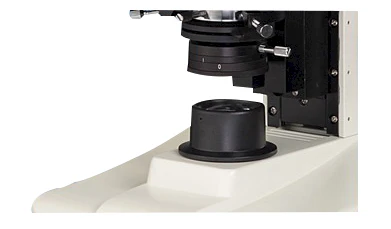

Transmitted Illumination of POL1500
Diagram of POL1500
Dimension of POL1500
Digital Camera Photos:
Polarized Observe
Specification for POL1500 | ||
|---|---|---|
Eyepiece | WF 10X (Φ18mm) | |
Dividing eyepiece 10X (Φ18mm) 0.10mm/Div | ||
Eyepiece Tube | Trinocular, inclined 30˚ and can send 100% of the image light to top photography port | |
Objective (center adjustable) | Strain-free plan achromatic objective (cover glass:0.17mm) PL 4X/0.10 | |
Strain-free plan achromatic objective (cover glass:0.17mm)PL 10X/0.25 | ||
Strain-free plan achromatic objective(cover glass:0.17mm) PL 40X/0.65 (spring) | ||
Strain-free plan achromatic objective(cover glass:0.17mm) PL 60X/0.85 (spring) | ||
Transmitted Illumination System | Polarizer | 360°rotatable, have 0,90,180,270 four scale |
Collector | For halogen lamp illumination | |
Illumination | 6V 20w, halogen lamp, adjustable brightness | |
Abbe Condenser | N.A. 1.25 Rack & pinion adjustable | |
Nosepiece | Quadruple (Frontward ball bearing inner locating) | |
Stage | Rotatable stage, Diameter 150mm, 360° graduated (in 1° increments), minimum retardation resolution 6' center adjustable and with tightener | |
Focus System | Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing is 2.0μm | |
Intermediate attachment | Built-in analyzer, can switch to normal observe or polarizing observe freely ,90° rotatable with scale, minimum retardation resolution 12' | |
Bertrand lens , impellent style , center adjustable | ||
λ , λ/4 coompensator and quarts wedge compensator | ||
Accessory for POL1500 | |
|---|---|
Eyepiece | WF 16X (Φ11mm) |
Objective (center adjustable) | Strain-free plan achromatic objective(cover glass:0.17mm) PL 20X/0.40 |
Strain-free plan achromatic objective(cover glass:0.17mm) PL 100X/1.25 (Oil ,spring) | |
Strain-free plan achromatic objective(no cover glass) PL L 20X/0.40 | |
Strain-free plan achromatic objective(no cover glass) PL L 50X/0.70 | |
Strain-free plan achromatic objective(no cover glass) PL L 80X/0.80 | |
Strain-free plan achromatic objective (Dry) (no cover glass) PL L 100X/0.85 (Spring) | |
Nosepiece | Quintuple (Frontward ball bearing inner locating)£¬adjust the center of objective |
Slide moving holder | Moving range: 30mm x 25mm |
CCD Adapter | 0.4X |
0.5X | |
1X | |
0.5X with dividing 0.1mm/Div | |
Camera | DV-1 With USB & video output |
DV-2 With USB output | |
DV-3 With video output | |
Photo Unit | 2.5X/4X Change over photograph attachment with 10X viewing eyepiece |
4X Focusing photograph attachment | |
MD Adapter | |
PK Adapter | |
Digital Camera adapter | CANON(A610, A620, A630, A640) |
