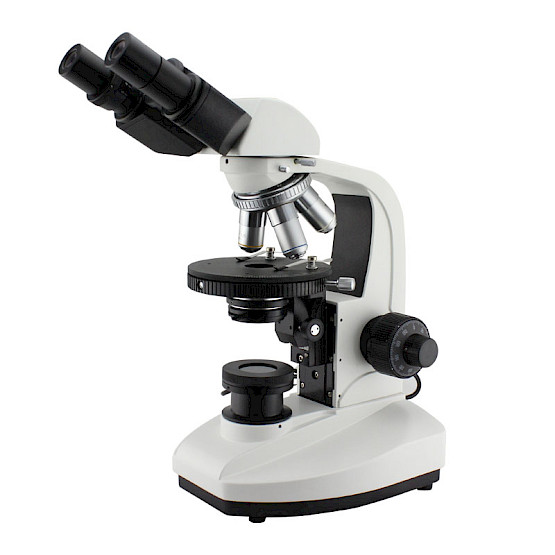

POL1100 Series Polarizing Microscope with Transmitted Halogen Lamp & Abbe Condenser
40X~1000X, Observe the fine frame of the biochemistry salt crystal
Features
- Equipped with achromatic objectives and wide field eyepiece
- Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm
- Rotatable stage, diameter 120mm/ Duoble layer mechanical stage, size: 135mm x 125mm
- Abbe Condenser N.A. 1.25, Rack & Pinion adjustable
Tags: Compound MicroscopesPolarizing Microscopes
Request a Quote?
Get Quote Live chat Email Phone
POL1100 Series polarization microscopes are utilized polarize light to observe and research the polarize characteristic of the matter which have the double refraction .They can be used to medical inspection, such as the frame detail of the nerve fibre, the animal muscle, the plant fibre and the crystal of the tooth, bone, hair and alive cell etc. It can be observe the fine frame of the biochemistry salt crystal that the fine frame can't be observe for nature light.
10X wide field plan eyepiece, field Φ18 mm, can provide expanse and smooth observation space.
POL1100 Series
Diagram of POL1100
Dimension of POL1100
Specification for POL1100 Series | |||
|---|---|---|---|
Model | POL1100 | POL1100A | |
Eyepiece | WF 10X (Φ18mm) | ||
Eyepiece Tube | Binocular, inclined 30˚ | Trinocular, inclined 30˚ | |
Objective | Achromatic objectives 4X/0.10 | ||
Achromatic objectives 10X/0.25 | |||
Achromatic objectives 40X/0.65 (Spring) | |||
Achromatic objectives 100X/1.25(Spring, oil) | |||
Nosepiece | Quadruple (Backward ball bearing inner locating) | ||
Polarization Analyzer | Sliding | ||
Stage | Rotatable stage(Diameter: 120mm) | Double layer mechanical stage with (100mm) rotatable stage (Size：135mmX125mm Moving range：75mmX35mm) | |
Focus System | Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing is 2.0μm | ||
Abbe Condenser | NA.1.25 Rack & pinion adjustable | ||
Filter | Blue | ||
Frosted | |||
Polarizer | 360° rotatable stage | ||
Collector | For illumination with halogen lamp With field diaphragm | ||
Illumination Unit | With polarizer,6V 20w, halogen lamp, adjustable brightness | ||
Accessory for POL1100 | |
|---|---|
Eyepiece | WF 16X (Φ11mm) |
Dividing 10X(Φ18mm) 0.1mm/Div | |
Eyepiece Tube | Monocular , 360˚rotatable, inclination of 30˚ |
Trinocular, ,inclination of 30˚,observe and photograph at the same time | |
Nosepiece | Quintuple(Backward ball bearing inner locating) |
Filter | Green filter |
Yellow filter | |
CCD Adapter | 0.4X |
0.5X | |
1X | |
0.5X with dividing 0.1mm/Div | |
Camera | DV-1 With USB & video output |
DV-2 With USB output | |
DV-3 With video output | |
Photo Unit | 2.5X/4X Change over photograph attachment with 10X viewing eyepiece |
4X Focusing photograph attachment | |
MD Adapter | |
PK Adapter | |
Digital Camera adapter | CANON(A610, A620, A630, A640) |
